Edbak meny stativ for tak, 3x60"

Landskap,600x400VESA,210kg maks

Varenr: MBV3155-L
Edbak meny stativ for tak, 3x60" Landskap,600x400VESA,210kg maks Edbak meny stativ for tak, 3x60" Landskap,600x400VESA,210kg maks
eks. mva

MBV3155-L

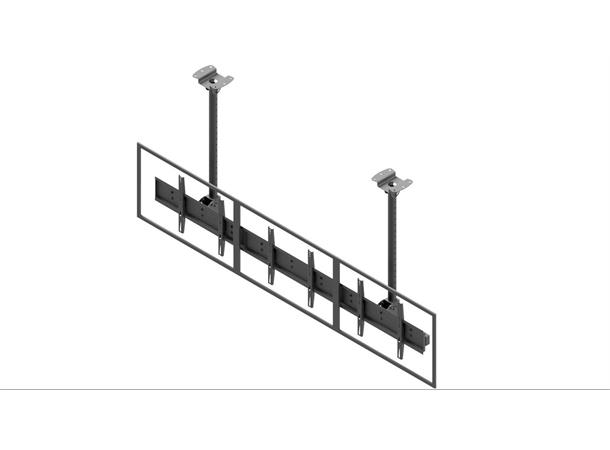

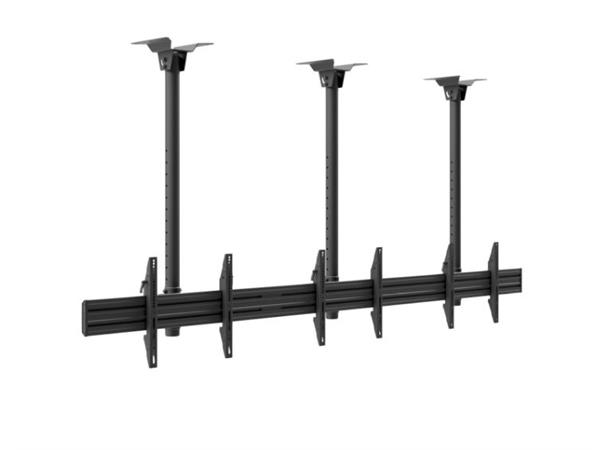

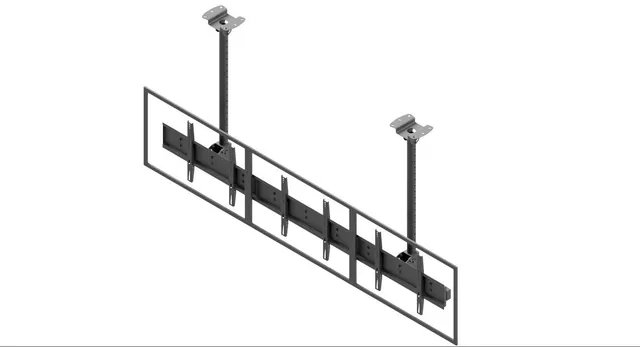

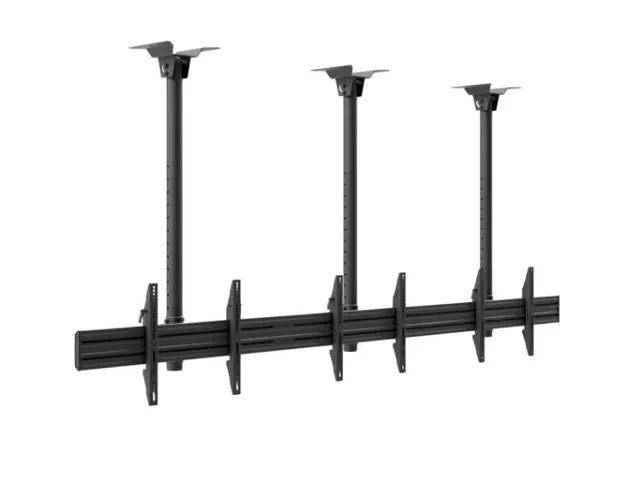

Menu Board Ceiling Mount for Three 50?-57? Screens, landscape

MBV3155-L is a robust and accurately manufactured ceiling mount for three screens. It features a slim structure and simple design. Stepwise height adjustment ensures accurate fastening, and the integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. Equipped with safety devices that protect the screen against falling, it is perfect for hotels, restaurants and public buildings. The MBV3155-L mount is a perfect solution for those who value aesthetics and comfort during use.

  • Telescopic mount
  • Stepwise height adjustment
  • Screen load-carrying plate made of aluminum
  • Quick and simple installation
  • Integrated cable routing system
  • Universal VESA-compliant mounting range
MBV3155-L Product Card
MBV3155-L Technical Drawings
MBV3155-L Installation Manual



Product dimensionsW: 250 mm D: 3320 mm H: 1363 mm

(W: 9,84? D: 130,71? H: 53,66?)

Product weight46 kg (101 lb)
Max. distance from mounting surface1135 mm (44,68?)
Min. distance from mounting surface535 mm (21,06?)
Max. mounting pattern658 mm x 417,5 mm
Min. mounting pattern50 mm x 50 mm



IndexMBV3155-L
CategoryMenu Board Ceiling Mounts
Product groupVideo Wall & Menu Board Mounts
ColorBlack
WarrantyLimited 5-year’s
Number of screens3
Minimum screen size50?
Maximum screen size57?
Maximum load210 kg
Forward tilting+18°
VESA Mounting Compatibility

100×100 up to 600×400
