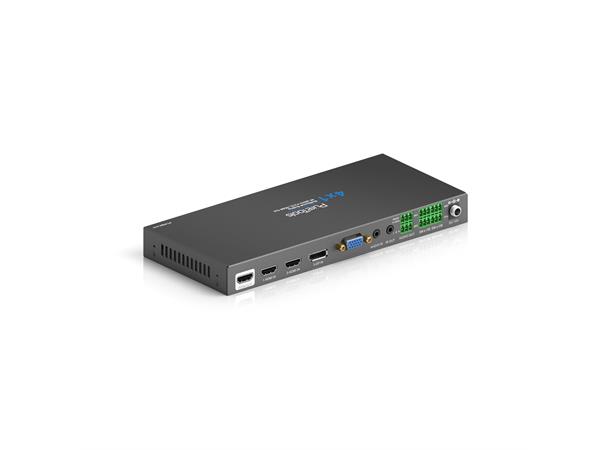

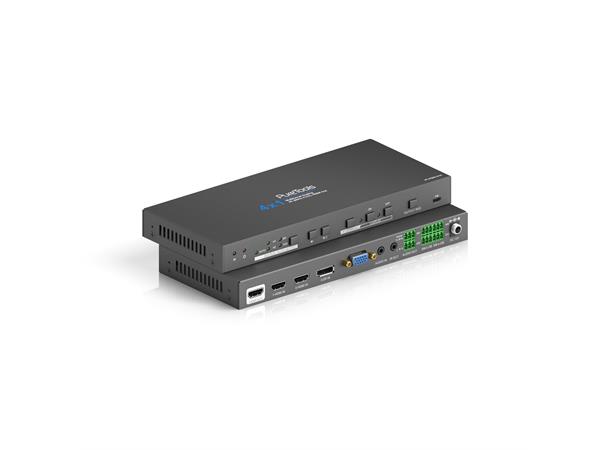

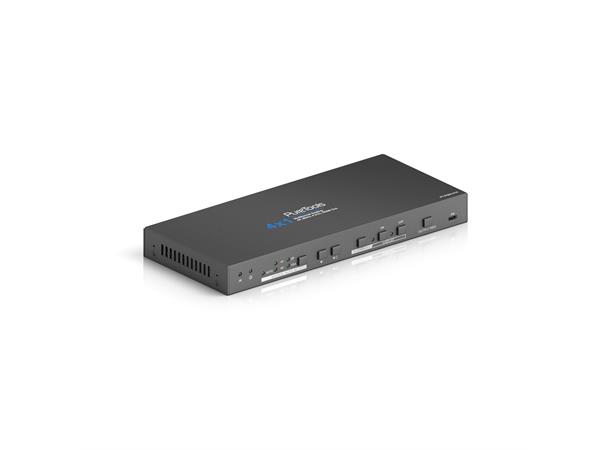

PureTools 4x1 4K Presentation

Switcher with Scaler

Varenr: PT-PSW-41H
PureTools 4x1 4K Presentation Switcher with Scaler PureTools 4x1 4K Presentation Switcher with Scaler PureTools 4x1 4K Presentation Switcher with Scaler PureTools 4x1 4K Presentation Switcher with Scaler
eks. mva

Features

  • Switching of 2 HDMI, 1 VGA, 1 DP signals each to 1 HDMI output
  • Supports resolutions up to 4K UltraHD 60Hz
  • Up- and downscaling on the output up to 4K UltraHD
  • IR control incl. learning mode, EDID management, RS232, volume control
  • Stereo audio embedding for the VGA signal, stereo audio de-embedding

4K Multiformat Scaler Switcher

A professional 4K scaling presentation switcher designed specifically to meet the needs of a small meeting room, executive hotel room or teaching podium. WUXGA support on VGA and 4K input support on HDMI and DP and full 4K scaling on the output. Autosense comes as standard but for more comprehensive switching and a more elegant interface, break out control buttons are available with an integrated video port. These elegant interface plates can be fitted securely and discreetly into furniture and provide a simple yet intuitive control and connection to your source device.

4x1 Presentation Switcher

4K SCALING

The PT-PSW-41H will scale the output content to 4K60Hz (4:2:0) or a multiple resolutions up to 10.2Gbs, making this a versatile and powerful switcher scaler.



SMART SIGNAL MANAGEMENT

IR control with learning mode, RS232, smart EDID management, volume and output resolution control, make the PT-PSW-41H perfectly equipped to handle all data without difficulties. Simply plug in and present.



COMPACT SIZE

All of this technology is packed into a compact enclosure, for installation into furniture or under desks.



MULTI FORMAT

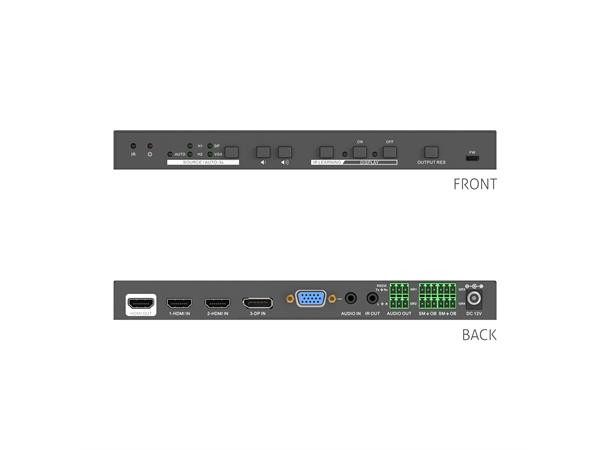

With two HDMI, VGA and DP on the auto switch equipped input side, and HDMI out with stereo audio extraction, the PT-PSW-41H is equipped to handle a range of installs.



ELEGANT INTERFACE PLATES

The unique breakaway button control with input connector allows to control and interface with the device without ever having to see it. The stylish yet discreet interface plates are perfect for high end installations.
