Features
- Switching of 1 VGA, DP und 3 HDMI signals to 1 HDMI and HDBaseT output
- Supports resolutions up to FullHD and WUXGA (1920x1200)
- Volume control for HDMI, mic- and line-in audio signals, up- and downscaling up to 2K WUXGA (1920x1200)
- Auto sense for automatic and seamless signal switching
- Control via web-GUI, OSD, RS232, CEC and IR, firmware updates via remote
PT-PSW-52 - Multiformat 5x2 Presentation Switcher

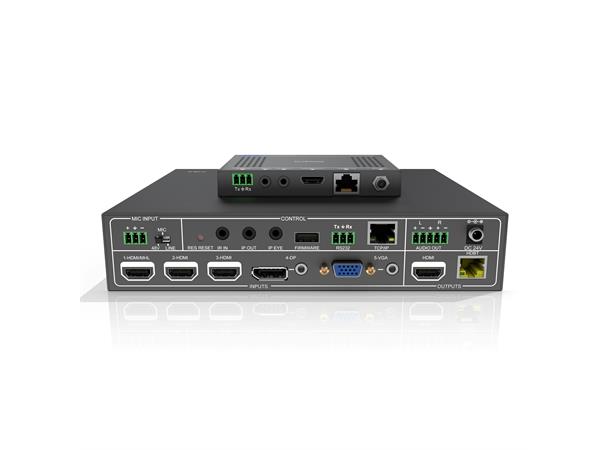

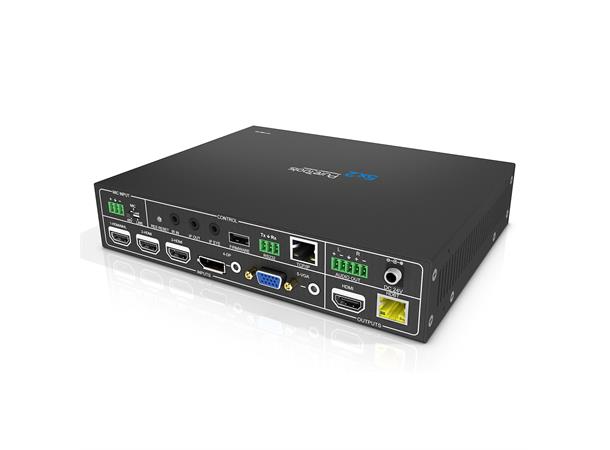

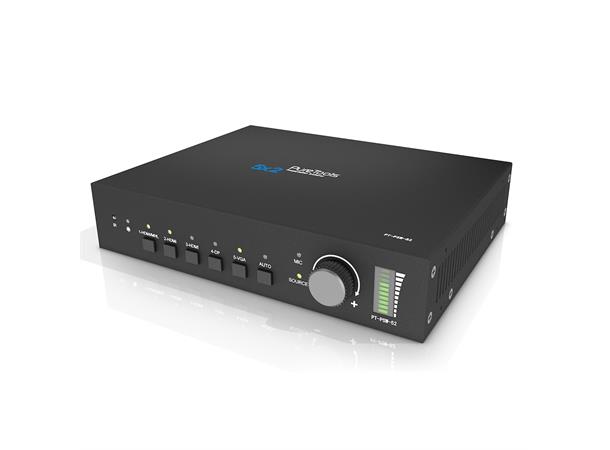

The PT-PSW-52 is a compact presentation switcher with 5 video inputs (1x HDMI / MHL, 2x HDMI, 1x DisplayPort and 1x VGA) and 3 different audio input options via 3.5mm jack on the DP connection, 3.5mm Jack on the VGA connector or unbalanced / balanced MIC audio via Phoenix screw terminals. The Presentation Switcher scales the input signal and then directs it simultaneously to the HDMI and HDBaseT outputs. The latter supports PoH and can be connected to a HDBaseT receiver up to a maximum range of 70 meters. In addition, the presentation switch can be controlled via physical buttons, IR remote control, RS232 commands and web-based GUI.
More functions than other devices
SEAMLESS MULTIFORMAT SWITCHING
Seamlessly switch between DP, VGA, MHL and two HDMI on the autosense equipped input side, directly to a choice of scaled output resolutions up to 1080p and WUXGA.
INTUITIVE CONTROL
The simple yet intuitive Web GUI adds another level of control to its simple yet effective IR remote, and with a powerful OSD and CEC embedding the system can be up and running perfectly in minutes.
REMOTE UPGRADE
Advanced control over IP is simple. Remotely configure settings and even install FW. Remote upgrades limit on-site time and allow installers to perform maintenance remotely and out of hours.
COMPACT SIZE
All of this technology is packed into a ½RU sized enclosure, for installation into furniture or a professional rack.
MIRRORED HDMI & HDBT OUT

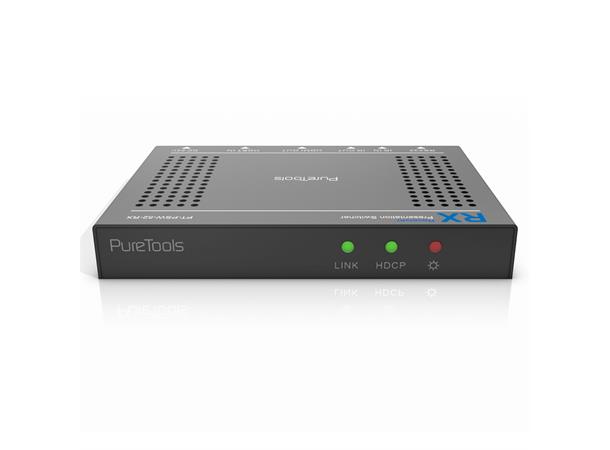

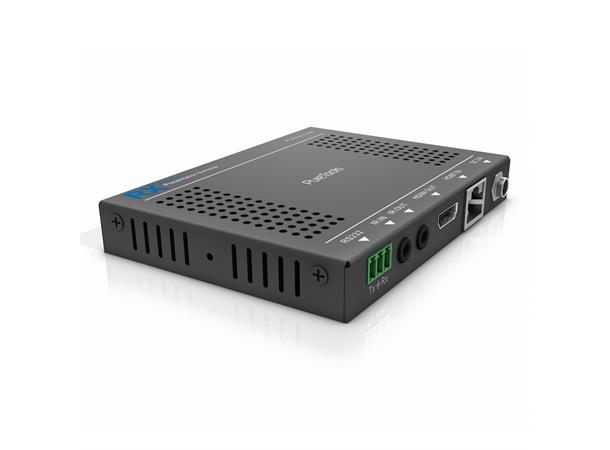

The PT-PSW-52 is equipped with a mirrored HDMI and full PoH HDBaseT output and comes complete with an HDBaseT Receiver (PT-HDBT-701-RX) adding a range of up to 70m to the video signal.
FLEXIBLE AUDIO INPUT AND OUTPUT
Support for 48V phantom power, dynamic and wireless MIC, as well as separate DP and VGA Audio embedding and built in balanced audio extraction with volume adjust, ensures flawless sound reproduction.
COMPLETE EDID MANAGEMENT
The PT-PSW-52 has comprehensive control over EDID. Smart EDID management settings and the ability to load customized EDID's, guarantee a perfect image every time.
Features at a glance:
• Designed specifically for board room and huddle room collaboration or lecture hall scenarios
• Output resolutions up to FullHD /1080p or WUXGA / 1920x1200px
• Wide range of signal inputs including 3 x HDMI, DP, VGA, Mic and Line level audio
• Separate audio inputs for DisplayPort, VGA and seperately via Phoenix terminal
• Switchable 48V phantom power on the MIC input for condenser microphones
• Seamless switching with built in scaler
• Maximum transmission distance: 70m for resolutions up to FullHD / 1080p
• Mirrored outputs for HDMI and HDBaseT - Two displays can be simultaneously connected
• HDBaseT receiver included in delivery
• CEC and GUI Control auto switching and audio embedding / de-embedding
• Optional Accesoire: 2x 2x Long Mounting Ears with 6 screws - Art.-No.: PT-RM-PSW52
