Maxhub Soundbar with Camera

Teams sertifisert, POE

Varenr: UCS07
Maxhub Soundbar with Camera Teams sertifisert, POE Maxhub Soundbar with Camera Teams sertifisert, POE Maxhub Soundbar with Camera Teams sertifisert, POE Maxhub Soundbar with Camera Teams sertifisert, POE Maxhub Soundbar with Camera Teams sertifisert, POE
eks. mva

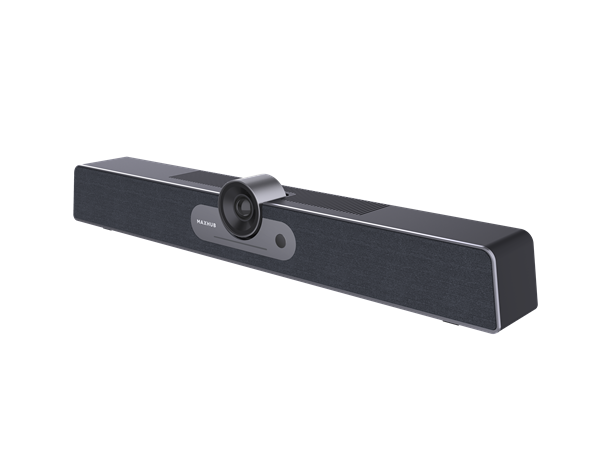

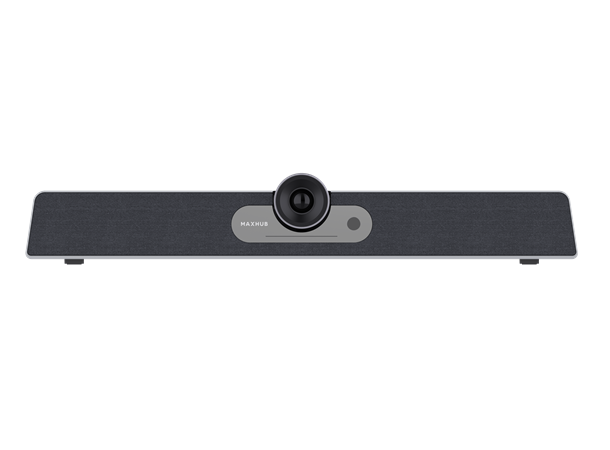

MAXHUB UC S07

All-in-one Ultra-HD USB Videobar with 8-meter Voice Pick-up Range for Small and Medium-sized Rooms.

  • Intelligent plug and play with all-in-one USB BYOD
  • Hear and be heard everywhere with microphones featuring 8m voice pickup
  • 3-year worry-free hot-swap warranty
  • Always see and be seen with UHD 4K video and built-in AI functions

Make Space

For meetings in huddle rooms for 2 to 8 people, UC S07 features exceptional integrated capabilities in a compact USB camera bar.

Intelligent Plug and Play

All-in-one

Perfect for a BYOD (Bring Your Own Device) environment, this plug and play camera bar features an integrated camera, microphone, and speaker.

Easy set up

All you need is two cables—one for the power supply (PoE) and a Type-C USB cable.

Hands-free activation

Thanks to the PIR sensor and hands-free function, the device automatically turns on when movement is detected within a 3m range. It enters standby mode when no movement is detected in a 30-minute timeframe, reducing energy consumption.

Tracking you wherever you are

Ensure better conversation with the 6 intelligent beam-forming microphones featuring 8m voice pickup. With speaker tracking and voice location locking, you and your colleagues can always get your point across loud and clear. AGC maintains constant and stable voice output regardless of the speaker's distance from the microphone.

Filter noise for what really matter

Keep the attention on you by filtering out distracting background noises like tapping, typing, or doors closing.

Hear clearly

Whether your meeting is a conversation between two people or a larger gathering of up to 8, you'll hear everyone clearly thanks to the studio-quality Hi-Fi speaker with 8 W+3 W output power. Plus, the tweeter and woofer design deliver an immersive sound experience to every corner of the room.

Razor-sharp focus from wide-angle to close-up

See everyone in the meeting room simultaneously using the wide-angle view or see a close-up of an individual attendee. The 5x digital focus is ideal for use in huddle rooms.

Easily auto-frame participants

Auto-Framing with intelligent face detection seamlessly tracks the active speaker to keep participants engaged.

Key Features

  • Auto Framing: automatic adjustment FOV to fit in all participants
  • Speaker Tracking: voice triggered people tracking 2 Zooming Pre-sets for instant setting up
  • Noise Reduction
  • Echo Cancellation
  • Anti-Reverberation
  • Built-in AGC Algorithm

Technical Specifications

  • Camera
    • Pixel: 12M
    • Sensor: 1/2.3-inch 12MP Sony sensor
    • Resolution and Frame Rate
      • H.264/MJEPG:
        • (1) 3840 x 2160   (2) 2560 x 1440   (3) 1920 x 1080
        • (4) 1280 x 720   (5) 1024 x 576   (6) 960 x 540
        • (7) 800 x 600   (8) 640 x 480   (9) 640 x 360
        • (10) 480 x 270   (11) 352 x 288   (12) 320 x 240
      • YUY2:
        • (1) 640 x 480 (2) 640 x 360 (3) 480 x 270
        • (4) 352 x 288 (5) 320 x 240 (6) 320 x 180
        • (7) 160 x 120
    • ZOOM: 5x digital zoom
    • Output Format: MJPG; YUY2; H.264
    • Field Of View: 120° (D)
    • Adjustable Angle: ± 15° (V)
    • Focus Mode: Fixed-Focus
    • Focus Distance: 1m
    • Preset Accuracy: 0.1°
  • Power
    • Power Requirements: 12V
    • Overall Power(Max.): 10W
    • POE Power: Yes (IEEE 802.3af or 802.3at)
  • Physical Specifications
    • Dimension(Lx Hx D): 462 x 76 x 93 mm (18.2 x 3.0 x 3.7 inch)
    • Dimension(package)(Lx Hx D):
      • 1pcs 538 x 160 x 169 mm (21.2 x 6.3 x 6.7 inch)
      • 4pcs 628 x 433 x 380 mm (24.7 x 17.0 x 15.0 inch)
    • Maximum Sound Pressure: 80dBSPL@1m
    • Net Weight: 1.05Kg/37.04oz
    • Gross Weight:
      • 1pcs 2.55kg/90oz
      • 4pcs 12.00kg/423.29oz
  • Audio
    • Speaker
      • Sound Chanel: 1.1
      • Output Power: 8W + 3W
    • Microphone
      • Microphone Quantity: 6
      • Voice Pickup Range: 8m

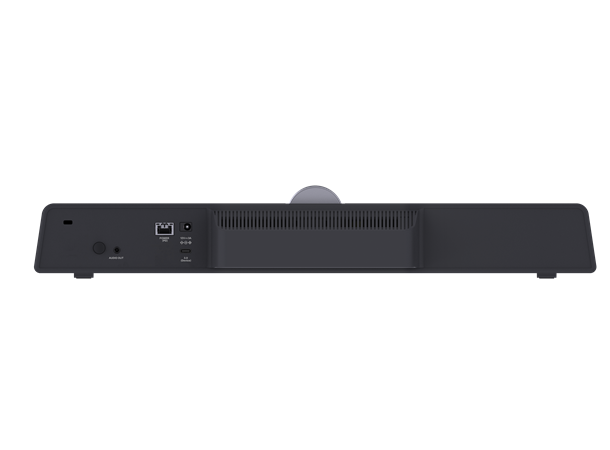

  • Input/Output Port
    • USB 3.0 Type-C: Connect USB host, upgrade system, etc.
    • Audio Out: Used for external audio equipment
    • DC 2.0: Used for 12V power input power supply
    • RJ45: Only support POE power supply
  • Environmental Condition
    • Operation Temperature: 0? - 40?
    • Operation Humidity: 10% - 90%RH
    • Storage Temperature: -20? - 60?
    • Storage Humidity: 10% - 90%RH
    • Altitude: Below 5000 meters

Whats' Included?

  • 1 x USB Cable (1.8m/70.9 inch)
  • 1 x Remote Control
  • 1 x Power Adapter
  • 1 x Wall-mounted Components
  • 1 x Peeping Cover
