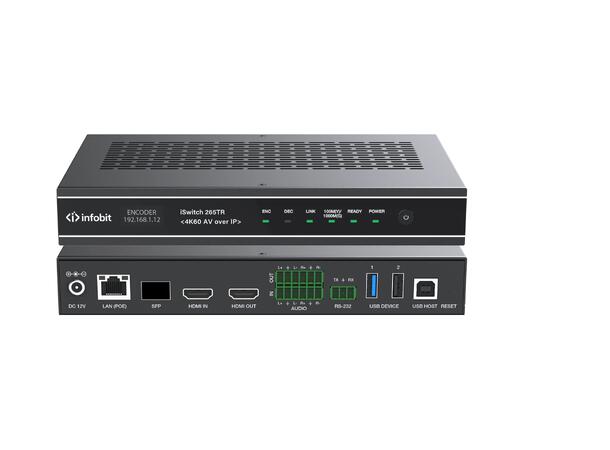

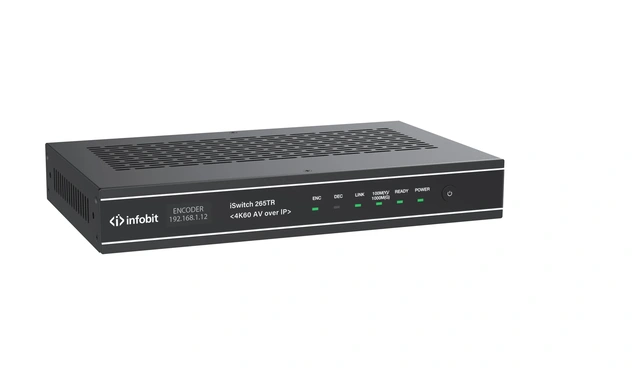

iSwitch 265TR
Up to 4K60Hz (4:4:4), 18Gbps video bandwidth, HDMI 2.0b, HDCP 2.2
Audio formats LPCM 2.0CH 48kHz
Transceiver design of encoder and decoder, fiber and copper dual-mode
Images roaming: a unit as a decoder can process up to 16 signals, enabling arbitrary windowing, roaming, overlaying, and videowall
Supports KVM
Universal H.264/265 protocol, supporting IPC access and seamless integration with security cameras
Support high-definition background image (both video and picture are available), as well as multi-screen videowall
Support scrolling subtitles and character overlay
Support point-to-point signal extension
Support signal distribution, multicast mode, matrix, and video wall functions over a 1G Network Switch
Integrated central control over RS-232, APP on portable devices available
Support user rights management
Flexible control via KVM, APP, and Control Server
Standard POE supported (802.3af Class 3, PD mode)
The encoder supports HDMI loop-out
The encoder supports audio embedding and de-embedding
Comprehensive visual interaction mode, signal source, large screen status, scene preview, and environmental visualization control
Point-to-Point:
The iSwitch 265TR is a direct replacement for AV Matrix (HDbaseT) solutions.
Leverage IP infrastructure to route AV signals in offices, huddle rooms, conference rooms, or as content contribution between locations.
One-to-Many:
The iSwitch 265TR efficiently deliver high-quality, low latency, AV to many displays on a floor, between floors, or across the entire organization.
Many-to-One:
SwitchingThe iSwitch 265TR lets you take content from multiple encoders and deliver it to one decoder connected to the same managed Ethernet switch.
Many-to-Many:
Video WallThe iSwitch 265TR include video wall processing that allows encoded AV content to be presented across an array of displays.
Many-to-Many Matrix Switching:
Digital signage systems are usually asymmetrical – a few sources feeding a large number of destinations.
iSwitch simply integrates decoder and network drop for each display.
Datasheet
| Model |
iSwitch 265TR |
| Name |
H.264/H.265 4K60 AV over IP Transceiver with KVM and RS-232 |
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
| Video Compression Standard |
H.264/H.265 |
| Video Bandwidth |
18Gbps |
| Network Port |
1,000M Base-T (supports POE) |
| Video Resolution |
1024×768~3840×2160/60Hz (Note: The decoder supports custom resolution output.) |
| Color Space |
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth |
8/10/12bit |
| Encoding Sampling Rate |
48KHz |
| HDMI Audio Formats |
LPCM 2.0CH, 16bit, 48k |
| Analog Audio Formats |
Left and right stereo analog audio |
| ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |

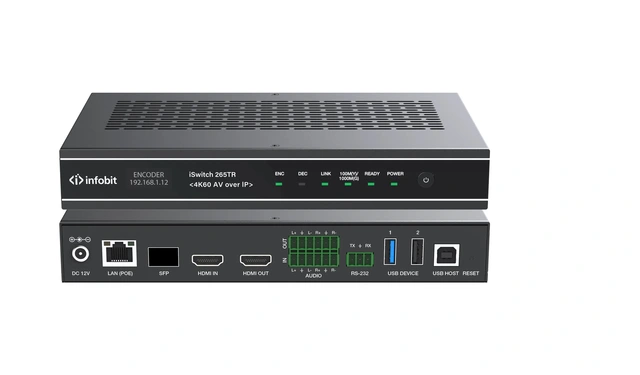

| Input |
1 x HDMI IN [Type A, 19-pin female]
2 x AUDIO IN [3-pin Phoenix connector, stereo balanced linear interface] |
| Output |
1 x HDMI OUT [Type A,19-pin female]
2 x AUDIO OUT [3-pin Phoenix connector, stereo balanced linear interface] |
| Control |
1 x LAN (POE) [RJ45, supporting POE]
1 x RS-232 [3-pin Phoenix connector]
1 x USB HOST [Type B, 4-pin female]
2 x USB DEVICE [Type A, 4-pin female]
1 x SFP [Fiber slot] |
| Housing |
Metal Enclosure |
| Color |
Black |
| Dimensions |
204mm [W] × 131.5mm [D] × 30mm [H] |
| Weight |
760g |
| Power Supply |
Input: AC 100 – 240V 50/60Hz
Output: DC 12V/2.5A |
| Power Consumption |
Encoder: 10.22W; Decoder: 7.04W |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity |
20~90% RH (non-condensing) |
