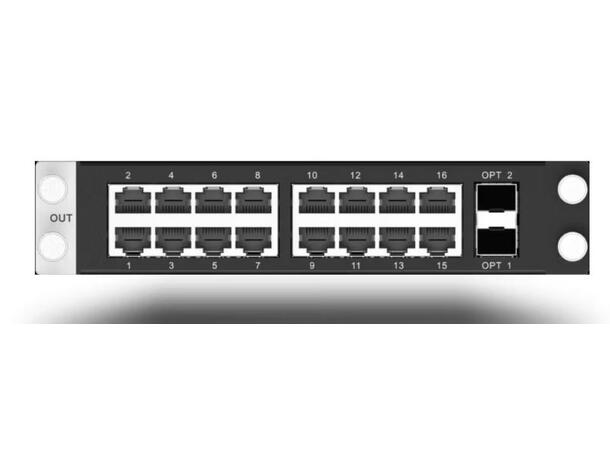

Novastar H_16xRJ45+2xFiber sending card

Varenr: S09100077
Novastar H_16xRJ45+2xFiber sending card
eks. mva

LED 4K sending card can load up to 10,400,000 pixels (max. width: 10,240 pixels, max. height: 10,240 pixels).

This card occupies two slots.

Key Features

  • 16x RJ45 Gigabit Ethernet outputs
    • Bit depth: 8-bit
      • A single Ethernet port loads up to 650,000 pixels.
    • Bit depth: 10-bit
      • A single Ethernet port loads up to 320,000 pixels.
    • Backup between Ethernet ports
    • Supports 144Hz output.
  • 2x OPT outputs
    • Support both SMF and MMF transmission.
    • OPT 1 copies and outputs the data on Ethernet ports 1–8.
    • OPT 2 copies and outputs the data on Ethernet ports 9–16.
    • Supports 144Hz output.
  • Specifications:
    • Weight: 600 g
    • Dimensions: 193 mm × 247.12 mm × 41.25 mm
    • Power consumption: 34.2 W

Note: For the optical module connected to the OPT port, you need to order or purchase separately
