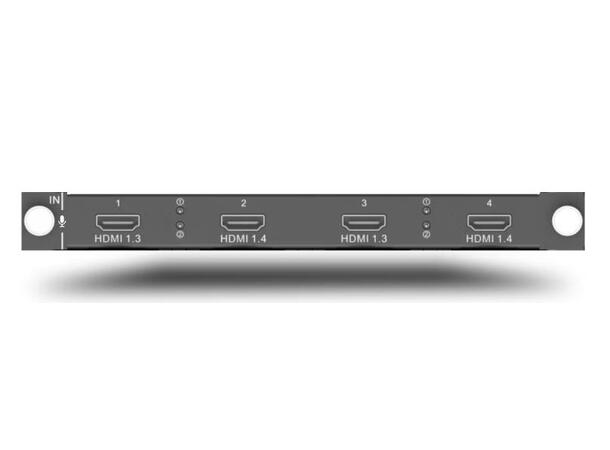

Novastar H_4xHDMI input card

Varenr: S09100083
Novastar H_4xHDMI input card
eks. mva

Support for 10-bit input source, accompanied audio and 144Hz input

Does not support interlaced signal input.

Key Features

  • For HDMI 1.3 inputs:
    • Four connectors are all used for input.
    • Each connector supports the maximum resolution of 2048×1152@60Hz, and the minimum resolution of 800×600@60Hz.
    • Custom resolutions:
      • Max. width: 2560 pixels (2560×972@60Hz)
      • Max. height: 2560 pixels (884×2560@60Hz)
    • HDCP 1.4 compliant
  • For HDMI 1.4 inputs:
    • Two HDMI 1.4 connectors are used for input, but two HDMI 1.3 connectors are unavailable.
    • Each connector supports the maximum resolution of 3840×1080@60Hz.
    • Custom resolutions:
      • Max. width: 3840 pixels (3840×1124@60Hz)
      • Max. height: 4095 pixels (1014×4095@60Hz)
    • HDCP 1.4 compliant
  • Status LEDs:
    • On: The input source is accessed normally.
    • Off: No input source is accessed or the input source is abnormal.
  • Specifications:
    • Weight: 550 g
    • Dimensions: 193 mm × 247.12 mm × 21.15 mm
    • Power consumption: 9.3 W
