- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
- HDMI-A male to HDMI-A male with PureLink APO™ (Active Performance Optimizer™)
- High purity copper conductors and triple shielding, AWG32/28/26
- Status LED & microUSB port for 5V supply

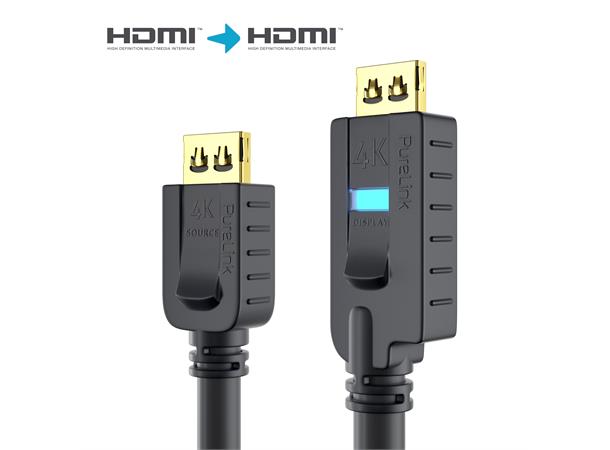

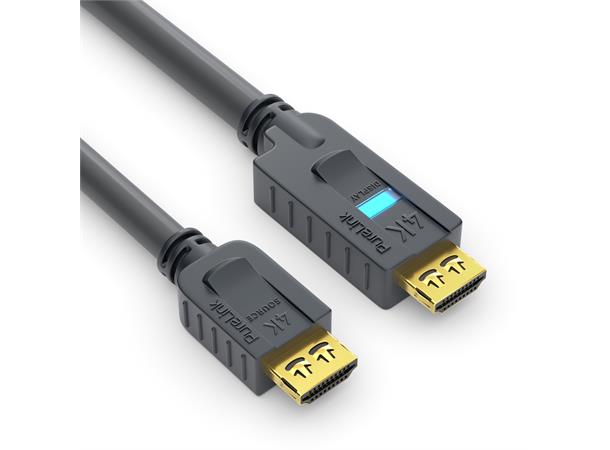

Active 4K High Speed HDMI Cable with microUSB Power Supply and SLS™
Long distances with full 18Gbps bandwidth and optional power supply for perfect performance
The active High Speed HDMI with Ethernet cable PI2010 allows transmission distances up to 20 meters with up to 18Gbps for full 4K@60Hz (8bit, 4:4:4) resolutions. The 25m or 30m versions allow up to 10.2Gbps for 4K@30Hz or FullHD / 1080p@60Hz. The cable features an integrated signal amplifier, powered directly by the 5V line of the HDMI connection or, if the power output of the HDMI source device is not sufficient (e.g. laptop) using an external microUSB power adapter. This makes this cable especially suitable for professional applications over long distances. All features of the PureInstall series, such as Secure-Lock-System™ as well as triple shielding, high-purity OFC copper conductors and gold-plated contacts are of course also included.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts make PureInstall products a good investment for any field of use.
The Latest Generation
The PI2010 PureInstall HDMI cables comply with the HDMI standard - HDMI High Speed with Ethernet. They support bandwidths up to 18Gbps for resolutions up to 4K@60Hz with 8bit colors as well as 4:4:4 subsampling up to a length of 20m (10.2Gbps for max. 4K@30Hz at 25m & 30m) and are backwards compatible to all older HDMI specifications. The display of HDR content (High-Dynamic-Range) is also possible without problems.
"Special Features" of PI2010
The active cables feature an exclusive EQ chipset using a sophisticated signal processing, directly powered via HDMI. If the power input of the HDMI source device is not sufficient, which is often the case with laptops or graphics cards, a 5V power source can be easily connected via microUSB. The cable uses a subtle blue LED to indicate an active connection.
PI2010 cables have achieved a bit error rate of 0 (zero) in tests with a Quantum Data 780D, last but not least due to the excellent interference-reducing EMI shielding.
In terms of installation quality, the PI2010 cable does not need to hide behind other PureInstall cables: The cable is UL CL2 approved and therefore perfectly suited for in-wall installation. It also features strong, interlocking metal shells inside that can withstand high tensile forces.
Note: The test specifications for active HDMI cables have not been published yet. When they are, these cables will be among the first to receive certification.
Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.

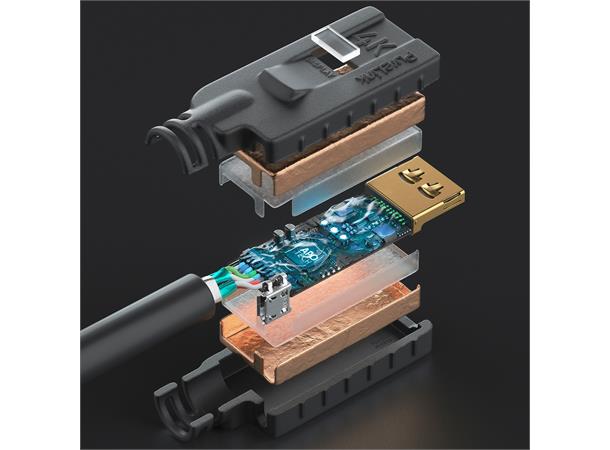

Our unique triple-shielding technology consists of a 100% closed aluminum foil, a thick netting and an additonal inner shielding. Due to this, our cable are immune from interferences and crosstalk. The ultra-pure inner conductor made of OFC copper can therefore unfold its full potential.
Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.
For Professional Purposes and Installations
All PureInstall cables are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the cables undergo over ten quality tests, making them the most reliable choice on the market.
