iTrans E100HC
Compliant with HDCP 2.3, 18Gbps video bandwidth
HDBaseT 3.0 VS3000 chipset-based design
Support video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in HDMI 2.0b
4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients
RX features with 1x HDMI output, 2x USB 2.0 clients
USB-C and HDMI signal inputs support auto or manual switching mode
Auto switching supports HDMI 5V or signal detection selection
USB-C supports DP-ALT mode for A/V, USB 2.0 data, and power charging up to 60 watts
TX/RX USB-A client ports VBUS on or off depending on USB host is connected or not
HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
4K to 1080p downscaling features on HDMI output, no frame rate conversion
Both TX and RX support analog audio de-embedding
Support bi-directional IR signal pass-through, USB 2.0 signal transmission
Advanced EDID management
Each USB-A port provides power up to 5V/500mA
Support bi-directional 24V POC, with a POC switch
RS-232 signal pass-through and guest-mode control
Datasheet
Model iTrans E100HC
Name 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (100m) with USB 2.0
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.3
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
Audio Formats HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
3.5mm Analog Audio: LPCM 2CH
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
USB Compliance USB 2.0
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmission Distance HDBT Standard Mode (4K60/4K30/1080P): 328ft/100m (CAT6A/7)
HDBT Long Reach Mode (1080P 8bit): 492ft/150m (CAT6A/7)
IR Level 12Vp-p
IR Frequency Wideband 20K-60KHz

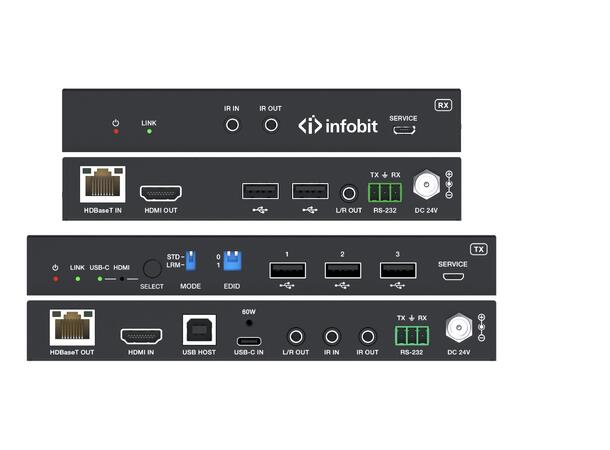

Transmitter Input: 1 x HDMI IN [Type A, 19-pin female]
1 x USB-C IN [USB Type C, 24-pin female]
Output: 1 x HDBaseT OUT [RJ45, 8-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x SERVICE [Micro USB, 5-pin female]
1 x USB HOST [USB Type B, 4-pin female]
3 x USB Devices [USB Type A, 4-pin female]
Receiver Input: 1 x HDBaseT IN [RJ45, 8-pin female]
Output: 1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUT [3.5mm Stereo Mini-jack]
Control: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x SERVICE [Micro USB, 5-pin female]
2 x USB Devices [USB Type A, 4-pin female]
Housing Metal Enclosure
Color Black
Dimensions Transmitter: 170mm [W] x 102mm [D] x 22mm [H]
Receiver: 144mm [W] x 78mm [D] x 23mm [H]
Weight Transmitter: 484g, Receiver: 318g
Power Supply Input: AC 100 – 240V 50/60Hz
Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
Power Consumption (Max) 94.32W (Power supply from TX, 60W USB-C charging, POC to RX)
10.8W (Power supply from TX or RX, without USB-C charging)
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
