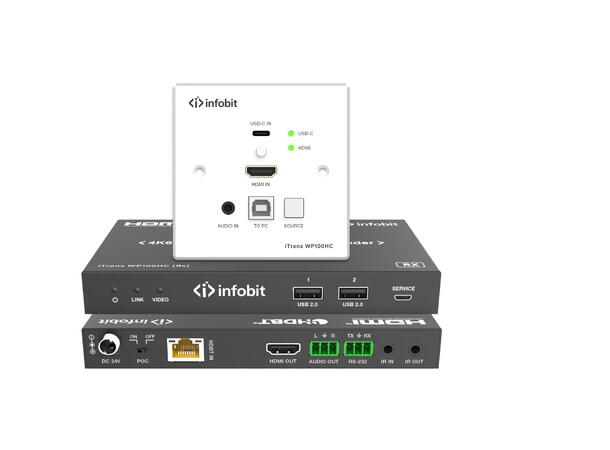

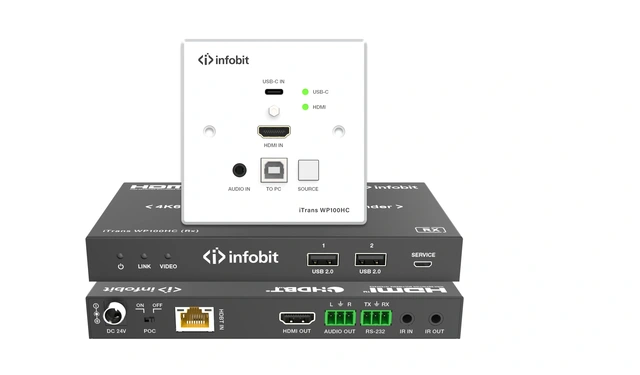

iTrans WP100HC (UK)
Support video resolution up to 4K2K@60Hz (4:4:4)
HDMI 2.0b, HDCP 2.2/1.x, and DP 1.2a compliant
HDMI input supports 18Gbps video bandwidth
Up to 7.1 channels of HD audio
Input signal source selection supports button switching
HBT mode: Audio and video signals can be transmitted up to 100m for 4K60/4K30/1080P
LRM mode: Audio and video signals can be transmitted up to 150m for 4K30/1080P
Built-in EDID DIP switch supports intelligent EDID management
Built-in audio DIP switch supports analog audio embedding
Built-in POC
Transmit bidirectional Infrared control signal together with the HDMI signal.
Transmit bidirectional RS-232 control signal together with the HDMI signal.
The Receiver supports USB 2.0 signal transmission
Standard UK version wall box
Datasheet
Model iTrans WP100HC
Name 4K60 HDMI/USB-C 2×1 HDBT Wall-plate Extender (UK Version)
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth HDMI: 18Gbps; USB-C: 5.4Gbps
HDMI Video Resolution Up to 4K2K@60Hz 4:4:4
Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
HDMI Audio Formats LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format)
Analog Audio Embedding 48KHz
Transmission Distance LRM mode: 492ft/150m (4K30/1080P)
STD-HBT mode: 328ft/100m (4K60/4K30/1080P)
ESD Protection Human body model—±8kV (Air-gap discharge) &±4kV
(Contact discharge)
Transmitter Input:
1x HDMI IN [Type A, 19-pin female]
1x USB-C IN [USB Type C]
1x AUDIO IN [3.5mm Stereo Mini-jack]
Output:
1x HDBaseT OUT [RJ45]
Control:
1x TO PC [USB Type B]
1x RS-232 [3pin-3.81mm Phoenix connector]
1x IR IN [3pin-3.81mm Phoenix connector]
1x IR OUT [2pin-3.81mm Phoenix connector]
Receiver Input:
1x HDBT IN [RJ45]
Output:
1x HDMI OUT [Type A, 19-pin female]
1x AUDIO OUT [3pin-3.81mm Phoenix connector]
Control:
2x USB 2.0 [USB Type A]
1x RS-232 [3pin-3.81mm Phoenix connector]
1x IR IN [3pin-3.81mm Phoenix connector]
1x IR OUT [2pin-3.81mm Phoenix connector]
1x SERVICE [Micro USB]
Housing Metal Enclosure
Color Front panel: White; Rear case: Black
Dimensions Transmitter: 86mm [W] x 86mm [D] x 38.5mm [H]
Receiver: 157.2mm [W] x 88mm [D] x 20mm [H]
Weight Transmitter: 234g; Receiver: 377g
Power Supply 24V/1A (supporting bidirectional POC power supply)
Power Consumption 12.48W (Max)
Operating Temperature 32 – 104°F / 0 – 40°C
Storage Temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
