PureTools - HDBaseT USB-C Transmitter - HDBaseT 3.0 - 4K (60Hz 4:4:4) USB-C video and data
PureTools HDBaseT 3.0 USB-C Transmitter - USB-C video and data

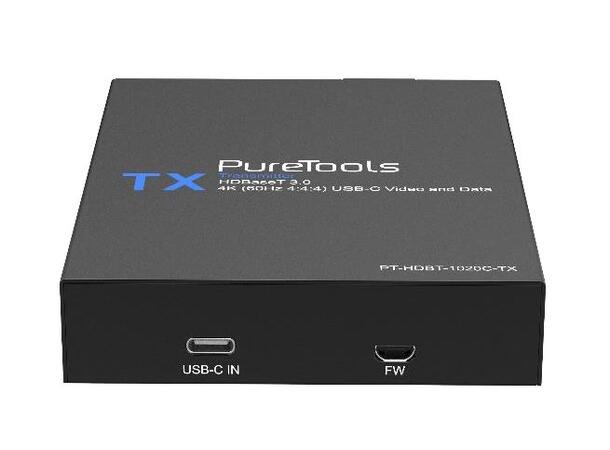

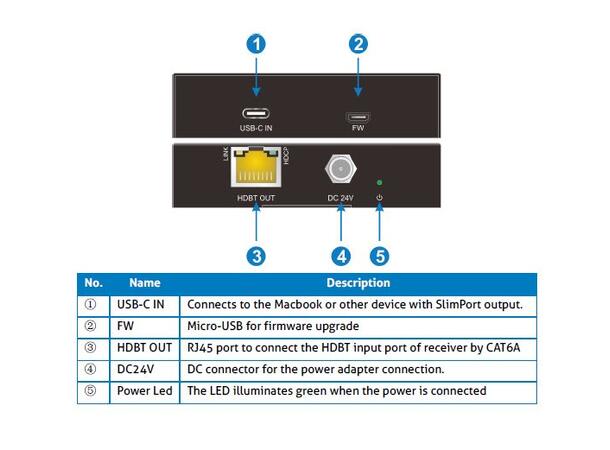

The PT-HDBT-1020C-TX is an uncompressed 18G HDBaseT3.0 transmitter that allows a single USB-C input signal to be transmitted over distances up to 100m at 4K@60Hz/1080p@60Hz via CAT6A cable. The transmitter features one USB-C input and one HDBT output. For the USB-C input, it provides an ideal AV interface for remotely connecting to a modern PC. Use in conjunction with PT-HDBT-1020HU-RX for HDMI and USB connectivity at the receiver side, or with PT-HDBT-1020C-RX for USB-C direct data and video connections.
Adaptable HDBaseT 3.0 KVM Extension System - USB-C Transmitter
PureTools HDBaseT 3.0 USB-C Transmitter - 18Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support , HDBaseT V3.0 for full bandwidth video and data transmission up to 100m at 4k and 1080p, USB-C port for host video and USB2.0/1.1 data, Bi-directional 24-48V PoC, professional metal housing with mounting.
| Features |
| 18Gbps (4K 60Hz 4:4:4) and HDCP 2.2 support |
| HDBaseT V3.0 for full bandwidth video and data transmission up to 100m at 4k and 1080p (4K 60Hz 4:4:4 limited to 80m, 4K 60Hz 4:2:0 100m) |
| USB-C port for host video and USB2.0/1.1 data |
| Bi-directional 24-48V PoC |
| Professional metal housing with mounting |
