PureTools 4K 18Gbps HDMI Splitter

Scaler and Audio De-Embedding

Varenr: PT-SP-HD116DA
PureTools 4K 18Gbps HDMI Splitter Scaler and Audio De-Embedding
eks. mva

Features

  • Distributes 1 HDMI signal to 16 HDMI outputs
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Incl. 4K to 1080p downscaler and signal repeater
  • EDID Management, 6-fold cascading, CEC pass-through, HDCP 2.2 (input)
  • Robust enclosure with mounting brackets and firmware update port

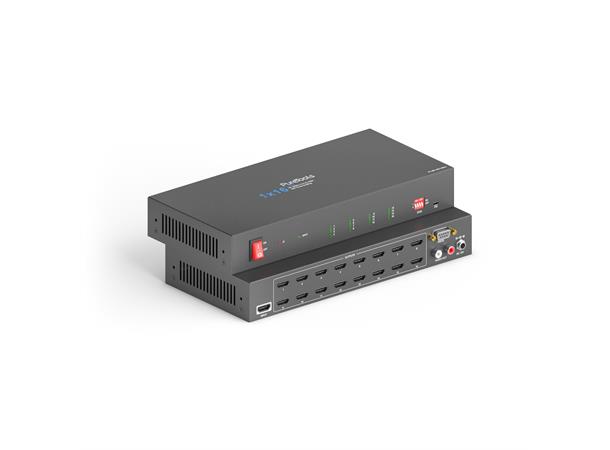

1x16 4K 18Gbps HDMI Splitter with Downscaler and Audio De-Embedding

The PT-SP-HD116DA 1x16 HDMI 2.0 splitter distributes one HDMI input to sixteen HDMI outputs. The splitter supports resolutions up to UltraHD 4K 60Hz (4:4:4) incl. HDR 10 and Dolby Vision. It features an advanced EDID management option using the 4-pin DIP switch on the front panel of the unit. It also supports downscaling, so a 4K video input can automatically be downscaled to a 1080p output when connecting a 1080p display. A stereo analog audio output is provided for audio de-embedding from HDMI. The splitter supports control options via CEC and RS232.

The PureTools Series - High Quality AV Products for Commercial Applications

 - 1x16 HDMI 2.0 Splitter with 1 HDMI input and 16 HDMI outputs

- 18Gbps UltraHD 4K 60Hz (4:4:4) incl. HDR10 and Dolby Vision

- HDCP 2.2 compliant

- AOC cable support - each port delivers up to 5V/100mA

- Auto 4K to 1080p downscaling

- Stereo analog audio de-embedding from HDMI

- Smart HDCP management

- Smart EDID EDID management via DIP switch

- RS232 and CEC control
