HDCP 2.3 and DP 1.4 compliant
Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.0
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Using only 1 set of keyboard, mouse and monitor to control 2 computers
Support video fast switching, and keyboard/mouse seamless switching
Each input port has an EDID emulator to provide the correct information for the PC
Support hot plug, disconnect or connect devices to the KVM at any time
Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232
Support auto switching
Input supports 1x HDMI port and 1x USB-C port
With USB-C charging port, supporting PD3.0 charging 100W
Advanced hardware/software design and production ensure zero latency
The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s
Compact design for easy and flexible installation
Datasheet

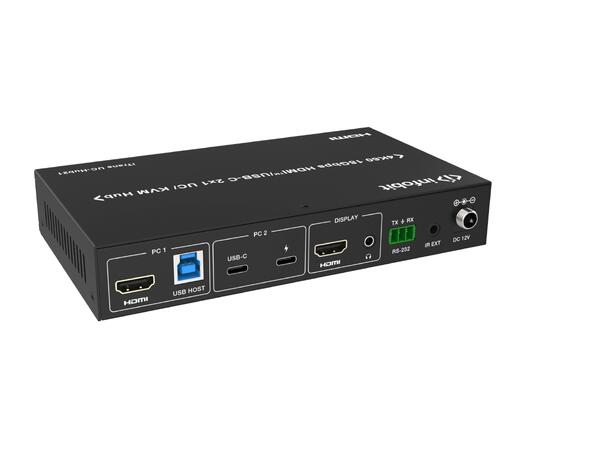

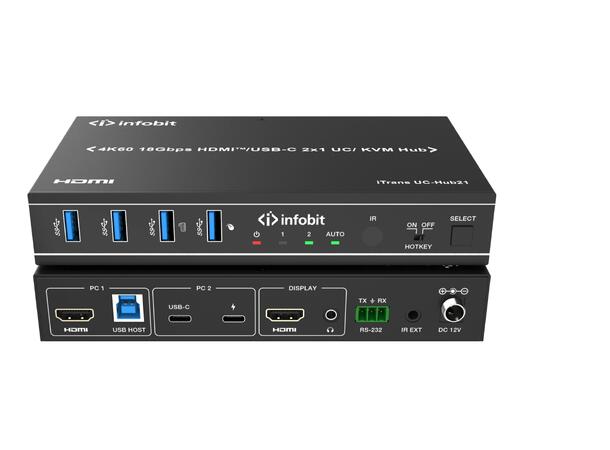

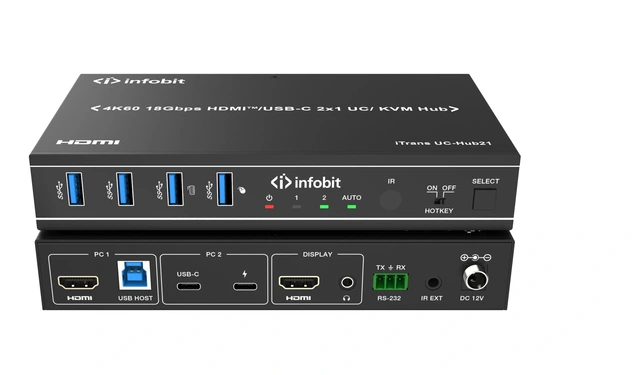

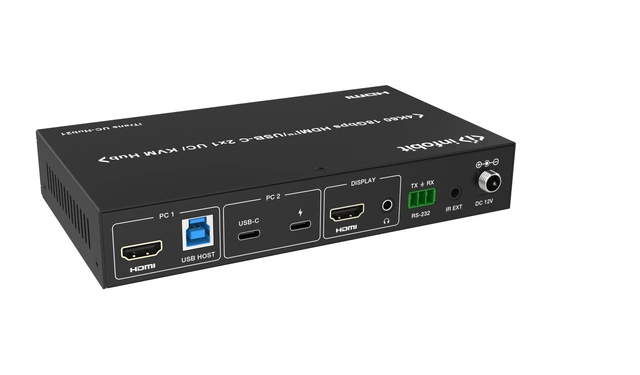

| Model | iTrans UC-Hub21 |
| Name | 4K60 18Gbps HDMI/USB-C 2×1 UC/KVM Hub |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.3 |
| DP Compliance | DP 1.4 |
| Video Bandwidth | 18Gbps |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Video Resolution | Up to 4K@60Hz, 2K@60Hz/144Hz |
| IR Level | 5Vp-p |
| IR Frequency | Fixed frequency 38KHz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| CEC | Support |
| Audio Formats | HDMI IN/OUT:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
L/R OUT:
PCM 2.0CH |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |

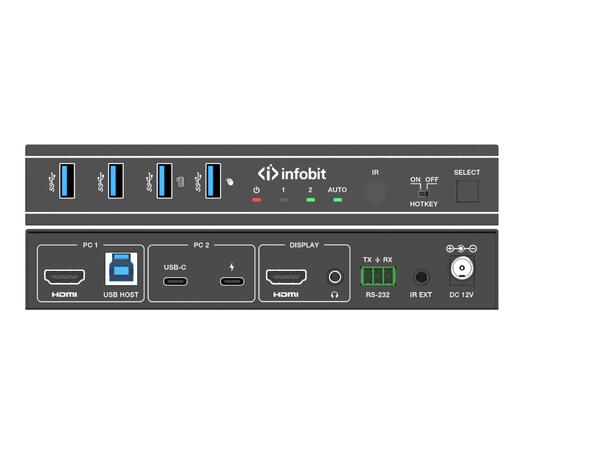

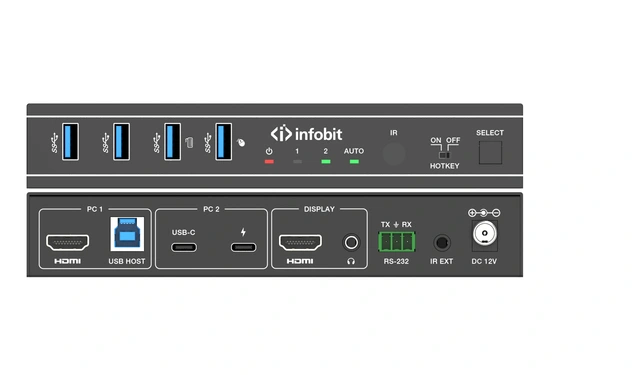

| Input ports | 1 x HDMI input [Type A, 19-pin female]
1 x USB-C [AV signal input]
1 x USB-C [Power input] |
| Output ports | 1 x HDMI output [Type A, 19-pin female]
1 x L/R audio output [3.5mm Stereo Mini-jack] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
1 x USB HOST [USB 3.0 Type B,11-pin female]
4 x USB DEVICES [USB 3.0 Type A,13-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 175mm [W] x 100mm [D] x 30mm [H] |
| Weight | 505g |
| Power Supply | Input: AC 100 – 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Typical value: 7.8W Standby mode: 0.6W |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no-condensing) |
