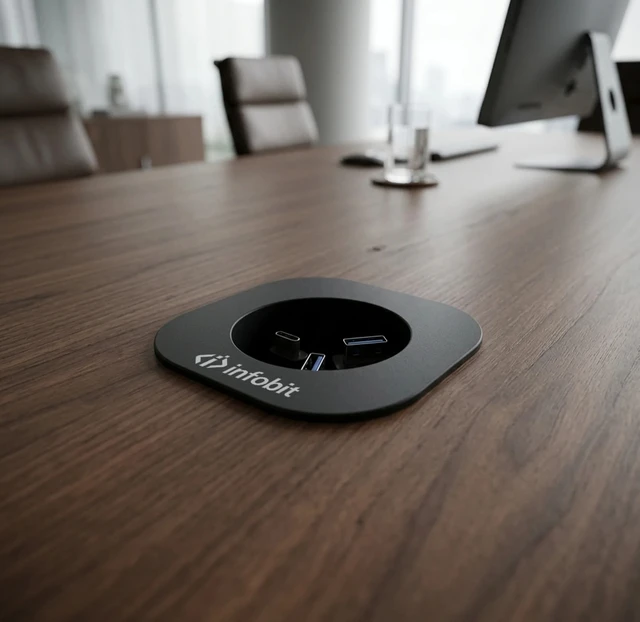

iBox Core-500 Retractable In-Desk Table Box with 2M-USB C (USB 3.2 Gen2), 2M-HDMI (HDMI 2.0) and 2M-USB A/B (USB 3.2 Gen1,)
Retractable cables design
Provides quick and easy access to AV cables.
Ideal for conference tables, lecterns, or other meeting spaces.
Features a sleek insert design that blends seamlessly with any décor.
Easily installs into a table or other surface up to 75mm (2.95”).
Recommended table opening size: 80mm (3.15”).
Includes an under-table bag to conceal cables, ensuring a clean and tidy installation.
1x HDMI 4K60 cable, 1x 5Gbps USB A to B cable, and 1x USB4 C to C cable.
Supports HDMI 2.0, 4K60Hz 4:4:4 video resolution. The supper-soft HDMI cable length is 2m.
Supports USB 3.0 5Gbps USB a to B super-soft cable, 2m in length.
The USB-C to USB-C fully featured cable supports 20Gbps, 240W PD, and 4K60Hz video.
Datasheet
| Model | iBox Core-500 |
| Name | Retractable In-Desk Table Box with USB C, HDMI and USB 3.0 |
| HDMI Cable | HDMI 2.0, Length: 2m, (Model: iCable H4KS-02) |
| USB-C Cable | USB 3.2 Gen2, Length: 2m, (Model: iCable U4-CC2020) |
| USB-A to USB-B Cable | USB 3.2 Gen1, Length: 2.0m, (Model: iCable U3S-AB02) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90%, non-condensing |
| Enclosure Type | Plastic |
| Mounting | Flush tabletop mount |
| Dimensions (W x D x H) | 86mm x 86mm x 75mm / 3.39” x 3.39” x 2.95” |
| Recommended Table Opening | 80mm/3.15” |
| Min./Max. Table Thickness | 5mm–45mm / 0.2”–1.77” |
| Net Weight | 0.15kg/0.33lb (for Enclosure only) |
