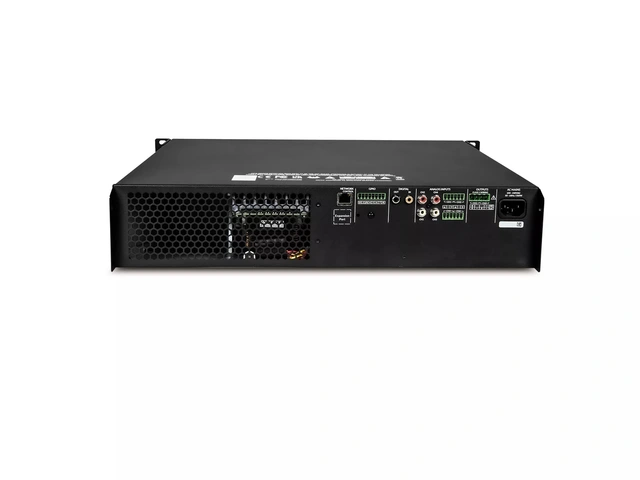

Compact two-channel 4 ohm installation amplifier
Digital signal input and output for easy interconnection without conversions.
Dedicated DSP with full connectivity and control via stand-alone Wi-Fi. Ethernet and GPIO
Main information.
- 2x500W @ 4Ohm,
- 1x1000W @ 4Ohm Bridge,
- 1x1000W (100V/Bridge@8 Ohm)
- Control from it´s own WAP Access Point without the need for software downloads
- DSP matrix with 4 mono or 2 stereo inputs, 1 or 2 zone output and S/PDIF link to connect to other accsessorys
- Class D amplifier
| Channels |
2 LoZ / 1 HiZ |
| Low Impedance Power |
2 x 500W @ 4 Ohm / 2 x 400W @ 8 Ohm |
| L100V Power |
1 x 1000W |
| Audio input |
4 x Euroblock (balanced) o 4 x RCA (unbalanced) 1 x Digital S/PDIF (RCA) |
| Frequency Response |
20Hz-20kHz |
| S/N Rate |
>106 dB |
| Crossover |
Butterworth, Bessel, Linkwitz-Riley |
| Equalization |
Parametric 10 band, LPF, HPF, BPF |
| Input power |
AC 100/240V, 50/60Hz, 75W |
| Dimensions |
483 x 88 x 319mm |
| Weight |
2,8kg |
| Connections |
Euroblock/RCA Inputs, Euroblock Speaker Output, Euroblock GPIO, RJ45, RCA S/PDIF IN/OUT |
