Put the power where you need it. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven Bose Professional PowerMatch line — now with added flexibility. Using innovative PowerShare technology, the amp shares power across all output channels and delivers 600 watts for installed applications. This means you can distribute the total 600 watts asymmetrically across all outputs or use any individual output to deliver full power. And with support for both low- and high-impedance loads up to 100V, it’s easy to adapt PowerShare amplifiers to a wide range of applications. ControlSpace Designer software allows for Ethernet-based configuration and quick setup of external control options. With onboard Dante® audio networking, you have the flexibility to place PowerShare amplifiers away from source locations and closer to loudspeakers. This unique set of features and technologies makes PowerShare one of the most versatile, high-performance amplifiers available today.

FEATURES

• PowerShare technology: Distribute the total 600 watts asymmetrically across all outputs using patented PowerShare technology, which allows each output to deliver full power. Instead of selecting amplifier power based on the needs of the largest zone, you now have the freedom to use total amplifier power in any application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.

• Load-independent outputs: Configure any channel for low-impedance (4-8 O) or high-impedance (70/100V) applications without bridging or using jumpers.

• Integrated Dante audio networking: Support four audio input channels from a Dante network and mix onboard analog inputs with digital Dante inputs as selected in ControlSpace Designer software.

• Dual Feedback Loop system: Improve performance and reliability. The Dual Feedback Loop system, inherited from the field-proven Bose Professional PowerMatch amplifier line, allows for continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion while protecting loudspeakers.

• ControlSpace networking: Configure using ControlSpace Designer software for inclusion into larger networked audio systems where end-user controllers and scheduling events can control amplifier parameters.

• Integrated Loudspeaker Processing: Adjust various parameters using ControlSpace Designer software: nine-band PEQs, matrix mixing, crossover, limiters, delay, mute/output polarity, and more.

• Auto-standby: Save power — PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.

Applications

Designed for a wide range of applications, including:

• Performing arts venues
• Places of worship
• Conference centers
• Retail stores
• Restaurants and bars
• Hospitality venues

SPECS

Technical Specification

• Channel Separation (Crosstalk)

• > 85 dB at 1 kHz, > 65 dB at 20 kHz

• Dynamic Range

• 100 dB at rated power, A-weighted

• Gain, High-Impedance

• 35 dB, 70V mode / 38 dB, 100V mode

• Gain, Low-Impedance

• 32 dB

• Maximum Peak Power, Symmetrical

• 300 W

• Maximum Peak Power, Asymmetrical

• 1200 W

• Rated Power, Asymmetrical

• 600 W

• SNR

• 100 dB (at rated power, A-weighted)

• Frequency Response

• 20 Hz – 20 kHz (±0.5 dB) at 1 W

• Number of Channels

• 4

• Rated Power, Symmetrical

• 150 W

• THD+N

• < 0.04% at 1 kHz, 4–8 O, 70V/100V

• Input Channels

• 4 balanced, line

• Connectors

• (1) 12-pin Euroblock

• Input Impedance

• 20 kO

• Maximum Input Level

• 20 dBu at 12 dBu sensitivity

• Sensitivity

• 4 dBu low, 12 dBu high

• Channels

• 4 Dante in

• Connectors

• (2) RJ-45 Dante in/thru

• Type

• 12-pin Euroblock

• Channels

• 4

• Connectors

• (1) 8-pin inverted Euroblock

• EMC

• This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.

• Current Draw, Idle

• 0.1 A at 120 VAC, 60 Hz / 0.06 A at 230 VAC, 50 Hz

• Current Draw, Inrush

• 8.0 A at 120 VAC, 60 Hz / 14.1 A at 230 VAC, 50 Hz

• Mains Connector

• IEC C14 inlet

• Mains Voltage

• 100–240 VAC (±10%), 50/60 Hz

• Protections

• High temperature, output short circuit, extra high frequency, excessively low/high AC line voltage

• AC Power Consumption

• 14 W standby, 700 W maximum

• Software Applications

• ControlSpace Designer 5.4 or later (Windows)

• Computer Interface Connection

• RJ-45 (Ethernet, 100 Mbps)

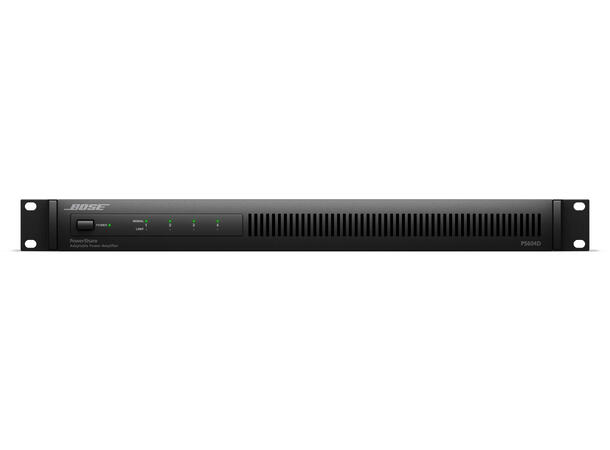

• Controls, Front Panel

• (1) power button

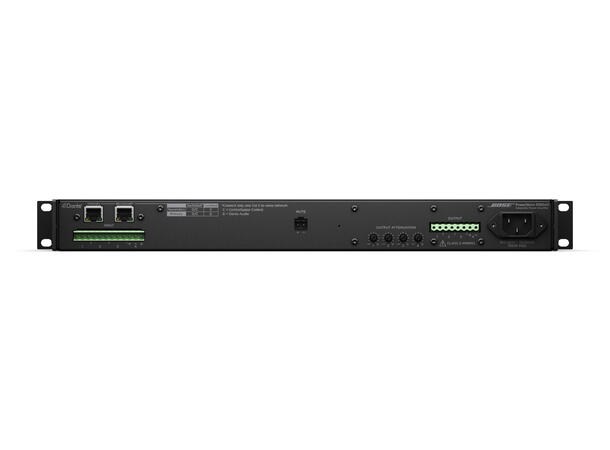

• Controls, Rear Panel

• Output attenuators, mute contact

• LED Status Indicators

• (1) power/status LED, (4) input signal LEDs, (4) output limit LEDs

• Delay

• 50 ms, Outputs 3–4 only

• Equalization

• Input EQ: 9-band parametric EQ (±18 dB), notch, shelving, high-pass, low-pass / band-pass crossover / loudspeaker EQ: 9-band parametric EQ (±18 dB), notch, shelving

• Crossover Types

• Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave

• A/D and D/A Converters

• 48 kHz / 24-bit

• Audio Latency

• < 1 ms, analog input to analog output

• DSP-Enabled

• Yes

• Limiters

• Peak voltage, RMS voltage

• Presets

• Bose Professional loudspeaker presets

• Processing Functions

• Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer, mute/output polarity inversion

• Colors

• Black

• Cooling System

• Microprocessor controlled, variable speed fans, left to right air flow

• Suspension/Mounting

• Rack-mounting

• Product Dimensions (H×W×D)

• 1.7 in × 19.0 in × 16.3 in (44 mm × 483 mm × 414 mm)

• Net Weight

• 14.1 lb (6.4 kg)

• Rack Spaces

• 1

• Shipping Weight

• 17.2 lb (7.8 kg)

Mechanical Diagrams

Product codes

• 813403-1310
• 120 V, US

• 813403-2310
• 230 V, EU

• 813403-5310
• 230 V, AU

• 813403-4310
• 230 V, UK

• 813403-3310
• 100 V, JP

Warranty Period

• 5 years

Included in Packaging

• (1) 2-pin Euroblock connector

• (1) 8-pin Euroblock connector

• (1) 12-pin Euroblock connector

• (1) installation guide

• (1) PowerShare PS604D

• (1) IEC power cord
