Dante 2CH digital audio and Line balanced analog level inputs
Dante 2CH digital audio, Line-balanced analog level, and AMP outputs
Built-in audio DSP processor, excellent signal-to-noise ratio, and ultra-low distortion rate
Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker installation.
In Lo-Z output mode, single channel 150W 8 O or dual channel 75W 4O/8O can be selected.
In Hi-Z output mode, a single channel 150W to 70V/100V can be provided.
Independent input gain, output EQ, and volume control
48KHz sampling rate, 24bit independent A/D and D/A converters
2x75W AMP out supports 4O/8O/70V/100V speaker
5-12V trigger input
Auto standby
Flexible control via RS-232, LAN, and Web GUI
Datasheet

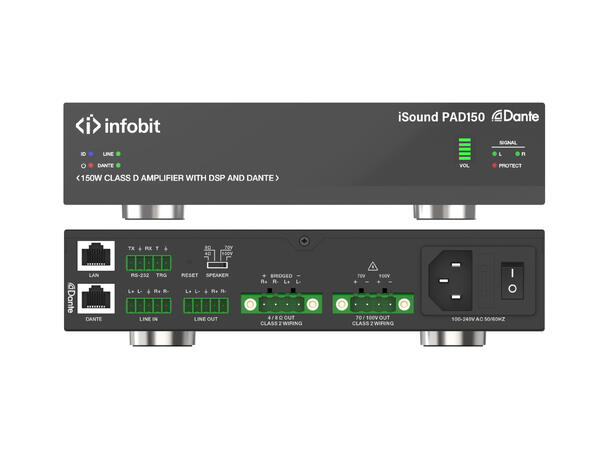

| Model | iSound PAD150 |
| Name | 150W Class D Amplifier with DSP and Dante |
| Input | 1x Dante Network audio input
1x LINE balanced stereo 0dBu/10kO input |
| Output | 1x Dante Network audio output
1x Stereo or constant voltage 70V/100V speaker output
1x LINE balanced stereo output |
| Input Sensitivity | Full power@0.775V (0dBu) |
| Output Power | DC power supply: 2x 75W@4O/8O;
1x 150W@8O;
1x 150W@70V/100V |
| Maximum Voltage Gain | 27-30dB SE/39-42dB BTL |
| Amplifier Type | D Class |
| Frequency Response | 20Hz ~ 20kHz @ ±3dB |
| Signal to Noise Ratio | 87dB 0dBu, 20Hz-10kHz |
| THD+N | THD+N (1KHz@1W) 0.04% |
| Control | RS-232, Web GUI |
| Video Network Bandwidth | 100M |
| Audio Format | LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS]
LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS]
DANTE [Digital audio 2×2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS]
70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS] |
| Transmission Distance | 328ft/100m |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |

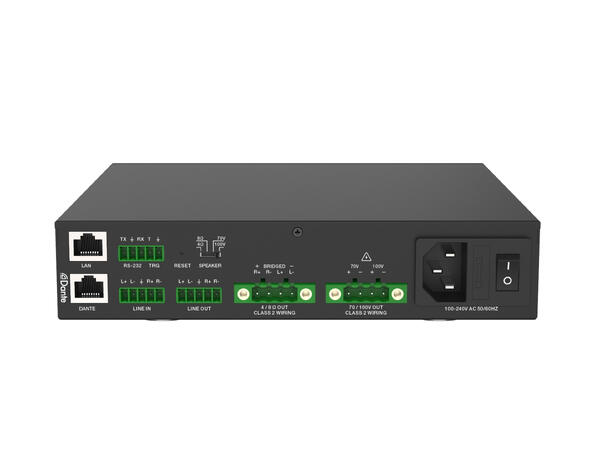

| Input connectors | 1x LINE IN [5pin-3.81mm Phoenix Connector]
1x DANTE [RJ45 connector] |
| Output connectors | 1x LINE OUT [5pin-3.81mm Phoenix Connector]
1x 4/8O AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm]
1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm] |
| Control connectors | 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier]
1x LAN [RJ45 connector] |
| Housing | Front panel: Aluminum; Rear case: Metal Enclosure |
| Color | Black |
| Dimensions | 240mm [W]×210mm [D]×44mm [H] |
| Weight | 1.88Kg |
| Power Supply | DC Input: AC100 – 240V 50/60Hz |
| Power Consumption | 150W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~90% RH (non-condensing) |
