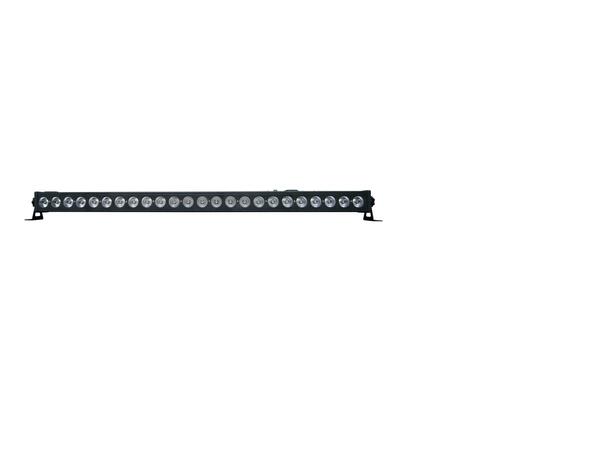

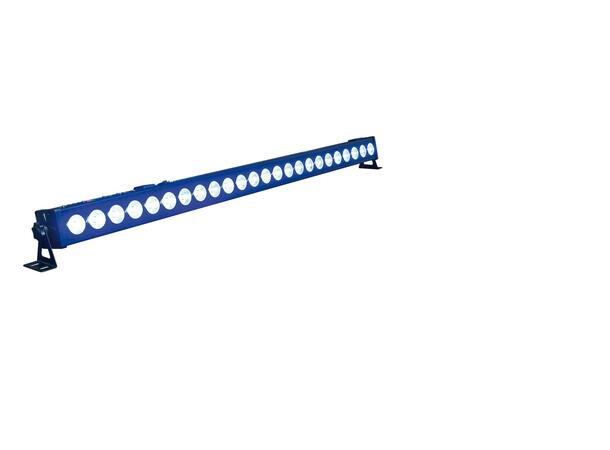

MBAR 4 72 BAT is a lighting bar which includes 24x 3W RGB (3 in 1) LEDs. These brilliant LEDs allow to obtain a rich colour spectrum mixing the red, green and blue colours.
The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as: manual level of each colour, strobe or inner effects.
MBAR 4 72 BAT integrates a rechargeable lithium-ion battery to operate autonomously.
The device includes several DMX modes (5, 8, 14, 26 & 50 channels) with individual colour dimming, built-in effects, and strobe function.
Main information
24 x 3W RGB LED 72W
5/8/14/26/50 DMX channels
Built-in rechargeable Lithium battery
25º beam angle
Light engine 24 LEDs RGB de 3 W/ 24 x 3 W RGB LED
Power 72 W
Beam angle 25º
DMX channels 5/8/14/26/50 canales DMX/ 5/8/14/26/50 channels
Operating modes DMX 512 /Auto/Manual/Audio/Master-Slave
Controls Configuration menu navigation buttons
Indicators 4-digit display

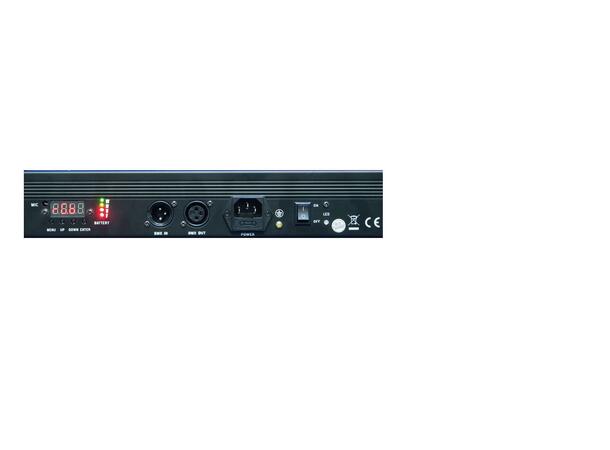

Connections Power: IEC for input and output; Signal: XLR3 for input and output
Housing material Aluminium
Colour Black
Rigging 2 alas de fijación/ 2 lateral fixation wings
Battery Lithium. 11.6 V, 7200 mA
Power supply AC100-240 V 50/60 Hz + rechargeable battery
Dimensions 1050 x 60 x 60 mm
Weight 2.75 Kg
