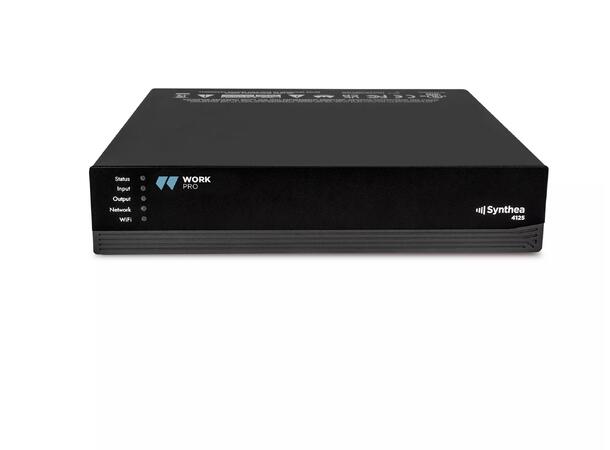

Compact four-channel 4 ohm installation amplifier (up to 125W per channel) or 250W on each of the two 100V/Bridge@8 Ohm line output.
Digital signal input and output for easy interconnection without conversions.
Dedicated DSP with full connectivity and control via stand-alone Wi-Fi. Ethernet and GPIO
Main information
*4x125W @ 4Ohm,
*2x250W @ 4Ohm Bridge,
*2x250W (100V/Bridge@8 Ohm)
*Control from it´s own WAP Access Point without the need for software downloads
*DSP matrix with 4 mono or 2 stereo inputs, 2 or 4 zone output and S/PDIF link to connect to other accsessorys
*Class D amplifier
| Channels | 4 LoZ / 2 HiZ |
| Low Impedance Power | 4 x 125W @ 4/8 Ohm |
| L100V Power | 2 x 250W |
| Audio input | 4 x Euroblock (Balanced) o 4 RCA (Unbalanced) IN/OUT SPDIF RCA |
| Frequency Response | 20Hz-20kHz |
| S/N Rate | >106 dB |
| Crossover | Butterworth, Bessel, Linkwitz-Riley |
| Equalization | Parametric 10 band, LPF, HPF, BPF |
| Input power | AC 100/240V, 50/60Hz, 75W |
| Dimensions | 220 x 44 x 320mm |
| Weight | 2,8kg |

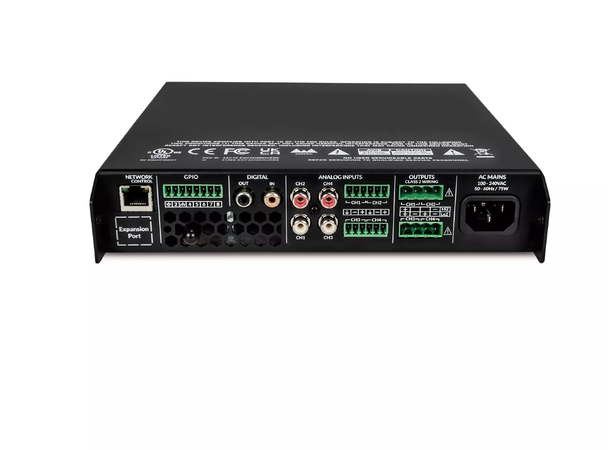

| Connections | Euroblock/RCA Inputs, Euroblock Speaker Output, Euroblock GPIO, RJ45, RCA S/PDIF IN/OUT |
