Zenith 1700 is a 850W @ 4 Ohm 2-channel professional audio amplifier,
with switching power supply, built in a 2-rack-unit metal enclosure.
It has balanced inputs in XLR3 format and outputs with XLN4 connectors.
It has selectors for input sensitivity and operating mode.
It also has protection systems against short circuit, temperature, DC, VHF and constant high frequency signal.

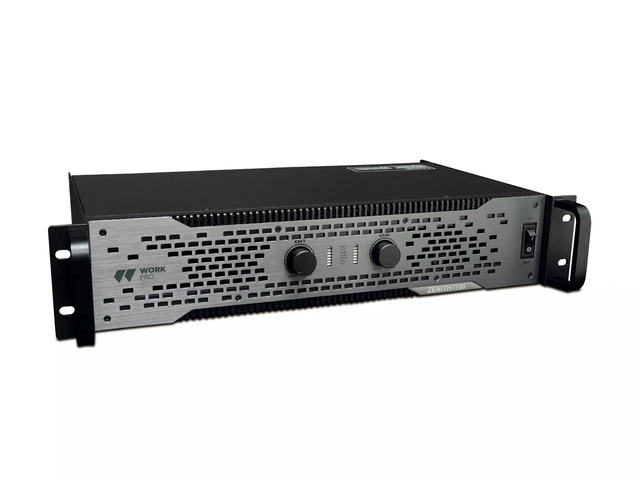

The front panel has a power switch, independent volume controls for each channel, and power, signal, clip and protection indicators.
Main information
Stereo / Bridge / Parallel modes.
Volume control and level meter.
Signal, clip and protection indicator LEDs.
2 19-inch rack units.
Product main measures (m)
0.31 x 0.48 x 0.09
Type
Class D. Switching source
No. Channels
2
W/Ch @ 8 Ohm
500 W
W/Ch @ 4 Ohm
850 W
W Bridge @ 8 Ohm
1700 W
Frequency Range
20 Hz - 20 KHz
THD+N
<0.15 %
S/N Rate
>100 dB
Damping Factor
>500
Gain
38,2 dB
Input Impedance
20 KOhm (balanced) / 10 KOhm (unbalanced)
Input Sensitivity
0.775 V / 1 V / 32 dB

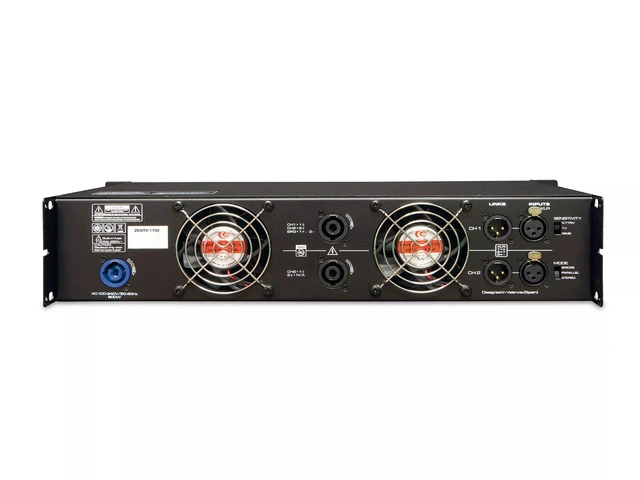

Connections:
Power: Powercon;
Signal: XLR3 for input and output;
AMP out: NL4
Protections
Soft start, VHF, DC, Overload, Clip, Limiting, Short-circuit, Over-temperature, Progressive volume
Cooling:
Fans Air flow from front to rear
Power supply:
AC 100-240 V, 50/60 Hz
Power Consumption:
800 W
Dimensions
483 x 88 x 305.5 mm
Weight
7.6 Kg
