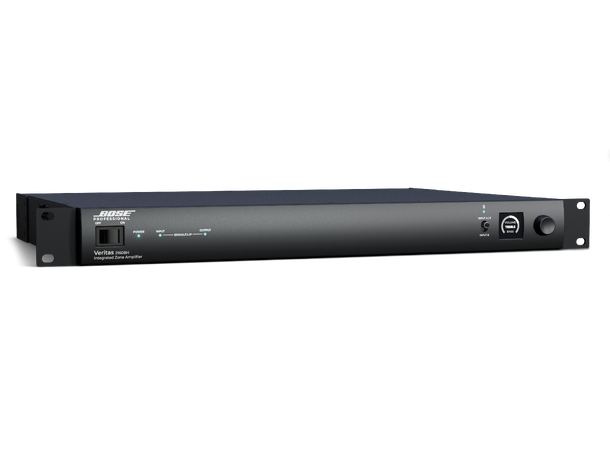

BOSE Veritas 2160BH

Varenr: 892121-2110
BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH BOSE Veritas 2160BH
eks. mva

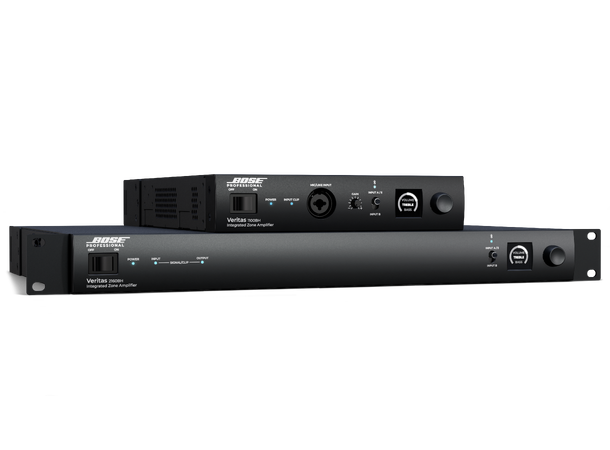

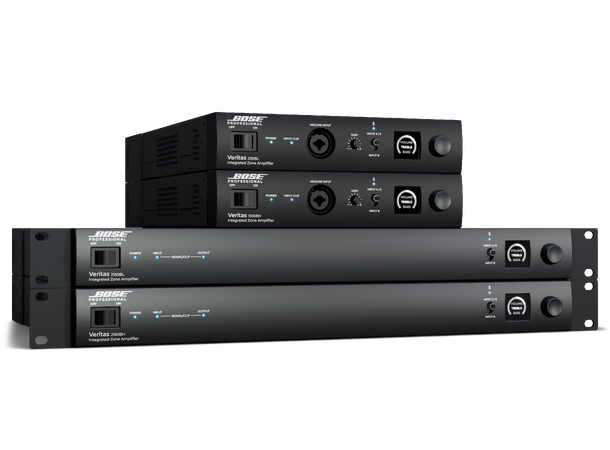

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.

FEATURES

  • Premium amplification with advanced DSP for optimized performance

  • Bluetooth connectivity and RCA connectivity—no wire splicing required

  • Intuitive front-panel OLED screen for easy setup and control

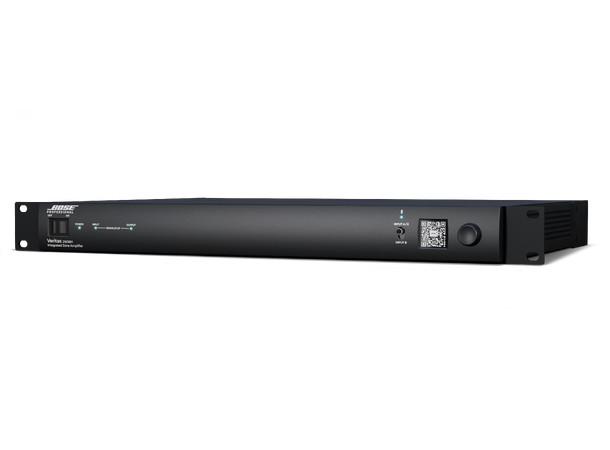

  • Embedded quick-start QR code in the OLED screen simplifies installation

  • Supports high-impedance (70/100V) applications

  • Multi-zone flexibility—support for up to two independent zones

  • Remote level control with Bose Professional or third-party wall controllers

  • Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes

  • Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability

  • Opti-Voice paging feature ensures clear speech intelligibility

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones

SPECS

Technical Specification

AMPLIFICATION

  • Channel Separation (Crosstalk)

  • = -58 dBu below rated power, 1 kHz

  • Dynamic Range

  • 88 dB

  • Frequency Response

  • 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference

  • Rated Power, Symmetrical

  • 2 x 160 W at 70/100V

  • THD+N

  • = 0.5% at rated power

AUDIO INPUTS, ANALOG

  • Adjustment Range

  • 0 dB to -30 dB (line), 0 dB to +50 dB (page)

  • Input Channels

  • (2) balanced line, (2) unbalanced line, (1) balanced mic/line

  • Connectors

  • (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock

  • Input Impedance

  • 20 kO (line), 2 kO (page)

  • Input Range

  • -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)

  • Maximum Input Level

  • 22 dBu (line), 12 dBu (page)

  • Nominal Input Level

  • 4 dBu (line), -38 dBu (page)

  • Sensitivity

  • -8 dBu (line), -58 dBV (page)

AUDIO OUTPUTS, ANALOG

  • Channels

  • (2) loudspeaker, (1) unbalanced line

  • Connectors

  • (2) 2-pin inverted Euroblock, (1) RCA stereo pair

  • Nominal Output Level

  • 2 × 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary)

ELECTRICAL

  • Mains Connector

  • IEC C14 inlet

  • Mains Voltage

  • 100–240 VAC (±10%), 50/60 Hz

  • Protections

  • High temperature, output short circuit, excessively low/high AC line voltage

  • AC Power Consumption

  • 13.6 W standby, 500 W maximum

INDICATORS AND CONTROLS

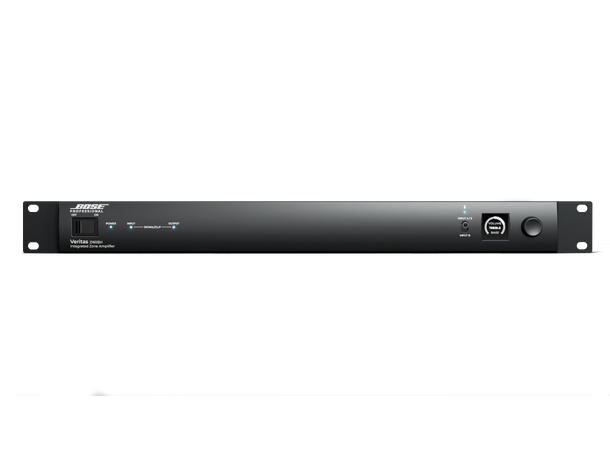

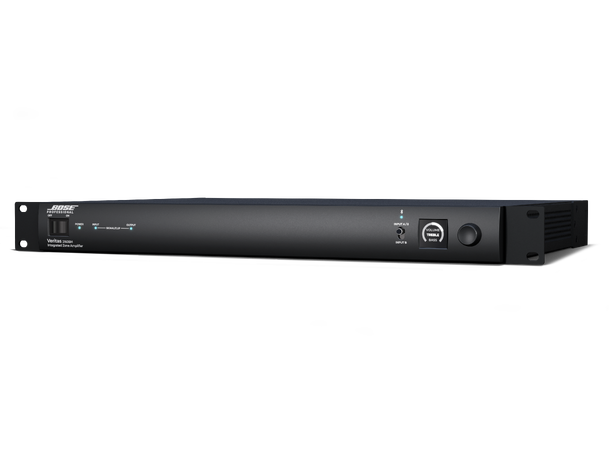

  • Controls, Front Panel

  • Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

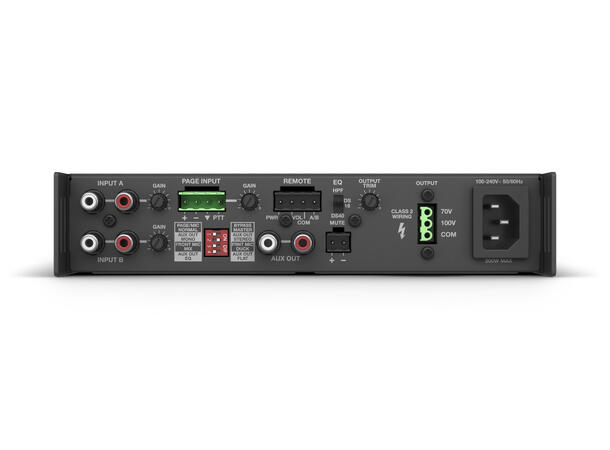

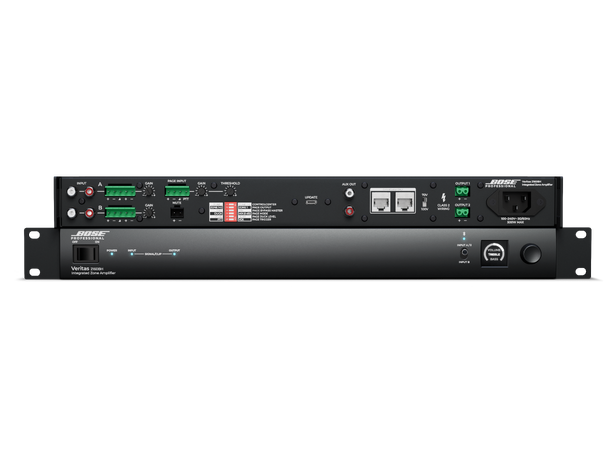

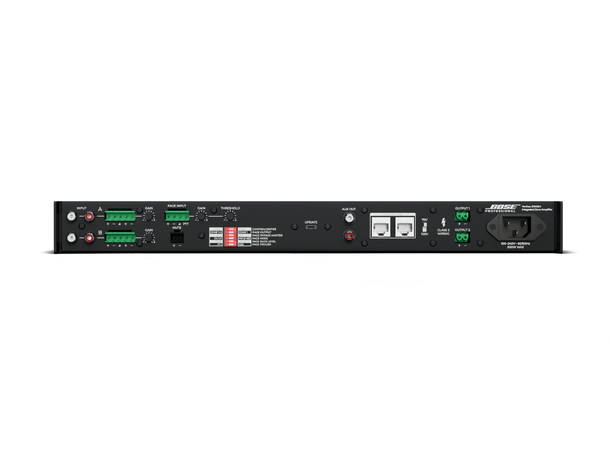

  • Controls, Rear Panel

  • Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports

INTEGRATED DSP

  • A/D and D/A Converters

  • 48 kHz / 24-bit

  • Audio Latency

  • 10.4 ms (any input to speaker output or aux output)

  • Presets

  • 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer

  • Processing Functions

  • Loudspeaker EQ, Opti-Voice paging, Dynamic EQ

PHYSICAL

  • Cooling System

  • Fan system, left-to-right airflow

  • Product Dimensions (H×W×D)

  • 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)

  • Net Weight

  • 4.4 kg (9.7 lb)

  • Shipping Weight

  • 5.8 kg (12.8 lb)

Product codes

  • 892121-1110
  • VERITAS 2160BH 120V US
  • 892121-2110
  • VERITAS 2160BH 230V EU
  • 892121-4110
  • VERITAS 2160BH 230V UK
  • 892121-3140
  • VERITAS 2160BH 100V JP
  • 892121-2140
  • VERITAS 2160BH 230V CN
  • 892121-5110
  • VERITAS 2160BH 240V AU

Included in Packaging

  • (4) mounting feet with pins

  • (2) 5-pin Euroblock connectors

  • (1) 4-pin Euroblock connector

  • (3) 2-pin Euroblock connectors

  • (1) power cord

  • (1) installation guide
