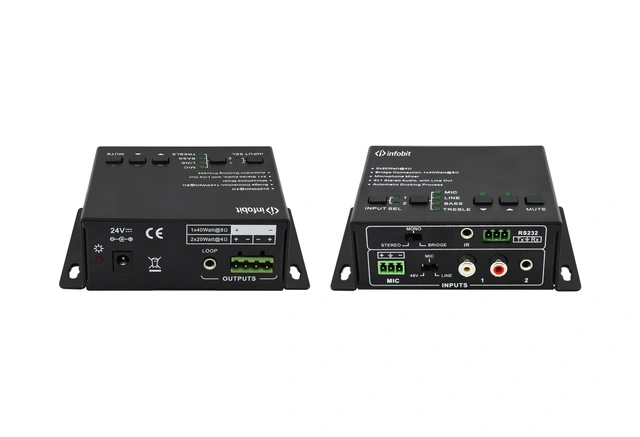

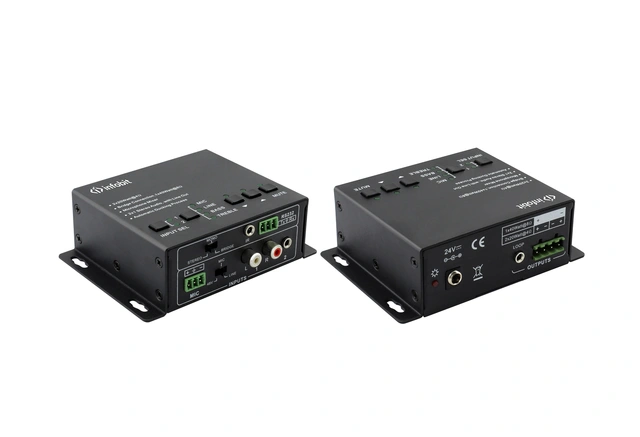

iSound PA20

2 x 20 Watt @ 4 0hm as the default amplifier output

Bridge connection function. Users can switch the PA20 to be 1 x 40 Watt @ 8 0hm by bridge connection

Two stereo audio inputs, switchable by panel button, IR remote and RS232

Volume / Bass / Treble controllable by panel buttons IR remote and RS232

MIC port can support balanced/unbalanced signals and suppress external noise effectively. Line audio output via 3.5mm jack, with controllable volume

Dual-mono up the stereo audio to two times mono audio. MIC mixer function

The microphone will be mixed into the line audio output, and be controlled separately

MIC input supports 48V phantom power, dynamic MIC, and Wireless MIC

Auto noise gate. It keeps detecting the audio and MIC input, and will mute the output when there is no input

Ultra-low inrush current, no need for power sequencing, and this allows multiple iSound PA20 to be powered on simultaneously without overloading power circuits

Convection cooled, a fan is not needed

Anti-static case design: providing good protection for long-term and stable performance

Features

Model	iSound PA20
Name	Dual 20W Audio Amplifier
Audio Input
Input	(2) Stereo Audios, (1) MIC
Input Connector	(2) RCA, (1) 3.5mm Jack,
(1) Pluggable Terminal Block (3P, 3.81mm)
Audio Output

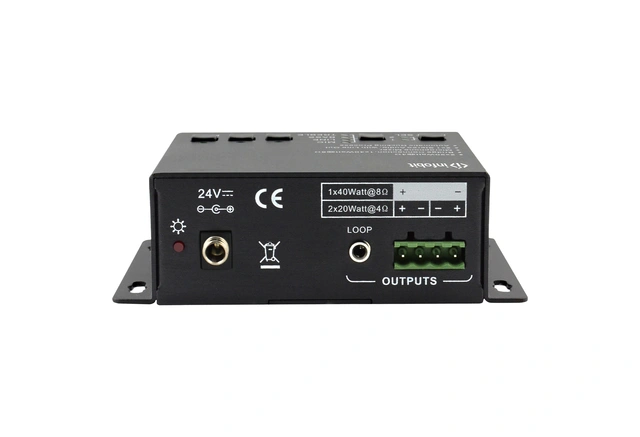

Output	(1) Amplifier, (1) Stereo Audio
Output Connector	(1) 3.5mm Jack,
(1) Pluggable Terminal Block (4P, 5.08mm)
Audio Performance
Input Impedance	>10kO
Output Impedance	50O Analog Output; 4/8O Speaker Output
Maximum Rated Power Output	2×20 watts (4 Ohms)
Frequency Response	20Hz ~ 20kHz
Common Mode Rejection Ratio (CMRR)	>70dB@20Hz~20kHz
Signal to Noise Ratio (SNR)	80dB (Max)
Total Harmonic Distortion + Noise (THD+N)	1% at 1kHz; 0.3% at 20kHz at Nominal Level
General
Power Supply Input Voltage	100-240v AC at 50/60 Hz
Power Supply	24V DC at 2.71A
Maximum Power Consumption	45 watts
Operation Temperature	0? ~ +40?
Storage Temperature	-10? ~ +60?
Storage Humidity	10%-90%
Dimensions (W*H*D)	123mm x40mm x87mm
Net Weight	720g
