Mark Sone & Mikseforsterker 100V/8Ohm


Varenr: 99OFP138
Mark Sone & Mikseforsterker 100V/8Ohm 240W@4Ohm,70/100V,Bluetooth,4-soner Mark Sone & Mikseforsterker 100V/8Ohm 240W@4Ohm,70/100V,Bluetooth,4-soner
eks. mva

Amplifier 240 W @ 4 Ohm, L70 / 100V

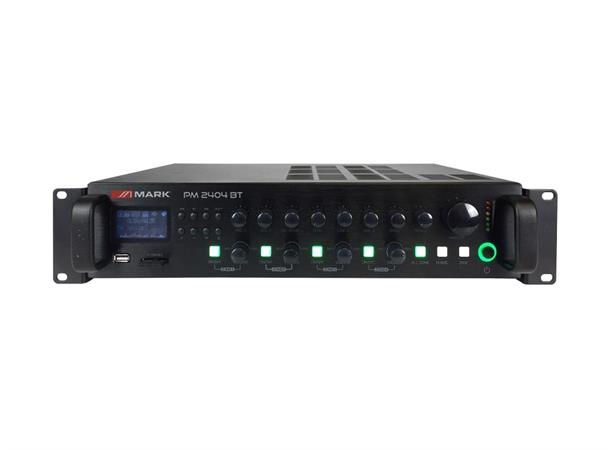

PM 2404 BT is a 240W power installation amplifier. It allows its placement both in low impedance installations (up to 4 Ohm), 100V line. In addition, it has 4 independent zones that can be activated individually or together. It incorporates 3 microphone inputs (2 with phantom power), and another 3 of LINE level. As digital audio sources, it incorporates an MP3 player that accepts files from its USB and SD / MMC ports, as well as FM radio and bluetooth connectivity. For emergency announcements, it has chime terminals for announcements and contacts for alarm systems, as well as terminals for emergency DC power.


  • 4 independent zones.
  • MP3 player and FM radio.
  • USB, SD / MMC and Bluetooth port.
  • Chime Terminals, tel. paging and alarm.
TypeClass A / B, Low Impedance, 70/100 V Line
Power240 W
Frequency Response20 Hz - 20 KHz
THD+N< 0.5 %
S/N ratio> 90 dB
Crosstalk> 70 dB

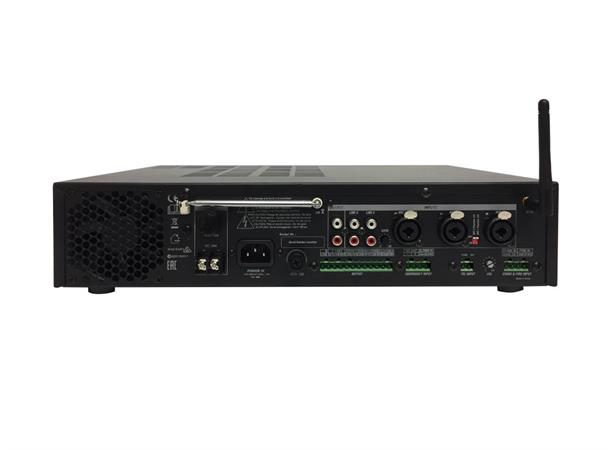

ConnectorsMicro / line: 3 x XLR3 / Jack combi; Stereo line: 2 x RCA pair; Emergency: euroblock; Tel: euroblock 2; Alarm: euroblock 4; Emergency: euroblock 4; Amp out: euroblock
ControlsPlayer control, Independent volume for microphones and stereo lines, Selector and independent volume for each zone, Master volume
ProtectionsShort circuit, DC, overtemperature, overload
Other functionsEco effect
Power supplyAC 230-240V, 50/60 Hz
Dimensions483 x 88 x 320 mm
Weight9.2 Kg
