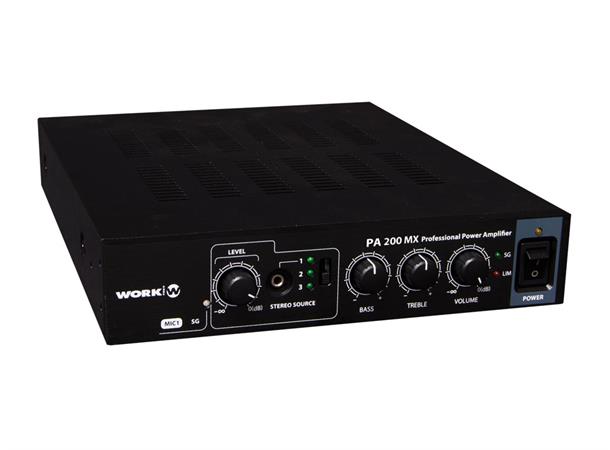

Mikseforsterker fra Work. 2 x 100W @ 8/16 Ohm, 200W L70 / 100V
Mikse/multiforsterker for møterom, klasserom, kantiner etc. Her kan man velge mellom stereo i 8Ohm eller mono 100V oppsett med tak-eller vegghengte høyttalere. Med Bluetooth, 1xstereo 3.5mm(minijack) + 2x stereo phono(RCA)innganger, 1x mikrofon inngang(ikke 48V),line out til sub/teleslynge.
Feedback begrensning og mikrofon prioritet via dipswitcher på baksiden.
Features
- Switch mode power supply.
- 3 LINE input with selector and own volume.
- Bluetooth.
- RJ45 (RS485 commands).
| Other functions |
Bluetooth, RS485 commands, antifeedback, micro priority |
| Power supply |
100-240 V - 50/60Hz |
| Dimensions |
215 x 48 x 264 mm |
| Weight |
2.3 Kg |
| Type |
Low impedance / 8/16 Ohm), Line 70/100 V |
| Power |
2 x 100W @ 8 Ohm / 200W (70/100V Line) |
| THD+N |
<0.1% @ 1 kHz, 15W, 8 Ohm / 16 Ohm, <0.2% 1 kHz, 30W, 70V / 100V |
| Frequency Range |
20 Hz - 20 KHz |

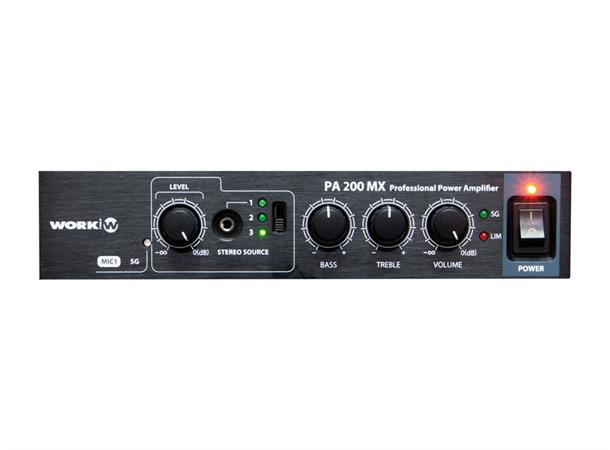

| Controls |
Line volume, Mic gain, Tone control (bass, treble), Master volume, Function selector |

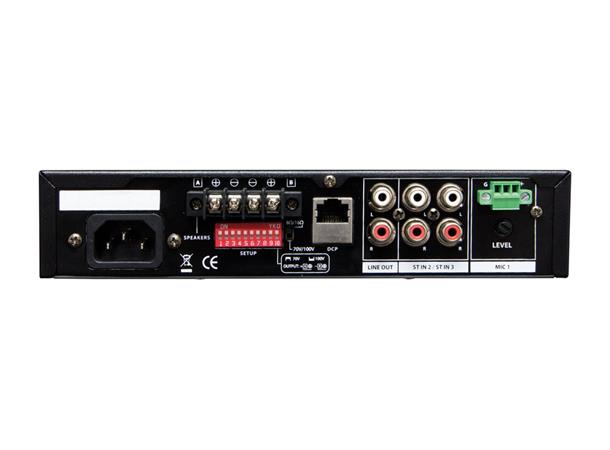

| Connections |
Mic: 3 pin euroblock, Line in: RCA, Minijack, Line out: RCA, Amp out: terminals, RS485: RJ45 |
