The Bose Professional AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose Professional DSP via a shielded Cat 5 cable. Each card includes a through connection for daisy-chaining multiple AmpLink amplifiers.

FEATURES

• AmpLink 24-channel digital audio transport

• Quick-connect RJ-45 connections on shielded CAT 5 cable

• Thru connection to daisy-chain up to 10 m between products

• 3-position bank select switch chooses 8 consecutive AmpLink channels the amplifier will amplify

• Each daisy-chained amplifier can choose either the same, or a different, bank of channels

• AmpLink can daisy-chain up to 8 amplifiers

• Any combination of AmpLink amplifiers can be daisy-chained.

Applications

Designed for a wide range of applications, including:

• Performing arts venues
• Hotels and conferencing facilities
• Religious and worship facilities
• Health clubs
• Retail and shopping centers
• Sports venues
• Schools and universities

SPECS

Technical Specification

• Channels

• 24 AmpLink in

• Connectors

• (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru

• Cable Requirements

• Cat 5, shielded TIA/EIA 568B straight cable or equivalent

• Maximum Cable Length

• 32 ft (10 m)

• LED Status Indicators

• (2) network speed LEDs, (2) Link/Act LEDs

• Audio Latency

• 24 ns, thru

• Sample Rate / Bit Depth

• 48 kHz / 24-bit

• Colors

• Black

Product codes

• 772238-0110

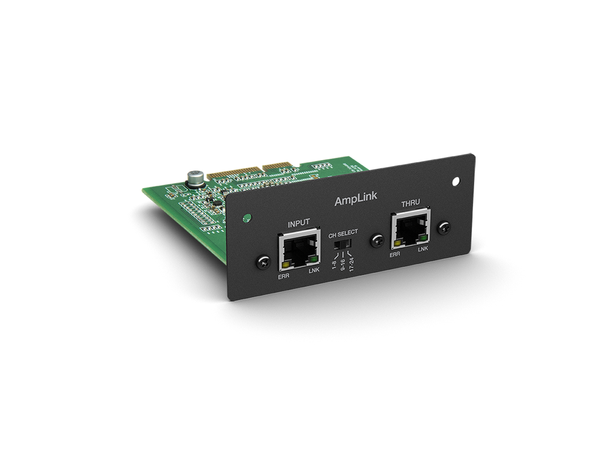

• PowerMatch AmpLink 24-channel input card

Included in Packaging

• (1) PowerMatch expansion card

• (1) installation guide
