The Dante network card for PowerMatch configurable professional power amplifiers provides 8 input channels of low-latency digital audio using the Dante audio networking solution from Audinate®. Eight output channels are available for diagnostic monitoring from remote locations.

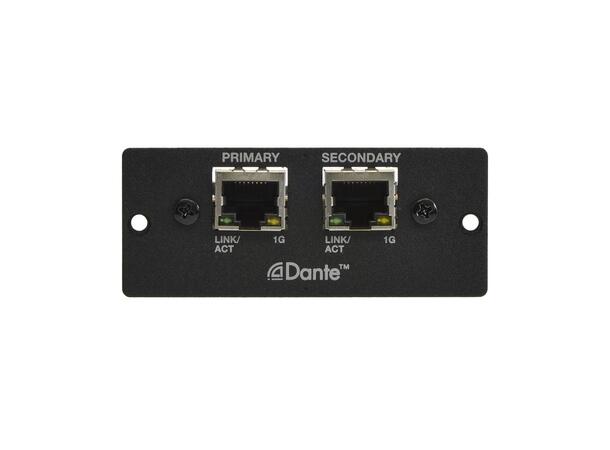

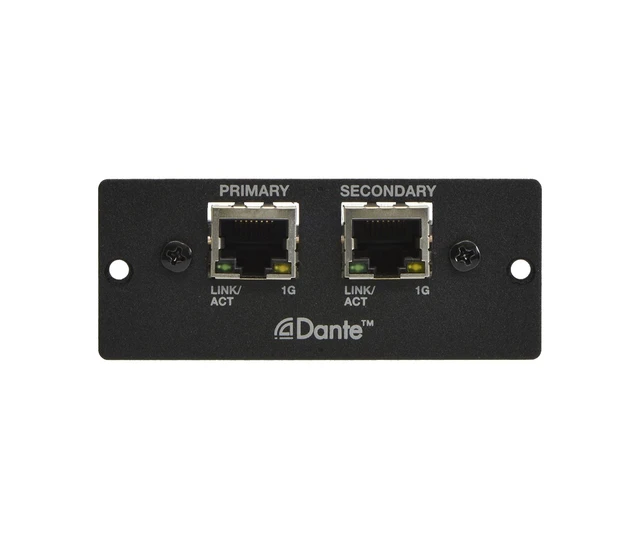

The Dante network card is installed into the digital expansion slot of the amplifier and includes a primary and secondary Gigabit Ethernet port. The secondary port can be configured for switched (default), redundant, or filtered for legacy product network connections. Up to 10 devices can be daisy-chained using the switched port configuration.
FEATURES
8 × 8 channel I/O
Diagnostic audio monitoring bus
Gigabit Ethernet connections
Port mode options for networking flexibility
Supports redundant connections
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Hotels and conferencing facilities
- Religious and worship facilities
- Health clubs
- Retail and shopping centers
- Sports venues
- Schools and universities
SPECS
Technical Specification
AUDIO INPUTS/OUTPUTS, DIGITAL
Channels
8 Dante in × 8 Dante out
Connectors
(2) RJ-45 Dante in/thru
INDICATORS AND CONTROLS
INTEGRATED DSP
Sample Rate / Bit Depth
48 kHz / 24-bit
PHYSICAL
Product codes
- 359844-0020
- PowerMatch Dante network card
Included in Packaging
