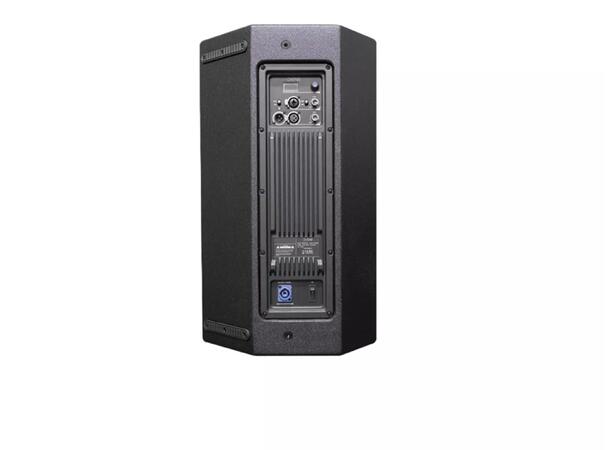

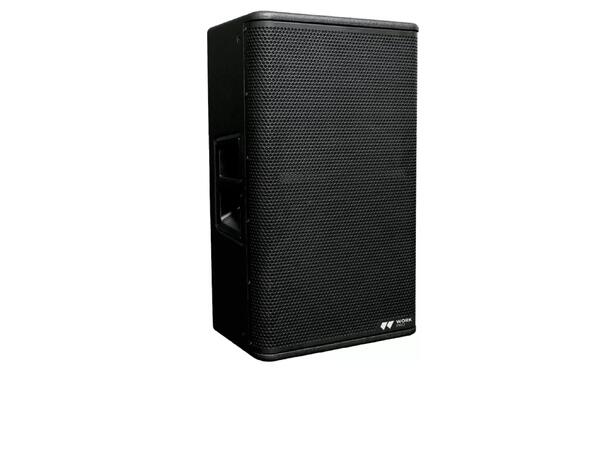

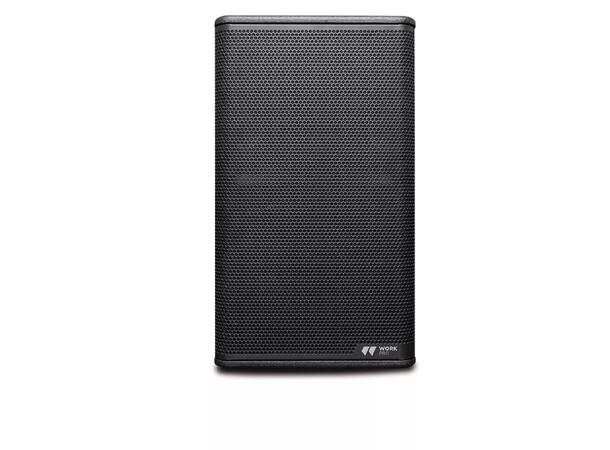

ENTAR 12A is a two-way self-powered loudspeaker that incorporates a 1000W amplifier, made of wood.
It consists of a 12" woofer with a 2.5" voice coil and a 1.35"compression driver, and incorporates a signal processing DSP.
Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support.
It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.
Type
2-Way.
Class D amplifier
Power
Amplifier 1000 W
LF Transducer
12" Woofer; 2.5" Voice Coil
HF Transducer
1.35" compression driver
DSP
4 Presets,
3 HPF Filters, Bass / Treble Curve Adjustment
SPL Max
128 dB
Coverage Angle
(H x V) 86º x 54.5º
Frequency Range
50 Hz - 20 KHz
Connections
1 x Combi XLR3/Jack TRS 1/4" female, 1 x XLR3 female, 1 x XLR3 male
Enclosure material
Plywood and metal grille
Inserts / Rigging
Insertion: 35 mm - 0°/10° angulation;
Rigging: sections for rigging rail and fixing points
Power supply
AC 100 - 240 V / 50 - 60 Hz
Colour
Black
Dimensions
630 x 360 x 354 mm
Weight
20.1 Kg
