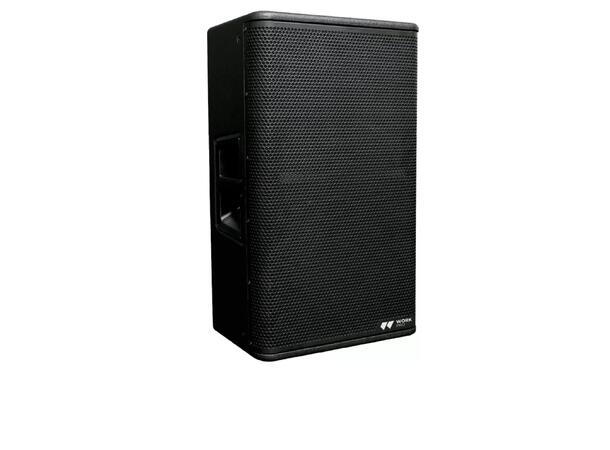

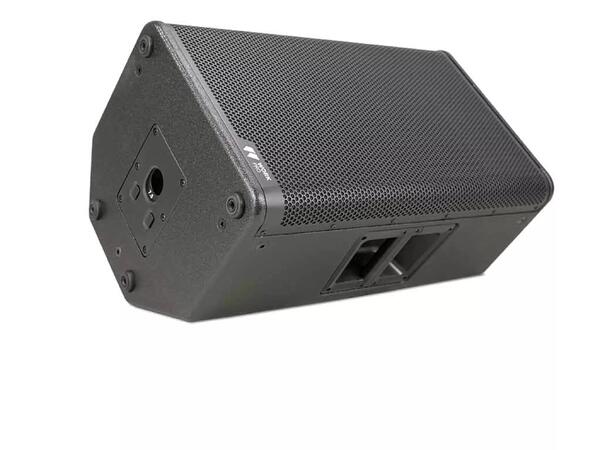

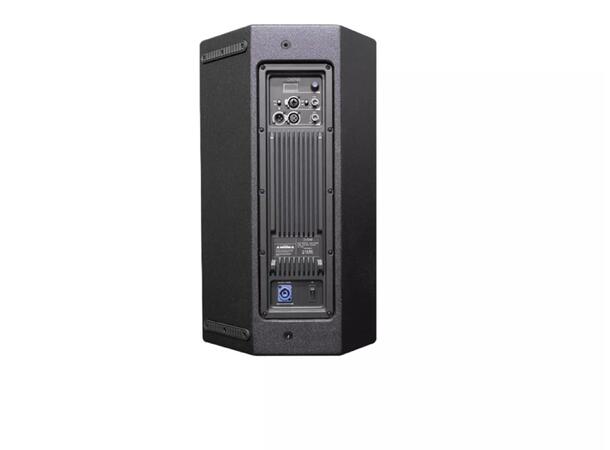

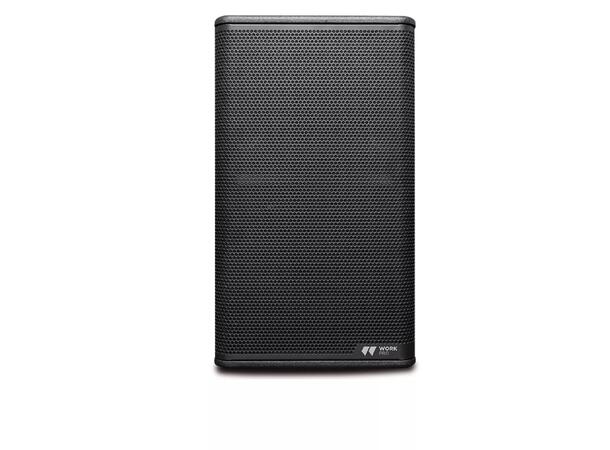

ENTAR 10A is a two-way self-powered loudspeaker that incorporates a 700W amplifier, made of wood.
It consists of a 10" woofer with a 2." voice coil and a 1.35"compression turnable driver, and incorporates a signal processing DSP.
Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support.
It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.
Type
2-Way.
Class D amplifier
Power
Amplifier 700 W
LF Transducer
10" Woofer; 2." Voice Coil
HF Transducer
1.35" turnable compression driver
DSP
4 Presets,
3 HPF Filters, Bass / Treble Curve Adjustment
SPL Max
126 dB
Coverage Angle
(H x V) 85,2º x 53.5º
Frequency Range
60 Hz - 20 KHz
Connections
1 x Combi XLR3/Jack TRS 1/4" female, 1 x XLR3 female, 1 x XLR3 male
Enclosure material
Plywood and metal grille
Inserts / Rigging
Insertion: 35 mm - 0°/10° angulation;
Rigging: sections for rigging rail and fixing points
Power supply
AC 100 - 240 V / 50 - 60 Hz
Colour
Black
Dimensions
560 x 325 x 310 mm
Weight
14.2 Kg
