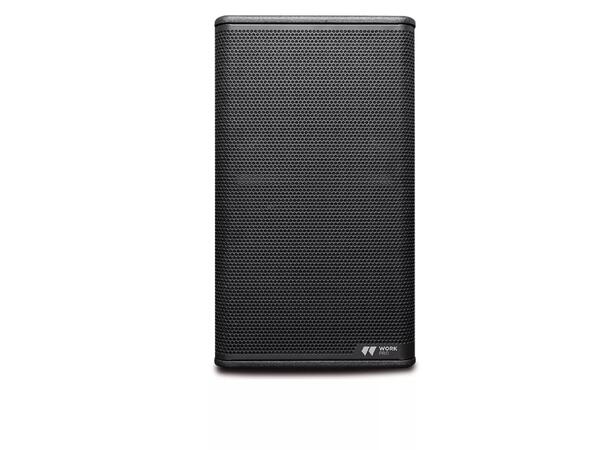

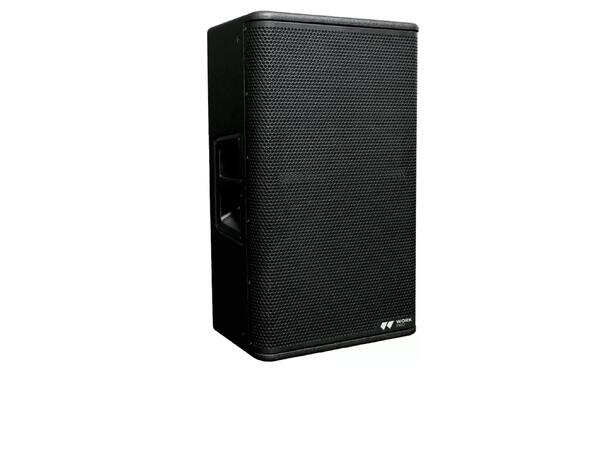

ENTAR 8A is a two-way self-powered loudspeaker that incorporates a 700W amplifier, made of wood.
It consists of a 8" woofer with a 1,5." voice coil and a 1"compression turnable driver, and incorporates a signal processing DSP.
Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support.

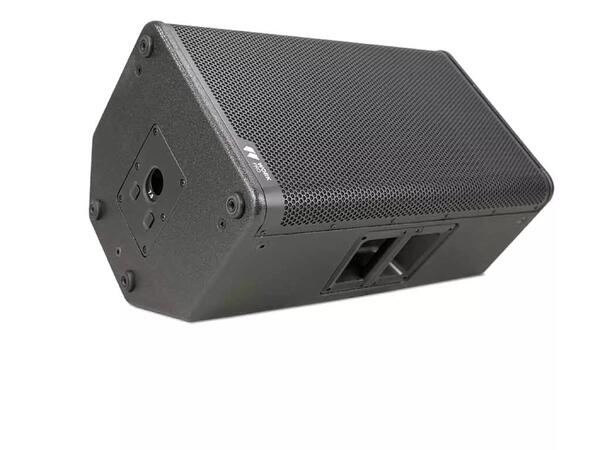

It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 1 Mic/Line input with level control.
Type: 2-Way. Class D amplifier
Power: Amplifier 700 W
LF Transducer: 8" Woofer; 1,5." Voice Coil
HF Transducer: 1" turnable compression driver
DSP: 4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment
SPL Max: 124 dB
Coverage Angle: (H x V) 85,2º x 53.5º
Frequency Range: 70 Hz - 20 KHz

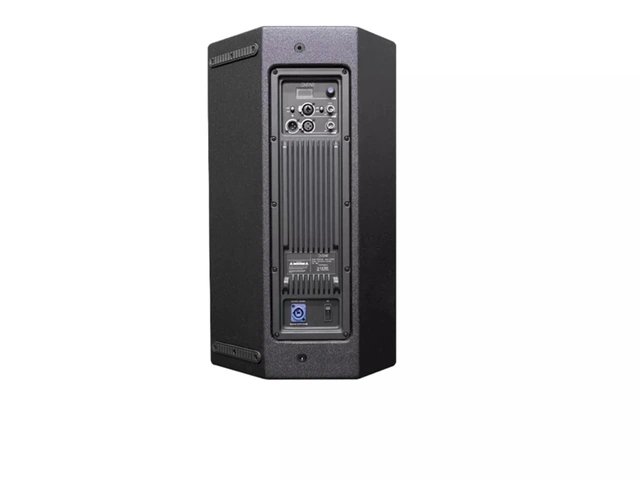

Connections:
1 x Combi XLR3/Jack TRS 1/4" female,1 x XLR3 male
Enclosure material: Plywood and metal grille
Inserts / Rigging:
Insertion: 35 mm - 0°/10° angulation;
Rigging: sections for rigging rail and fixing points
Power supply: AC 240 V / 50 - 60 Hz
Colour: Black
Dimensions: 464.5 x 250 x 240 mm
Weight: 11.5 Kg
