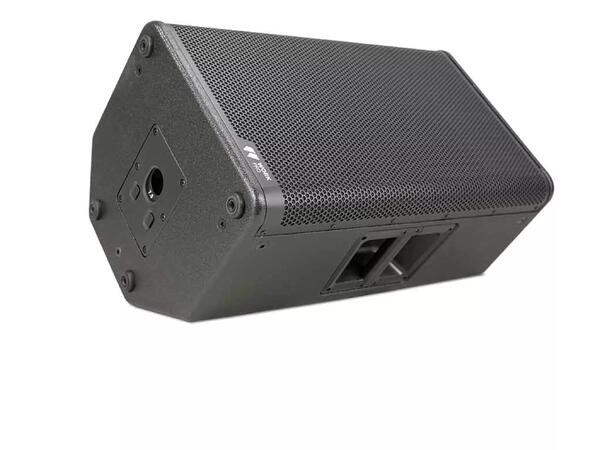

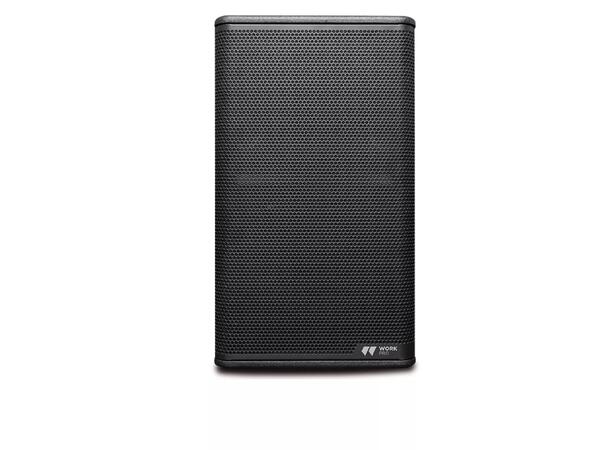

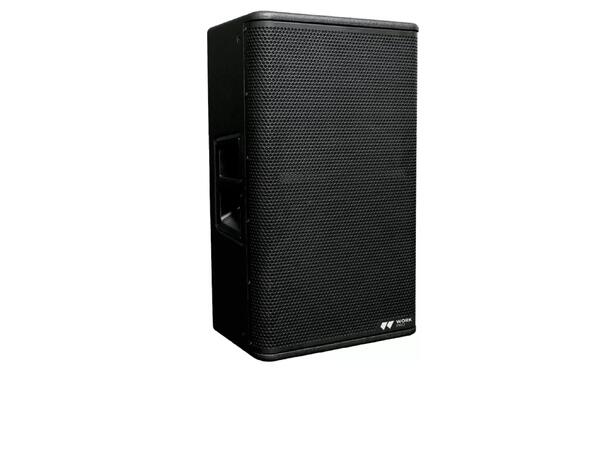

ENTAR 10 is a passive two-way loudspeaker with 250 Wrms at 8 Ohm,
made of wood. It is composed of a 10" loudspeaker with a 2" voice coil and a 1.35" Turnable compression driver,
and incorporates XLN4 connections. It has an insertion socket for a 35 mm support that allows 0º/10º angulations and rigging fixation points.
Thanks to its design, it can also be used as a floor monitor.
Main information
500 W @ 8 Ohm.
10-inch Woofer + 1.35-inch Driver.
Made of plywood.
Black color.
Product main measures (m)
0.31 x 0.31 x 0.56
Type
2 ways. Passive.
Power
250 W Rms
Nominal Impedance
8 Ohm
LF Transducer Woofer 10";
Voice coil 2"
HF Transducer
1.35" Turnable compression driver
Sensitivity
(1W @ 1m) 94 dB
SPL Max
121 dB
Coverage Angle
(H x V) 85,2º x 53.5º
Frequency Range
57 Hz - 20 KHz

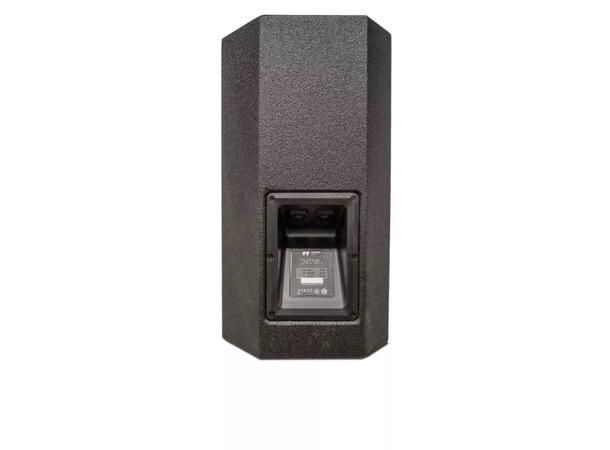

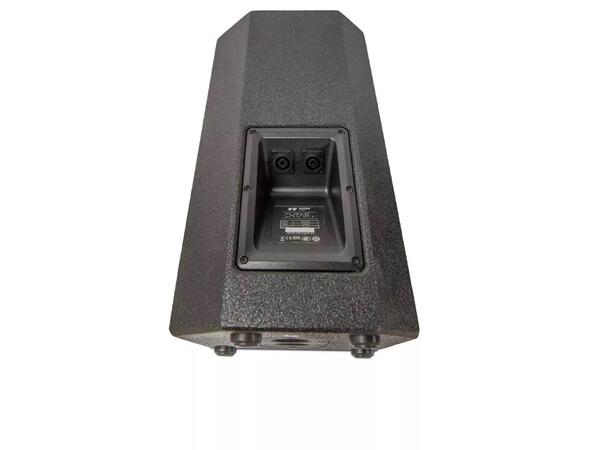

Connections
2 x XNL 4 (input and link)
Enclosure material
Plywood and metal grill
Inserts / Rigging
Insertion: 35 mm - 0° / 10° angulation;
Rigging: attachment points
Colour
Black
Dimensions
559,5 x 310 x 305 mm
Weight
13 Kg
Length(m) Width(m) Height(m) Weight(kg)
Speaker 0.42 0.44 0.73 23.00
Box 0.56 0.56 0.85 28.60
