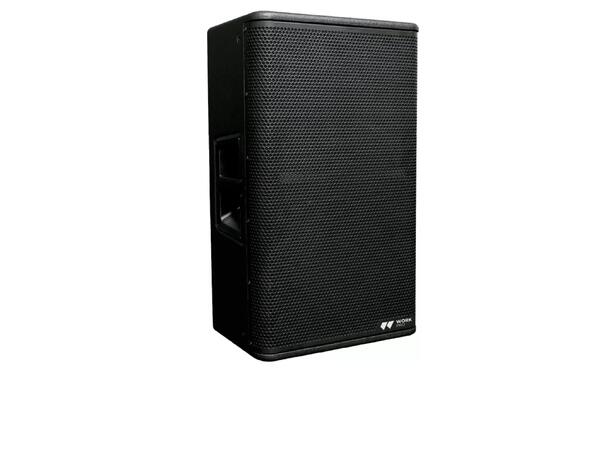

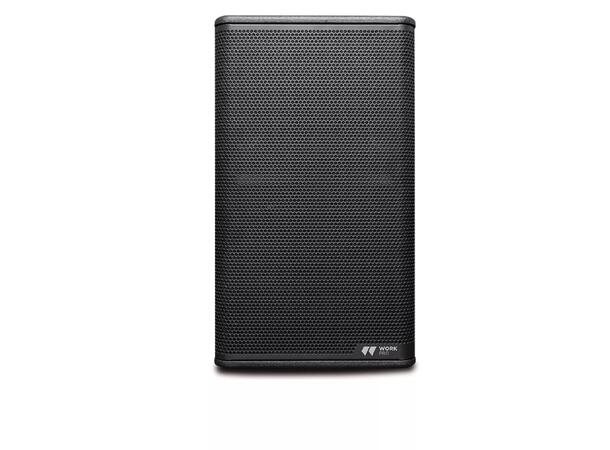

ENTAR 12 is a passive two-way loudspeaker with 300 Wrms at 8 Ohm,
made of wood. It is composed of a 12" loudspeaker with a 2.5" voice coil and a 1.35" compression driver,
and incorporates XLN4 connections. It has an insertion socket for a 35 mm support that allows 0º/10º angulations and rigging fixation points.
Thanks to its design, it can also be used as a floor monitor.
Main information
700 W @ 8 Ohm.
15-inch Woofer + 1.35-inch Driver.
Made of plywood.
Black color.
Product main measures (m)
0.42 x 0.44 x 0.73
Type
2 ways. Passive.
Power
300 W Rms
Nominal Impedance
8 Ohm
LF Transducer Woofer 12";
Voice coil 2.5"
HF Transducer
1.35" compression driver
Sensitivity
(1W @ 1m) 95 dB
SPL Max
123 dB
Coverage Angle
(H x V) 86º x 54.5º
Frequency Range
52 Hz - 20 KHz

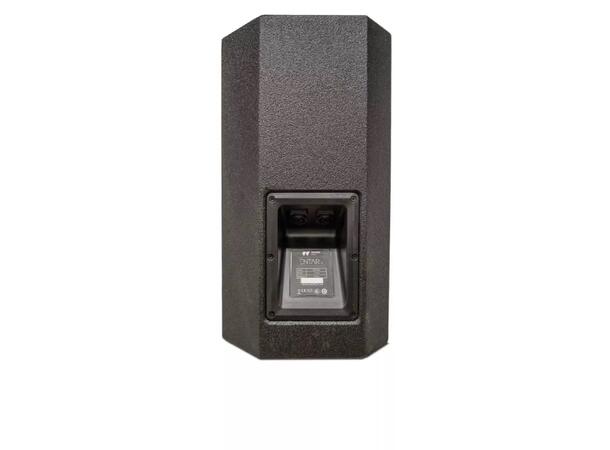

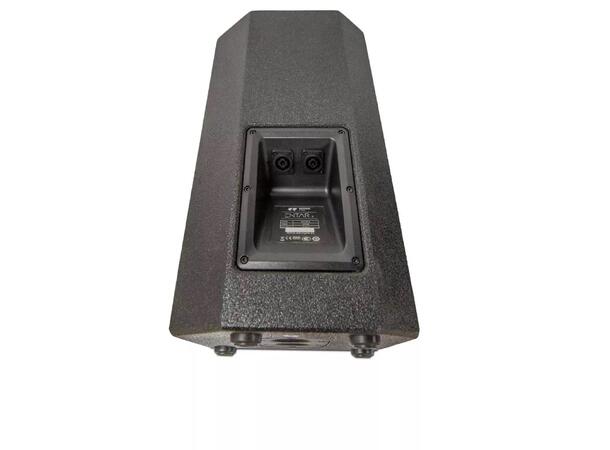

Connections
2 x XNL 4 (input and link)
Enclosure material
Plywood and metal grill

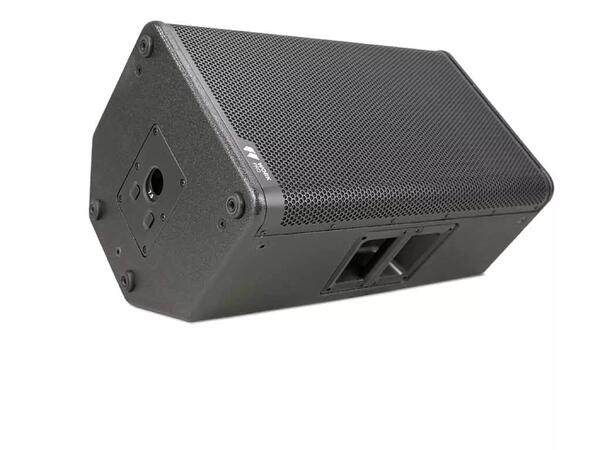

Inserts / Rigging
Insertion: 35 mm - 0° / 10° angulation;
Rigging: attachment points
Colour
Black
Dimensions
630.5 x 360 x 340 mm
Weight
18,5 Kg
Length(m) Width(m) Height(m) Weight(kg)
Speaker 0.42 0.44 0.73 23.00
Box 0.56 0.56 0.85 28.60
