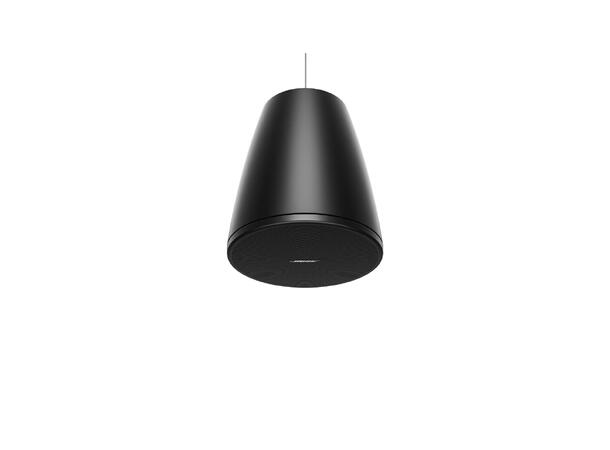

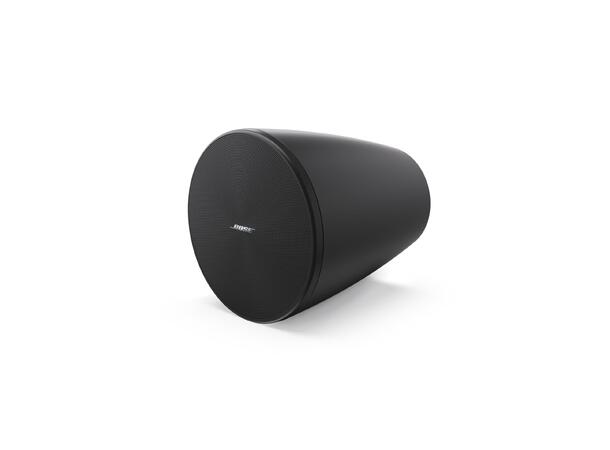

With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

FEATURES

• Complete any commercial sound installation with 15 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

• Choose from three DM5 models — the in-ceiling DM5C, the surface-mounted, outdoor-rated DM5SE, and the sleek DM5P pendant loudspeaker

• Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPECS

Technical Specification

• Safety Agency Ratings

• UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant

• Colors

• Black (similar to RAL 9005), white (similar to RAL 9003), paintable

• Enclosure Material

• Engineered plastics

• Environmental

• Indoor only

• Grille

• Perforated steel, powder-coated finish

• Logo

• Rotatable, removable

• Suspension/Mounting

• 1 suspension attachment point, 1 safety cable attachment point

• Operating Temperature Range

• 0 °C to 50 °C (32 °F to 122 °F)

• Product Dimensions (H×W×D)

• 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter

• Net Weight

• 9.1 lb (4.1 kg), single

• Shipping Weight

• 24.3 lb (11.0 kg), pair

• Frequency Range (-10 dB)

• 65 Hz – 20,000 Hz

• Coverage, Horizontal

• 120° conical

• Calculated Maximum SPL @ 1 m

• 105 dB

• Nominal Impedance

• 8 O (transformer bypass)

• Power Handling, long-term continuous

• 50 W

• Power Handling, Peak

• 200 W

• Recommended Signal Processing

• Not required, Bose Professional EQ voicing and SmartBass processing available

• Sensitivity (SPL/1 W at 1 m)

• 87 dB

• Transformer Taps, 100V

• 6, 12, 25, 50 W, bypass

• Transformer Taps, 70V

• 3 W, 6 W, 12 W, 25 W, 50 W, bypass

• Coverage, Vertical

• 120° conical

• Crossover

• 1.8 kHz, passive 2-way crossover

• Driver Protection

• Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter

• High-Frequency

• 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted

• Low-Frequency

• 1 × 5.25 in (133 mm) woofer

Product codes

• 841166-0110
• DESIGNMAX DM5P PAIR BLACK

• 841166-0210
• DESIGNMAX DM5P PAIR WHITE

• 841166-0120
• DESIGNMAX DM5P PAIR BLACK (NEW)

• 841166-0220
• DESIGNMAX DM5P PAIR WHITE (NEW)

Warranty Period

• 5 years

Included in Packaging

• (2) suspension cables, 15.0 ft (4.5 m) each

• (2) cable fastener tools

• (2) cable fasteners

• (2) DesignMax DM5P loudspeakers

• (8) cable ties

• (1) installation guide

IMPORTANT NOTIFICATIONS

We would like to inform our customers about recent updates to the DesignMax DM3P, 5P, 6PE and 10P-SUB.

Due to a change in manufacturing location, new SKU product codes have been introduced, but rest assured, there are no changes to the product.
