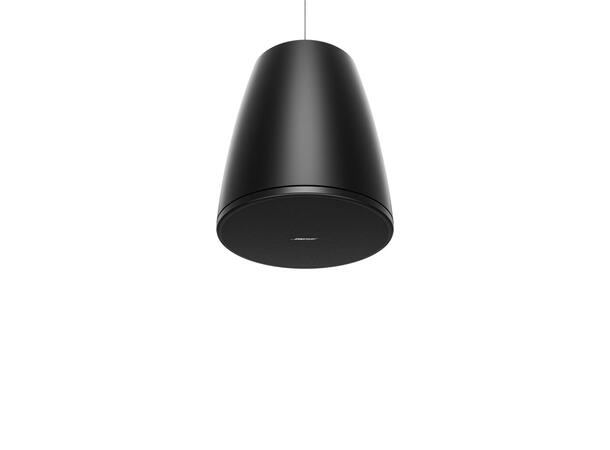

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

FEATURES

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

• Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker

• Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

• Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor

SPECS

Technical Specification

• Safety Agency Ratings

• UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant

• Colors

• Black (similar to RAL 9005), white (similar to RAL 9003), paintable

• Enclosure Material

• Engineered plastics, highly UV fade-resistant

• Environmental

• Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover

• Grille

• Perforated steel, powder-coated finish

• Ingress Protection

• IP55

• Logo

• Rotatable, removable

• Suspension/Mounting

• 1 suspension attachment point, 1 safety cable attachment point

• Operating Temperature Range

• -25 °C to 65 °C (-13 °F to 149 °F)

• Product Dimensions (H×W×D)

• 12.1 in × 14.8 in (308 mm × 375 mm), loudspeaker diameter × depth

• Net Weight

• 12.5 lb (5.7 kg), single

• Shipping Weight

• 33.1 lb (15.0 kg), pair

• Frequency Range (-10 dB)

• 62 Hz – 20,000 Hz

• Coverage, Horizontal

• 115° conical

• Calculated Maximum SPL @ 1 m

• 110 dB

• Nominal Impedance

• 8 O (transformer bypass)

• Power Handling, long-term continuous

• 100 W

• Power Handling, Peak

• 400 W

• Recommended Signal Processing

• Not required, Bose Professional EQ voicing and SmartBass processing available

• Sensitivity (SPL/1 W at 1 m)

• 89 dB

• Transformer Taps, 100V

• 5, 10, 20, 40, 80 W, bypass

• Transformer Taps, 70V

• 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass

• Coverage, Vertical

• 115° conical

• Crossover

• 1.7 kHz, passive 2-way crossover

• Driver Protection

• Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter

• High-Frequency

• 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated

• Low-Frequency

• 1 × 6.5 in (165 mm) woofer, weather-treated

Product codes

• 841168-0110
• DESIGNMAX DM6PE PAIR BLACK

• 841168-0210
• DESIGNMAX DM6PE PAIR WHITE

• 841168-0120
• DESIGNMAX DM6PE PAIR BLACK (NEW)

• 841168-0220
• DESIGNMAX DMPE PAIR WHITE (NEW)

Included in Packaging

• (4) cable ties

• (2) suspension cables, 15.0 ft (4.5 m) each

• (1) weather-resistant input cover

IMPORTANT NOTIFICATIONS

We would like to inform our customers about recent updates to the DesignMax DM3P, 5P, 6PE and 10P-SUB.

Due to a change in manufacturing location, new SKU product codes have been introduced, but rest assured, there are no changes to the product.
