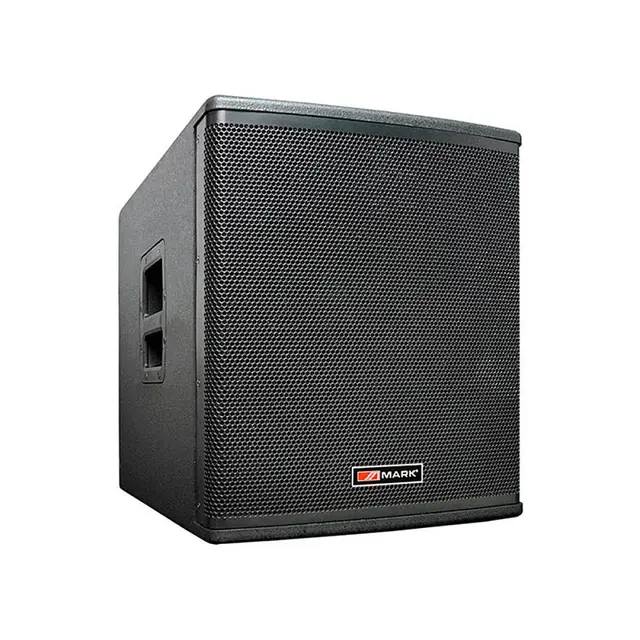

ACTIVE 12" SUB 700W 80Hz/125Hz INSERT 35mm
DescriptionMW 12 A is an active subwoofer with 12'' woofer. It incorporates 2-line inputs, 2 LINK outputs and connectivity for two-way active loudspeakers.
Its functions include phase inversion switch and high-pass crossover with two different cut frequencies (80 Hz / 125 Hz). The power output can be controlled by a master potentiometer with signal limit LED.
Its robust design, elegant finish (made of high-density plywood) and shape are very suitable in reinforcement appliances like conference rooms, schools or home cinema installations.
MW 12 A device incorporates a 35 mm insertion in the upper side.
- 700W Active subwoofer
- 12 ' woofer
- 2x LINE inputs. Phase inversion & high-pass filter
- Made of high density plywood. 35 mm top insertion
| Type | Self powered subwoofer |
| Power | 350 W RMS / 700 W Program/ 350 W RMS |
| Transducers | 12" Woofer, 2.5" Voicecoil |
| Nominal Impedance | 4 Ohm |
| SPL Max | 122 dB |
| Frequency Range | 55 Hz - 150 Hz |
| Crossover Range | 80 Hz ó 125 Hz |
| Connections | Power: 1 x IEC. Line In: 2 x XLR3. Crossover Out: 2 x XLR3. Link Out: 2 x XLR3 |
| Controls | Power switch, Volume, Polarity inversion |
| Enclosure material | Wood |
| Finished | Painting |
| Inserts / Rigging | Side handles, 35mm top insert for support |
| Colour | Black |
| Dimensions | 480 x 380 x 450 mm |
| Weight | 19 kg |
