Bose Professional MB210-WR compact subwoofers are designed for outdoor installations of background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37 Hz. The MB210-WR subwoofer features two 10-inch high-excursion woofers, derived from the award-winning F1 subwoofer, in a compact, exterior-grade plywood enclosure optimized for outdoor, fixed-installation applications. Featuring outstanding performance to size ratio, the MB210-WR is designed to complement Bose Professional loudspeaker lines in outdoor applications — such as ArenaMatch Utility, Panaray, DesignMax, and Freespace — with additional bass impact.

FEATURES

• 2 × 10-inch high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning F1 portable, powered subwoofer.

• 500 W long-term power handling for high sound output and reliability

• Low-frequency extension down to 37 Hz for impactful, deep-bass music reinforcement

• 123 dB maximum continuous SPL, 129 dB peak SPL

• Exterior-grade plywood enclosure with compact size for installations

• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurea exterior coating, and molded cover to protect inputs

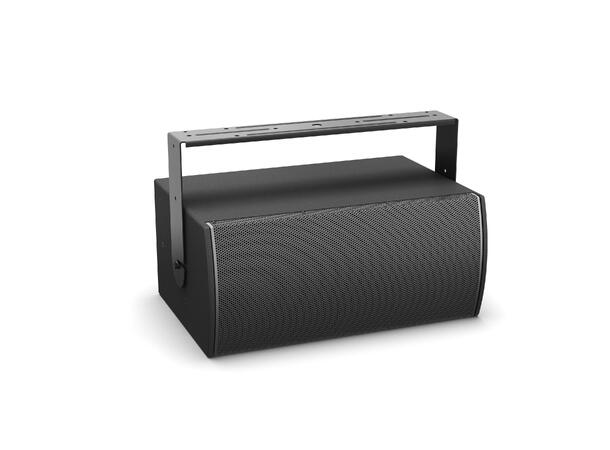

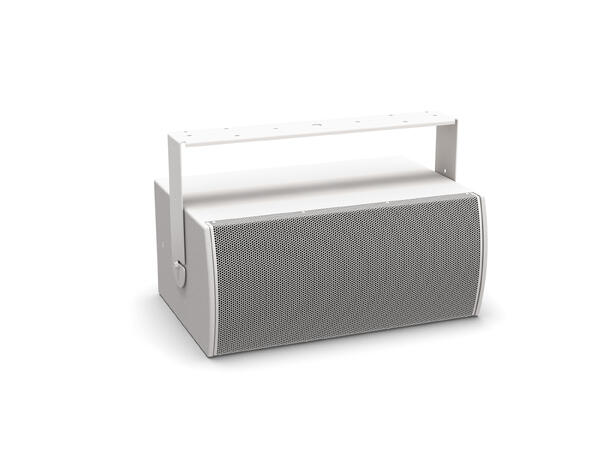

• U-bracket included for easy mounting to walls or ceilings

Applications

Designed for a wide range of applications, including:

• Houses of worship
• Multi-purpose spaces
• Recreation
• Restaurants and bars
• Auditoriums
• Transportation facilities
• Gymnasiums
• Atriums and malls

SPECS

Technical Specification

COMPLIANCE

• EN 54-24 Certified

• No

PHYSICAL

• Colors

• Black, white

• Enclosure Material

• Exterior-grade plywood

• Environmental

• Rated for direct-exposure outdoor installations (IEC 60529: IP55)

• Grille

• 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish

• Ingress Protection

• IP55

• Suspension/Mounting

• 3 × M8 threaded inserts for U-bracket (per side)

• Product Dimensions (H×W×D)

• 11.5 in × 26.0 in × 19.1 in (291 mm × 659 mm × 484 mm)

• Net Weight

• 42.8 lb (19.4 kg)

PERFORMANCE

• Frequency Range (-10 dB)

• 37 Hz – 180 Hz

• Coverage, Horizontal

• Omnidirectional below 200 Hz

• Calculated Maximum SPL @ 1 m

• 117 dB (free field), 123 dB (wall/ceiling) continuous / 123 dB (free field), 129 dB (wall/ceiling) peak

• Nominal Impedance

• 8 O

• Power Handling, long-term continuous

• 500 W

• Power Handling, Peak

• 2000 W

• Recommended Power Amplification

• 500 W – 2000 W

• Sensitivity (SPL/1 W at 1 m)

• 90 dB (free field), 96 dB (wall/ceiling)

• Coverage, Vertical

• Omnidirectional below 200 Hz

TRANSDUCERS

• Low-Frequency

• 2 × 10 in (254 mm) high-excursion woofers

Product codes

• 811432-0110
• Black

• 811432-0210
• White

Warranty Period

• 5 years

Included in Packaging

• (1) installation guide

• (1) U-bracket

• (4) M8 screws

• (4) M4 screws

• (1) input cover

• (1) T3 square drive

• (1) MB210-WR

• (4) rubber washers
