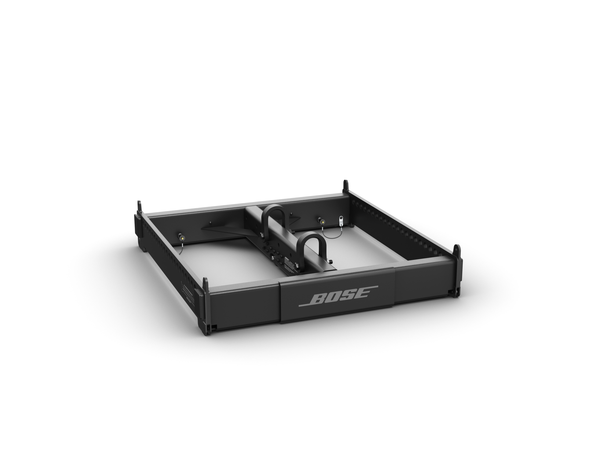

BOSE SHOWMATCH ARRAY

Use the ShowMatch Array Frame (SMAF) to create overhead suspended arrays that contain subwoofer modules, or to create ground stack arrays that use any combination of subwoofer modules, mid/high modules, or both.

FEATURES

Applications

Designed for a wide range of applications, including:

• Indoor use

SPECS

Technical Specification

• Working Load Limit (WLL)

• 1800 lb (815 kg), center rail / 1400 lb (630 kg) side rail

• Colors

• Black

• Product Dimensions (H×W×D)

• 5.9 in × 28.6 in × 30.0 in (149 mm × 727 mm × 762 mm)

• Net Weight

• 83.0 lb (37.6 kg)

Product codes

• 770300-0110
• ShowMatch SMAF

Included in Packaging

• (1) installation guide

• (1) ShowMatch SMAF frame

• (2) shackle adapters

• (4) quick pins

DOWNLOADS

• Installation Guide

• BIM Revit

• CAD Files

• BIM ARCHICAD
