BOSE SHOWMATCH ARRAY

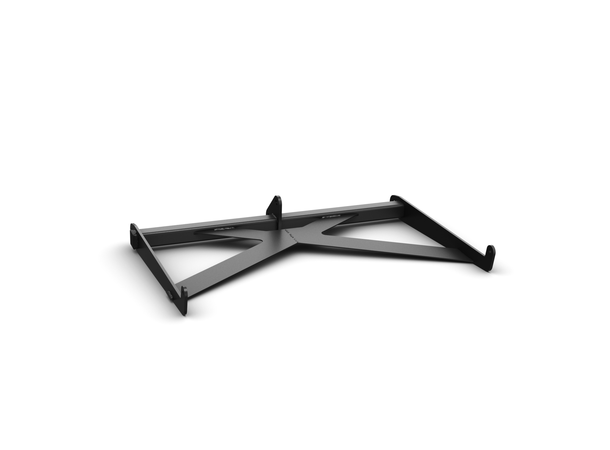

Connect the ShowMatch Array Pullback Bracket (SMPULL) to the bottom full-range array module to provide third-point suspension to building structure. This allows more extreme downward angle of arrays than possible from 2-point, gravity-hang suspension.

FEATURES

Applications

Designed for a wide range of applications, including:

• Indoor use

SPECS

Technical Specification

• Working Load Limit (WLL)

• 700 lb (315 kg), center suspension point / 600 lb (270 kg) side suspension point

• Colors

• Black

• Product Dimensions (H×W×D)

• 4.1 in × 27.9 in × 20.0 in (105 mm × 710 mm × 507 mm)

• Net Weight

• 15.0 lb (18.4 kg)

Product codes

• 770302-0110
• ShowMatch SMPULL

Included in Packaging

• (1) installation guide

• (1) ShowMatch SMPULL bracket

DOWNLOADS

• Installation Guide

• BIM Revit

• CAD Files

• BIM ARCHICAD
