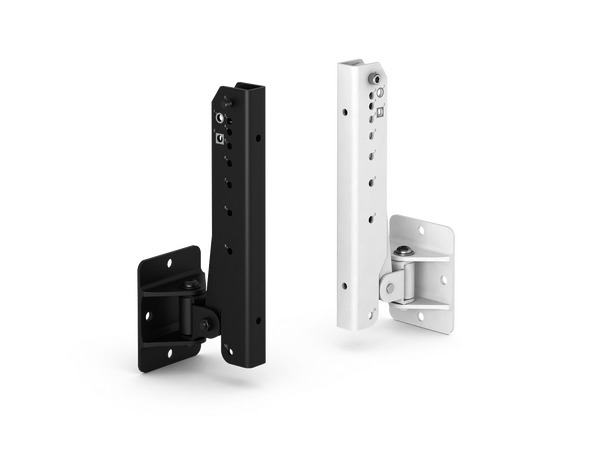

BOSE WMB2-MA12/MA12EX PTCH

Wall Bracket provides 0° – 10° of positive pitch retention for stacked MA12 and MA12EX arrays. Load rated for triple-stacks. This bracket is used along with the WB-MA12/MA12EX pitch only or WMB-MA12/MA12EX bi-pivot brackets. For indoor/outdoor use.

FEATURES

Applications

Designed for a wide range of applications, including:

• Indoor or outdoor use

SPECS

Technical Specification

• Colors

• Black, white

• Product Dimensions (H×W×D)

• 9.1 in × 3.0 in × 3.8 in (232 mm × 76 mm × 97 mm)

Product codes

• 318337-0100
• WMB2-MA12/MA12EX, black

• 318337-0200
• WMB2-MA12/MA12EX, white

Included in Packaging

• (1) installation guide

• (6) M6 washers

• (1) WMB2-MA12/MA12EX bracket

• (1) M6 × 35 mm screw

• (2) M6 × 14 mm screws

DOWNLOADS

• Installation Guide

• CAD Files (zip)

• Product Image Files
