BOSE CONTROLCENTER CC-1

Bose Professional ControlCenter CC-1 zone controllers provide volume control for FreeSpace, PowerShare, and ControlSpace products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

FEATURES

• ControlCenter series: The ControlCenter series is a set of remote controls for use with Bose Professional FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).

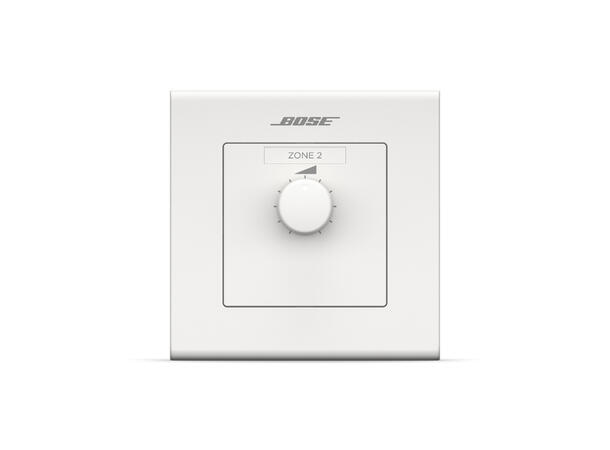

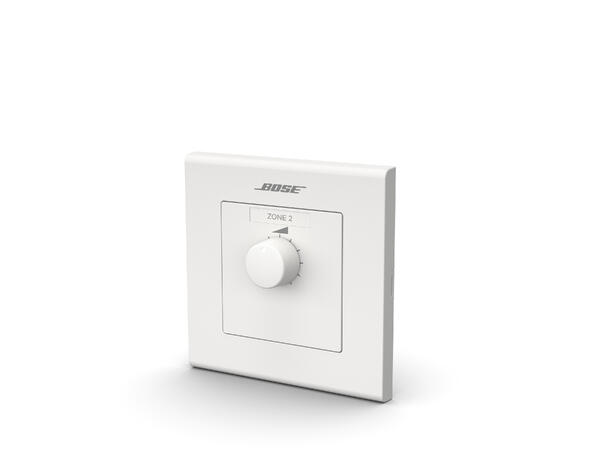

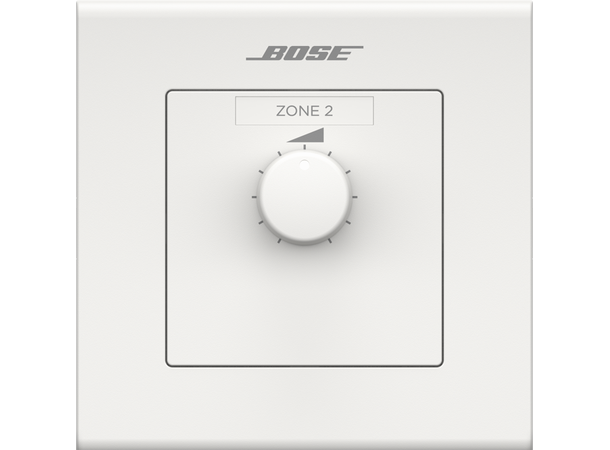

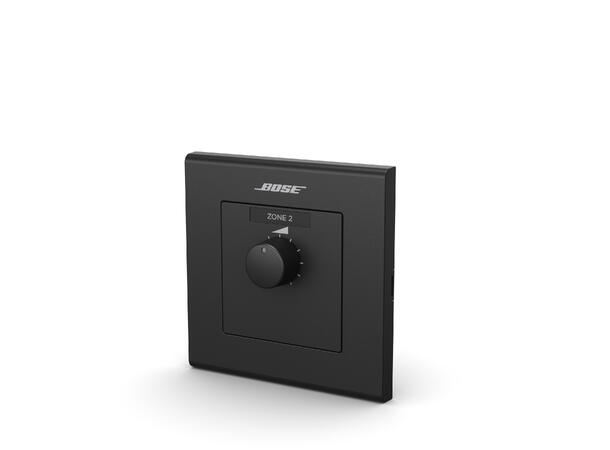

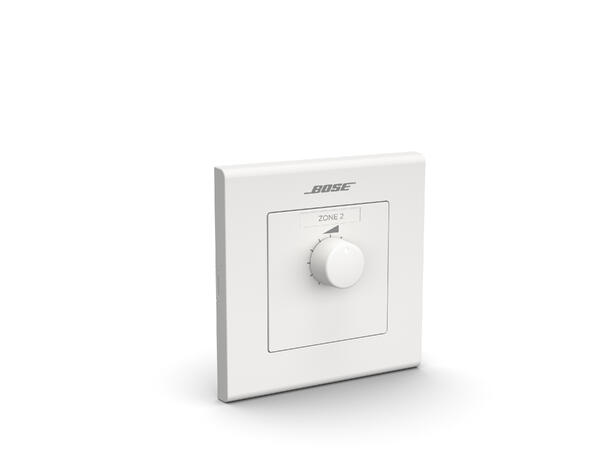

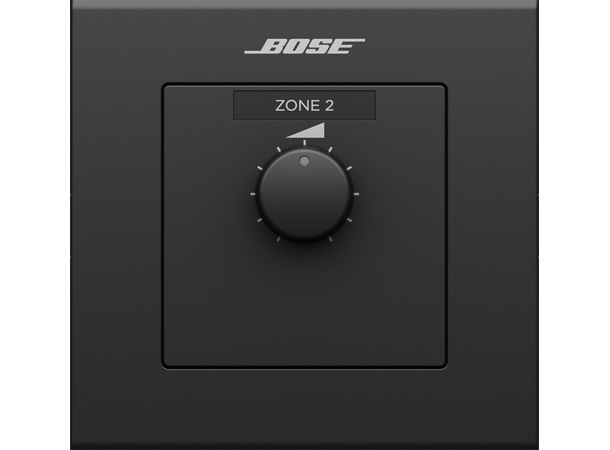

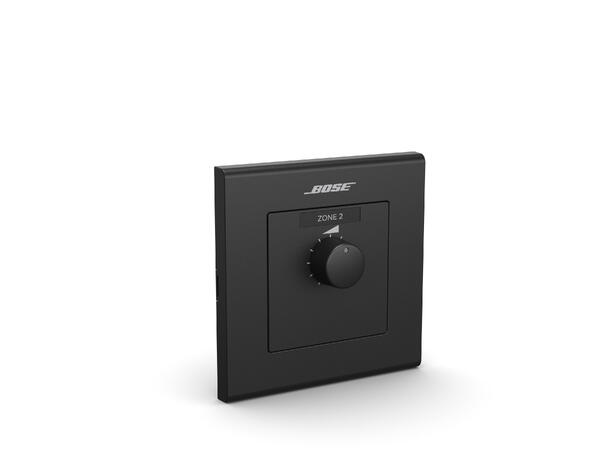

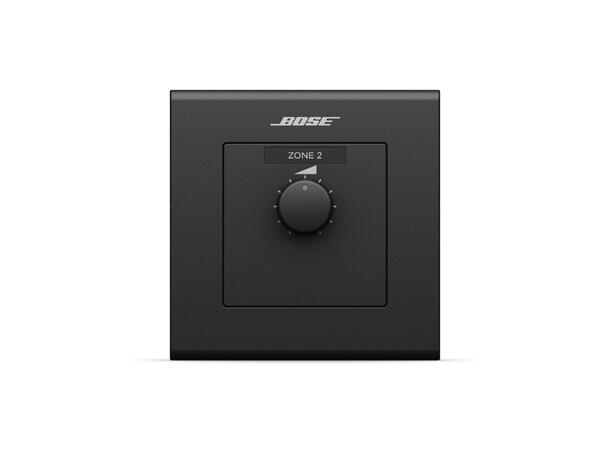

• ControlCenter models: North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate.



• Custom labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.



• CV41 4-to-1 converter: The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.



Applications

Designed for a wide range of applications, including:

• Retail stores
• Restaurants and bars
• Hospitality venues
• Religious and worship facilities
• Auxiliary zones

SPECS

Technical Specification

• Cable Requirements

• Cat 5

• Maximum Controller Quantity

• 4 per ControlSpace processor

• Maximum Cable Length

• 2000 ft (609 m) to FreeSpace or PowerShare amplifiers / 500 ft (152 m) shielded, 100 ft (30 m) unshielded to ControlSpace processors

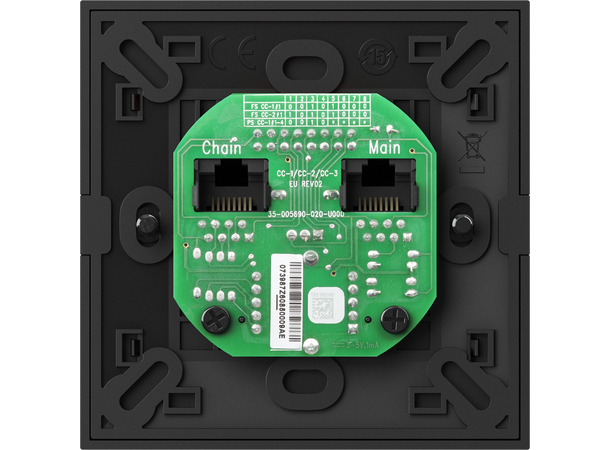

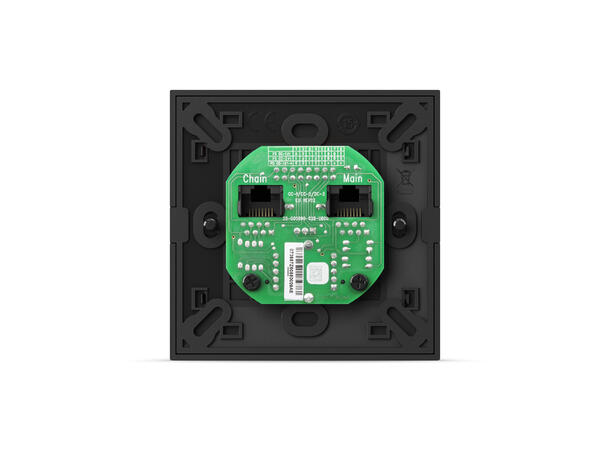

• Connectors

• (2) RJ-45, TIA/EIA 568B wiring standard

• Compatible with

• ControlCenter CV41, ControlSpace ESP-880A, FreeSpace IZA 190-HZ, FreeSpace IZA 250-LZ, FreeSpace IZA 2120-HZ, FreeSpace IZA 2120-LZ

• Controls, Front Panel

• (1) volume knob

• Colors

• Black, white

• Suspension/Mounting

• 1-gang electrical box (North America, Europe, Japan)

• Product Dimensions (H×W×D)

• 4.1 in × 1.5 in × 1.4 in (105 mm × 38 mm × 36 mm), North America / 3.4 in × 3.4 in × 1.4 in (86 mm × 86 mm × 36 mm), Europe / 4.3 in × 1.7 in × 1.5 in (110 mm × 42 mm × 38 mm), Japan

VIDEOs

Product codes

• 768932-0110
• ControlCenter CC-1, black, 120V, North America

• 768932-0210
• ControlCenter CC-1, white, 120V, North America

• 768932-2110
• ControlCenter CC-1, black, 230V, Europe

• 768932-2210
• ControlCenter CC-1, white, 230V, Europe

• 768932-3110
• ControlCenter CC-1, black, 100V, Japan

• 768932-3210
• ControlCenter CC-1, white, 100V, Japan

Included in Packaging

• (1) ControlCenter CC-1
