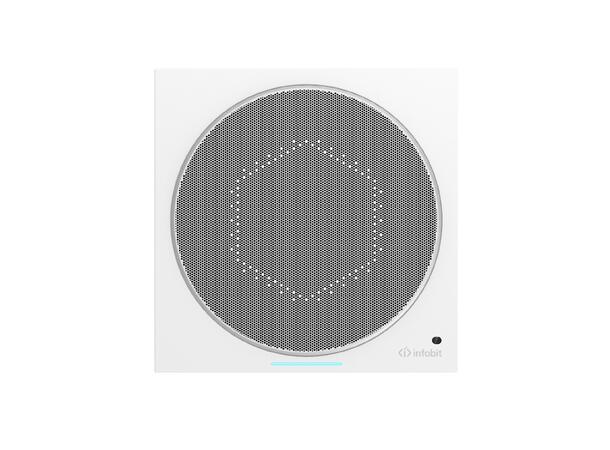

iSpeaker CM360
128x MEMS microphone array.
1x RJ45 Dante PoE port.
With the IR Remote to control mute/unmute, volume, pickup or reinforcement modes.
Supports both sound pickup and local sound reinforcement modes separately or simultaneously.
Supports unlimited cascading.
Supports 8x local pickup zones.
Supports 8x local sound reinforcement zones.
Supports 1x local mute zone.
Supports AI Noise Reduction Suppression, AI Reverberation Suppression, AI Feedback Suppression, AI Echo Cancellation.
Supports camera tracking.
Supports 8 8-meter pickup distance.
Supports a user-friendly GUI.
Supports online firmware upgrade.

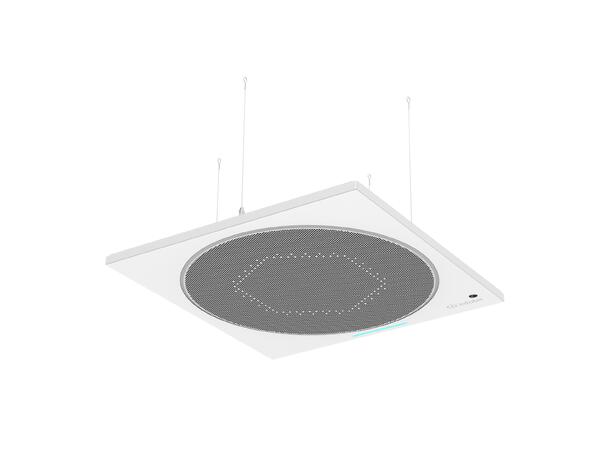

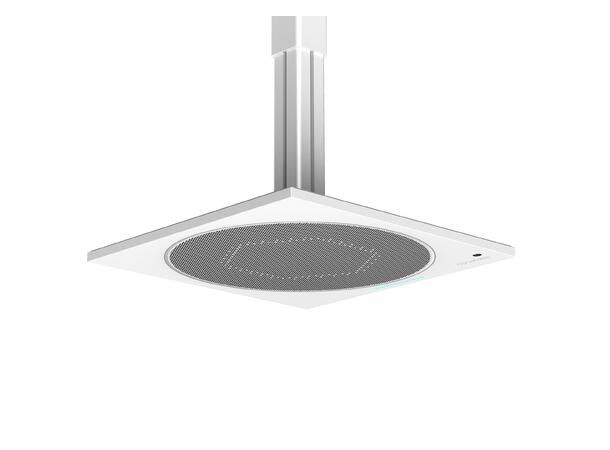

3x different mounting ways, like pendant ropes, mounting bracket, or in-ceiling mounting.
HIGH-END CEILING MICROPHONEWith 128x MEMS microphones array, support 8 meters pickup range. Support Dante-powered unlimited cascading.
FOR EDUCATION ROOMS
FOR MEETING ROOMS
FOR TRAINING HALLS
FLEXIBLE ZONES MANAGEMENT Supports 8x sound pickup zones,8x local sound reinforcement zones and 1x mute zone.
Datasheet
| Model | iSpeaker CM360 |
| Name | Dante Ceiling Microphone |
| Color | White |
| Size | 597mm*597mm*53.5mm |
| Net Weight | 5KG |
| Power Supply | PoE |
| Installation Method | Ceiling mount |
| Mic Type | 128-unit MEMS microphone array |
| Sensitivity | -38dBv/94dB SPL @1KHz |
| Signal-to-Noise Ratio | 65dBv/94dB SPL@1KHz, A-weighted |
| Dante Channels | 2×2 |
| Remote Meeting Pickup Channel | 1x |
| Local Sound Reinforcement Channel | 1x |
| Remote Conversation Pickup Zones | 8x |
| Local Sound Reinforcement Pickup Zones | 8x |
| Sampling Rate | 48kHz |
| Maximum Background Noise Suppression | 35dB |
| AI Noise Reduction Suppression | Support |
| AI Reverberation Suppression | Support |
| AI Feedback Suppression | Support |
| AI Echo Cancellation | Support |
| Delay (Automatic Mixing Output, Including Dante) | <30ms |
| Cascade Quantity | Unlimited |
| Cascade Method | Dante audio |
| RJ45 Port | 1x (Dante Audio Transmission, PoE) |
| USB C Port | 1x ( For debug) |
| Reset Button | 1x |
