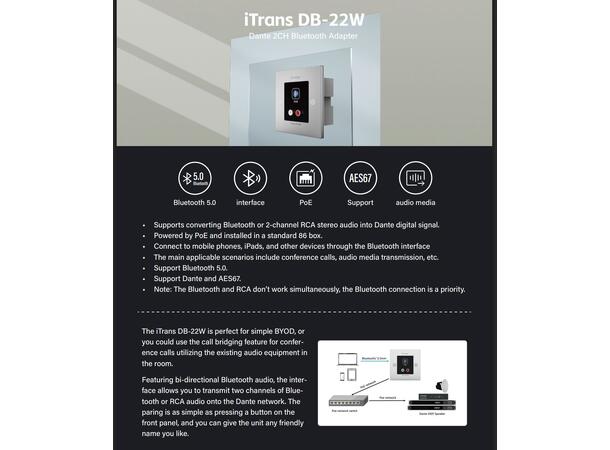

iTrans DB-22W
Supports converting Bluetooth or 2-channel RCA stereo audio into Dante digital signal
Powered by PoE and installed in a standard 86 box.
Connect to mobile phones, iPads, and other devices through the Bluetooth interface
The main applicable scenarios include conference calls, audio media transmission, etc.
Support Bluetooth 5.0
Support Dante and AES67.
Note: The Bluetooth and RCA don’t work simultaneously, the Bluetooth connection is a priority.
Dante AudioConverting Bluetooth or 2-channel RCA stereo audio into Dante Audio.
Datasheet
| Model | iTrans DB-22W |
| Name | Dante 2CH Bluetooth Adapter |
| Bluetooth | 2 Channels In |
| Dante/ AES67 | 2 Channels Out |
| Stereo Audio IN | RCA 2x |
| Max. Input Level | 12dBu |
| Sampling Rate | 44.1/48KHz |
| Bit | 24bit |
| THD+N | 10.005%/ 1kHz+4dBu |
| Dante/ AES67 delay | <2ms |
| Power | Class 1 802.3 af PoE |
| Consumption | 2W |
| Input SNR | >100dB |
| Dimension | 86x86x40mm |
