InfoBit - iTrans DP-T-22

Dante 2x Analog audio input

Varenr: iTrans DP-T-22

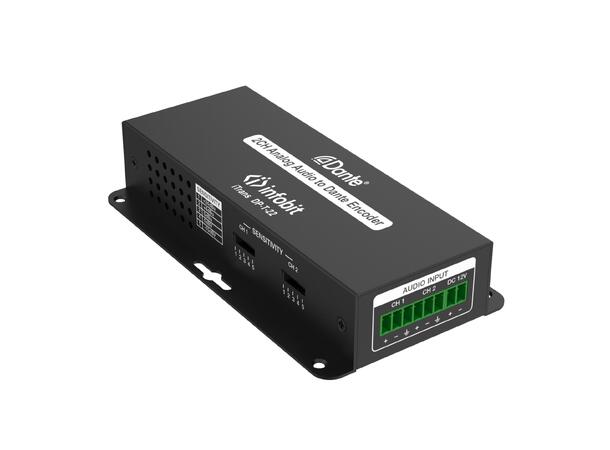

InfoBit - iTrans DP-T-22 Dante 2x Analog audio input
eks. mva
iTrans DP-T-22

Analog audio input supports balanced/unbalanced audio input (unbalanced access to “+” and “GND”)

Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)

Dante solution supports AES67 RTP audio transmission

Audio input supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV

Support DC 12V power supply and POE function (IEEE802.3af Class 0)



Datasheet
ModeliTrans DP-T-22
NameiTrans Dante Phoenix Transmitter, 2CH
Video Network Bandwidth100M
Audio FormatsPCM 2.0 44.1kHz/48kHz/96kHz, up to 24bit
Transmission Distance100m (CAT6/6A)
Inputs 1x PWR [2-pin phoenix, 3.81mm]
1x AUD [6-pin phoenix, 3.81mm]
Output 1x DANTE [RJ45 connector, POE]
HousingMetal Enclosure
ColorBlack
Dimensions120mm[W] x 47mm[D] x 26mm[H]
Weight186g
Power SupplyDC input: 12V
POE input: IEEE802.3af Class 0
Power Consumption1.2W
Operation Temperature32 – 104°F / 0 – 40°C
Storage temperature-4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
Control MethodDante Controller
