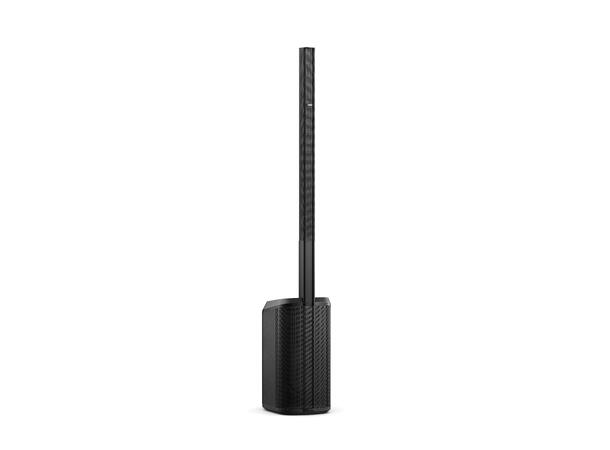

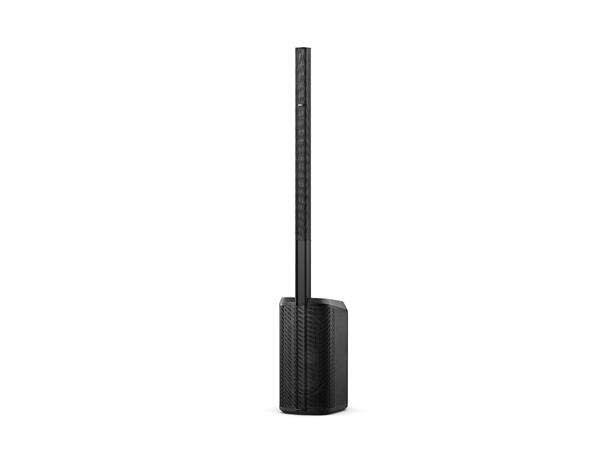

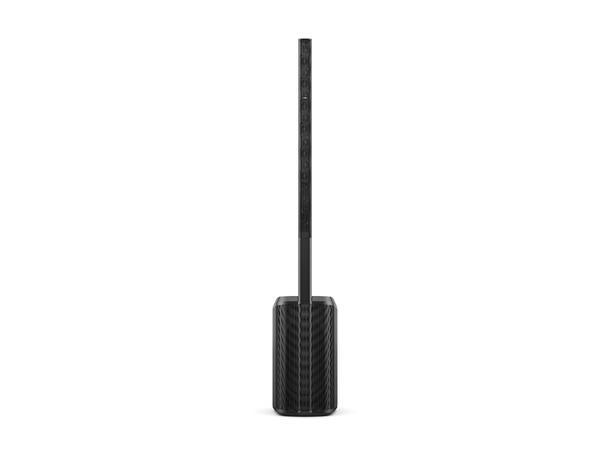

A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low-frequency range. A 16-driver articulated J-shape line array delivers 180° horizontal coverage, ideal for small-to-medium venues.
An integrated subwoofer with a RaceTrack driver provides powerful bass without bulk. A built-in multi-channel mixer offers EQ, reverb, phantom power, Bluetooth® streaming, and access to ToneMatch presets via the Bose Music app.
FEATURES

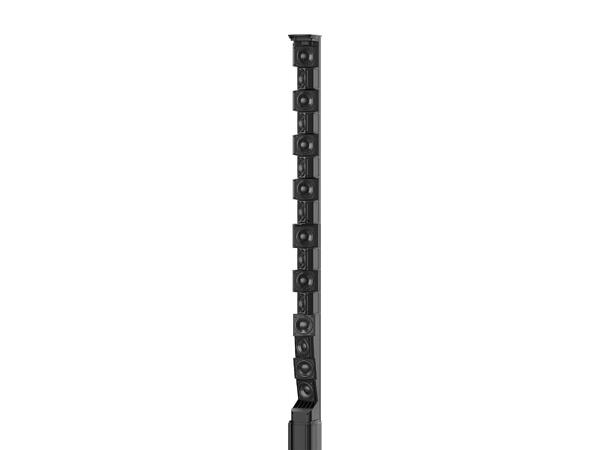

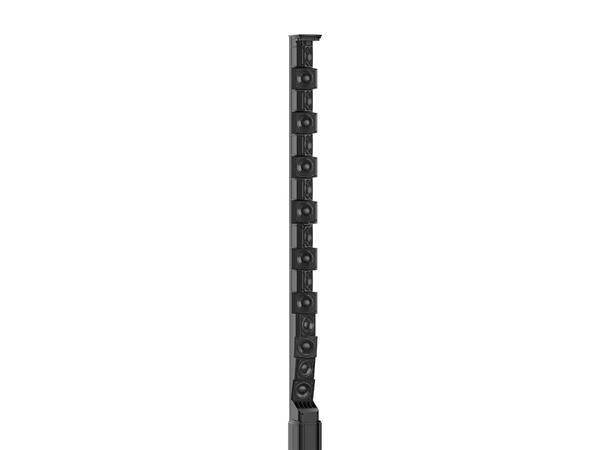

- J-shaped line array with 16 × 2" neodymium drivers and 180° horizontal coverage
- Consistent full-range sound for DJs, singer-songwriters, and ensembles

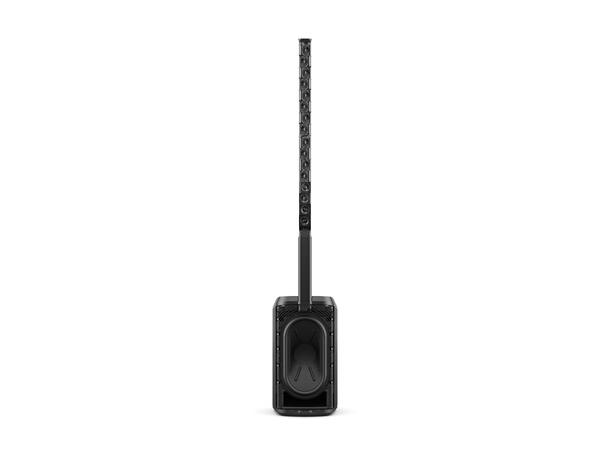

- Integrated RaceTrack subwoofer (10 × 18") for deep bass in a compact footprint

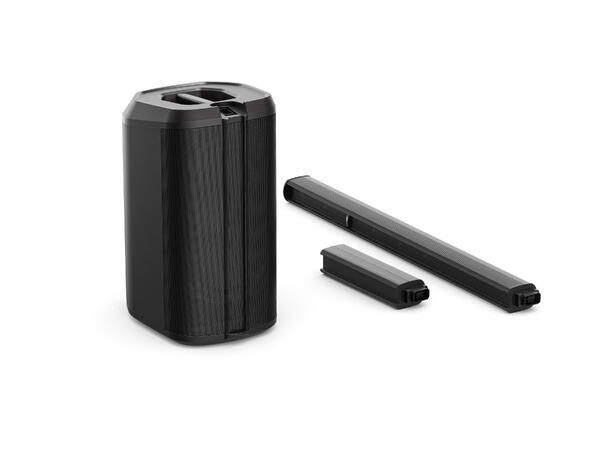

- Modular three-piece design for easy transport and setup
- System EQ presets for live and recorded music

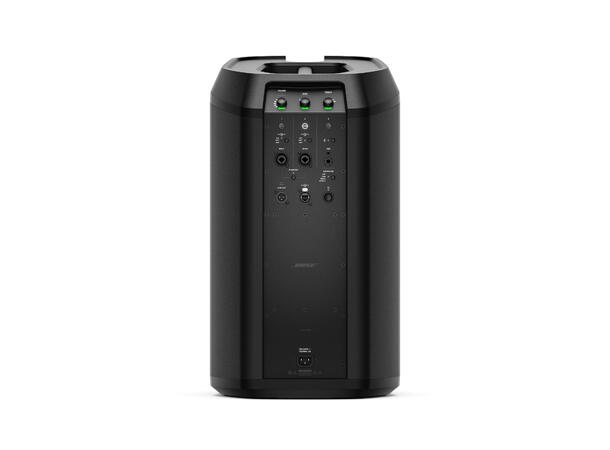

- Built-in mixer with XLR/¼", aux inputs, phantom power, and Bluetooth streaming
- ToneMatch port for Bose T4S / T8S mixers
- Bose Music app for wireless control
Applications
- Houses of worship
- Schools and universities
- Hospitality venues
- Live music
- Business presentations
- Mobile DJs
SPECS
Amplification
- Channels: 2
- Power class: Class D
Audio Inputs
- Input channels: 3
- Connectors: XLR-¼" combo, ¼" TRS, ?" TRS, Bluetooth
- Phantom power: 48 VDC (channels 1–2)
Performance
- Frequency range (-10 dB): 31 Hz – 18 kHz
- Maximum SPL: 124 dB
- Horizontal coverage: 180°
Physical
- Dimensions: 2011 × 355 × 456 mm
- Net weight: 23.0 kg
- Finish: Black
VIDEOS
https://boseprofessional.com/products/portable-pa/powered-loudspeakers/l1-powered-loudspeakers/l1-pro16-portable-line-array-system?wvideo=mf1jm0ehy5
DOWNLOADS
Warranty
2 years
Included in Packaging
- Carry bag (arrays)
- IEC power cord
