BOSE CONTROLCENTER AVM-1

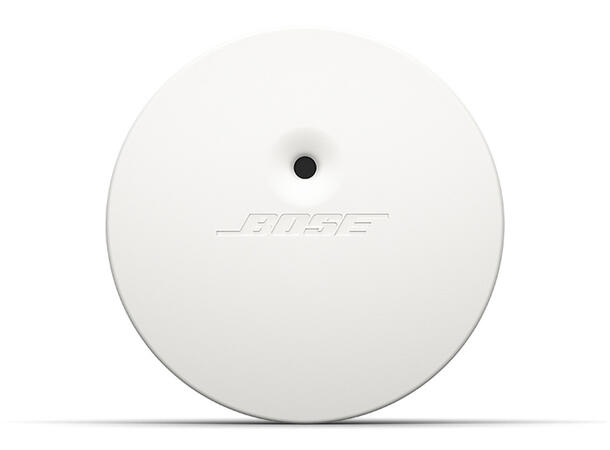

The AVM-1 sense microphone mounts discreetly into ceilings and provides an analog output over a balanced audio connection. Designed for use with AutoVolume compensation, as featured in select Bose Professional sound processors, the microphone delivers a continuous ambient room noise reference. This allows the AutoVolume algorithm to adjust output zone levels automatically based on activity in the room.

FEATURES

• Discreet, flush-mounted design blends seamlessly into common ceiling surfaces

• Omnidirectional condenser microphone capsule operates on phantom power and can be located up to 610 meters (2,000 feet) away from the sound processor

• Spring clips help make installation easy while keeping the microphone firmly in place

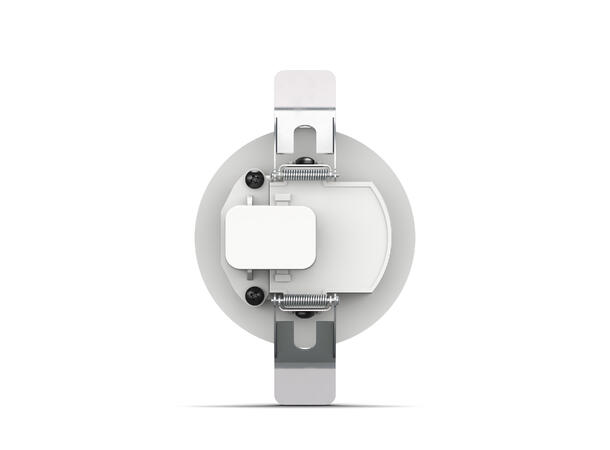

• Condensation cover protects wire terminals from moisture collection and ensures sustained operation in above-ceiling mounting locations

SPECS

Technical Specification

• Frequency Response

• 100 Hz – 6 kHz (±4 dB), relative level 1 kHz

• THD+N

• < 1% at 1 kHz (1 Pa/94 dB SPL)

• Maximum Input Level

• 115 dB at 1 kHz

• Phantom Power

• 48 VDC, 10 mA, via ground terminal (typical)

• Channels

• 1 balanced, mic

• Connectors

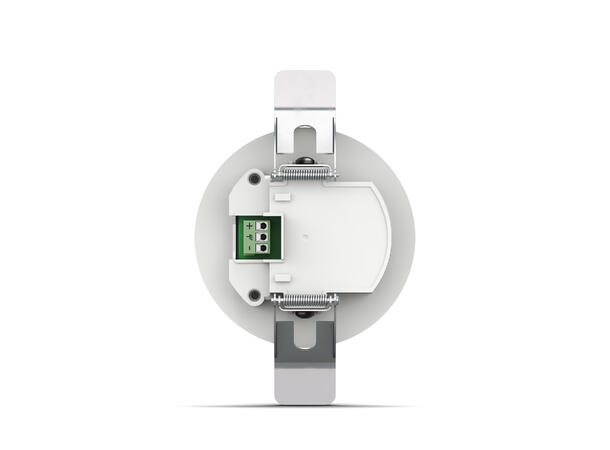

• (1) fixed 3-terminal bare-wire, 3.5 mm

• Connectors

• (1) fixed 3-terminal bare-wire, 3.5 mm

• Power Range

• 48 VDC, 10 mA phantom power via ground terminal (typical)

• Compatible with

• CSP-428, CSP-1248

• Technology

• Omnidirectional electret condenser

• Colors

• White

• Suspension/Mounting

• Spring-loaded clips for ceiling < 1.0 in (25 mm) thick

• Operating Temperature Range

• 0 °C to 40 °C (32 °F to 104 °F)

• Product Dimensions (H×W×D)

• 1.7 in × 2.8 in × 3.9 in (43 mm × 70 mm × 99 mm)

• Net Weight

• 0.14 lb (0.06 kg)

Product codes

• 808932-0210
• AVM-1

Included in Packaging

• (1) AVM-1
