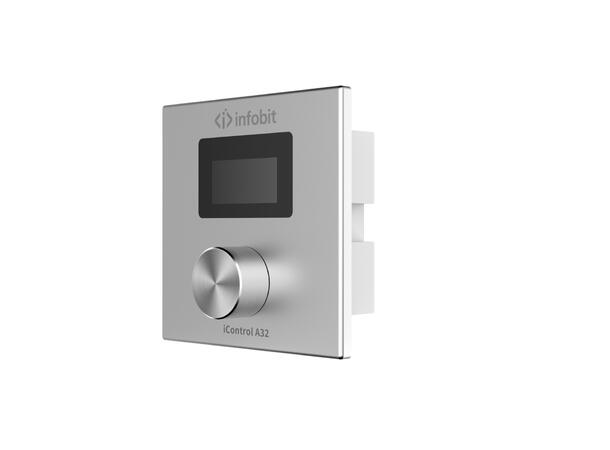

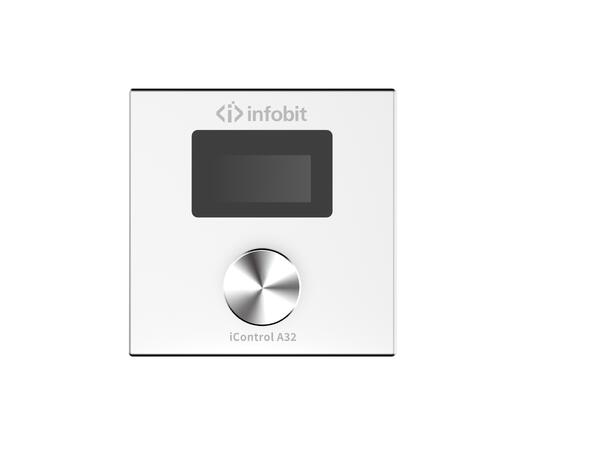

iControl A32
32x programable menus, support customized functions
1x programable control knob, with 8 indicators showing the control status.
The device is connected via standard CAT-5/6/7 cables and is powered over Ethernet (PoE)
Multiple remote control panels can be connected over large distances.
Partnered with one or more iSound Series DSPs from INFOBIT AV
A range of audio control abilities such as volume, mixing, and scene switching.
With PoE power supply and UDP communication protocol.
Can control the 3rd party device through iSound DSPs.
Note: Must work with INFOBIT iSound DSPs.
Datasheet
| Model | iControl A32 |
| Name | 32-menu Dante Audio Controller |
| OLED display | 1.3? |
| Control knob | 1 pcs |
| Control protocols | UDP |
| Address setting method | TCP/IP |
| Signal cable length | 100 Meters |
| Power supply | PoE |
| Connection port | RJ45 |
| Power consumption | <100mW |
| Material | Aluminium alloy sandblasting |
| Color | Silver White |
| Cover dimensions | 86 x 86mm |
| Wall box dimensions | 80 x 80 x 45mm |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
