ADI SHARC 21489 processor
16 balanced microphone or line-level inputs on Terminal Block connectors
16 balanced line-level outputs on Terminal Block connectors
2 Dante audio interfaces on RJ-45 connectors
8 GPI/O multi-function ports on Terminal Block connectors
Dante audio channels up to 16×16
Definable GUI for managing and configuring multiple units
All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay, and more
16 preset slots to store all configuration data for easy recall
Built-in USB sound card for recording and playing digital audio
DSP Configurator software tool for managing all audio operations
Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
With 16x48V phantom power.
Datasheet

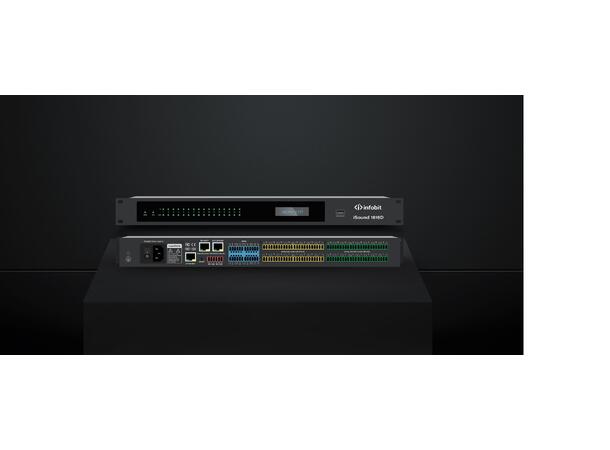

| Model | iSound 1616D |
| Name | 16×16 Digital Sound Processor w/ Dante |
| Audio |
| ADSP | ADI SHARC 21489 (×2) |
| Audio Format | 24 bits, 48 kHz sampling rates (uncompressed) |
| System Latency | < 6 ms |
| Analog I/O Channels | 16×16 |
| Dante I/O Channels | 16×16 |
| Analog Input Gain | 0, 10, 20, 30, 40, 43 dB |
| Analog Input Level | +24 dBu |
| Analog Output Level | +24 dBu |
| Frequency Response | ±0 2 dB (20 Hz to 20 kHz) |
| THD+N | < 0 003% (1 kHz, +4 dBu) |
| Common Mode Rejection Ration | 80 dB (60 Hz) |
| SNR | 110 dB |
| Analog Dynamic Range | 113 dB |
| Dante Dynamic Range | 115 dB |
| Analog Background Noise | -89 dBu (A-weighted) |
| Dante Background Noise | -91 dBu (A-weighted) |
| Channel Isolation | 108 dB (1 kHz) |
| Input Impedance | 9 4k ohms (Balanced) |
| Output Impedance | 102 ohms (Balanced) |
| Phantom Power | 16x 48 V |
| Interface |
| Input Port | 16 Analog Audio (Terminal Block) |
| Output Port | 16 Analog Audio (Terminal Block) |
| Ethernet Port | 2 Dante Audio (RJ-45) 1 LAN (RJ-45) |
| USB Port | 1 USB Audio (Type-A) |
| Serial Port | 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block) |
| GPI/O Port | 8 GPI/O (Terminal Block) |
| Power |
| AC Power | 110 to 240 VAC at 50 or 60 Hz |
| AC Adapter | N/A |
| Power Consumption | 35 W |
| Enclosure |
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 45×482×260 mm |
| Chassis Weight | 3 kg |
| Environment |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance |
| Regulatory Compliance | FCC, CCC, CE, RoHS |
