Wyrestorm 3x1 HDMI/VGA/DP Switching Ext

Ryddesalg/Demo/B-Vare

Varenr: EX-SW-0301-H2D
Wyrestorm 3x1 HDMI/VGA/DP Switching Ext Ryddesalg/Demo/B-Vare Wyrestorm 3x1 HDMI/VGA/DP Switching Ext Ryddesalg/Demo/B-Vare Wyrestorm 3x1 HDMI/VGA/DP Switching Ext Ryddesalg/Demo/B-Vare Wyrestorm 3x1 HDMI/VGA/DP Switching Ext Ryddesalg/Demo/B-Vare Wyrestorm 3x1 HDMI/VGA/DP Switching Ext Ryddesalg/Demo/B-Vare
eks. mva

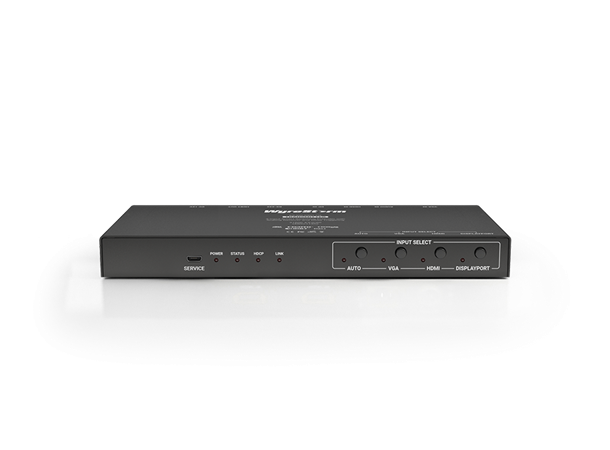

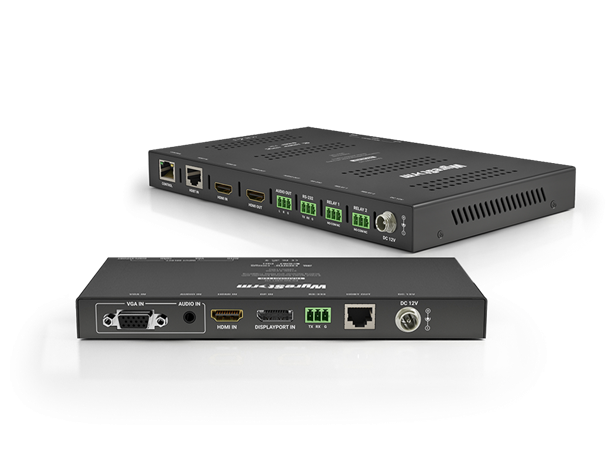

3x1 HDMI/VGA/DP Switching Extender with Scaling Receiver, Relay Triggering and HDCP 2.2

EX-SW-0301-H2

Hitting the sweet-spot between the 2-input and 4-input presentation switcher & extender products, the EX-SW-0301-H2 is a powerful HDBaseT™ extender with support for VGA, HDMI & DP inputs at the transmitter but also a 4th source local to the scaling receiver. Condition-based relays and support for HDCP 2.2 wrap up this formidable package.

  • 3-input switcher & HDBaseT extender perfect for education or huddle room environments

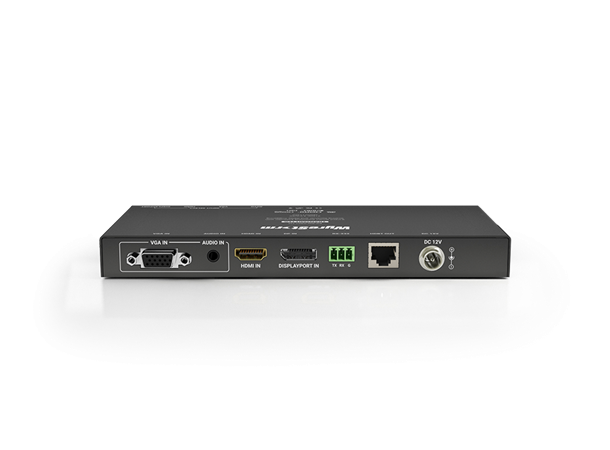

  • HDMI, DisplayPort and VGA inputs with automatic or manual switching

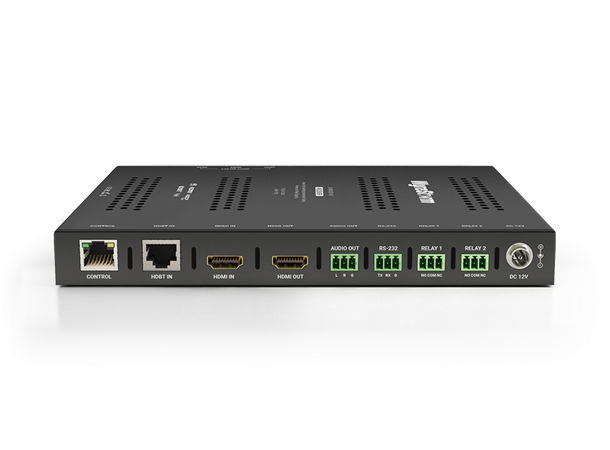

  • 2x automatic (condition based) or manually triggered relays on receiver for projector screen or curtain control
  • Receiver automatically scales content to match capability of connected TV or projector
  • Class B HDBaseT transmission to 35m/115ft @4K and 70m/230ft @1080p
  • HDMI input on receiver for connection of additional source device, such as a signage player when a room is not in use
  • Line level audio output on receiver
  • PoH from receiver to transmitter means less clutter & cables on desk
  • Compatible with latest 4K/60 4:2:0 source devices
  • HDCP 2.2 compliant

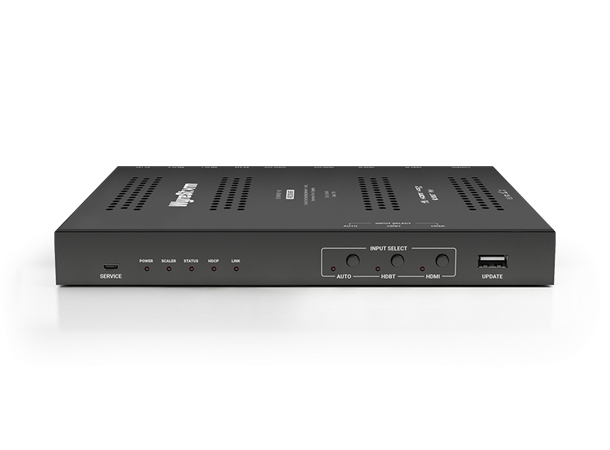

  • Control via Ethernet port (TELNET) on RX, RS-232 or front panel buttons
  • Slim chassis design means easy and discreet device placement
