A beautiful
way to meet.

Neat Frame packs powerful technology into an all in one compact and convenient meeting device that enables you to free up your computer for other tasks.

• 15.6? Full HD multi-touch LED

• 450NITS

• 4xDigital zoom

• 113° FOV Wide angle camera

• 50 MPCapture resolution

• Tweeter and woofer

• 3 mic array

• Bluetooth and mini jack

• Sensors for depth, light & air quality

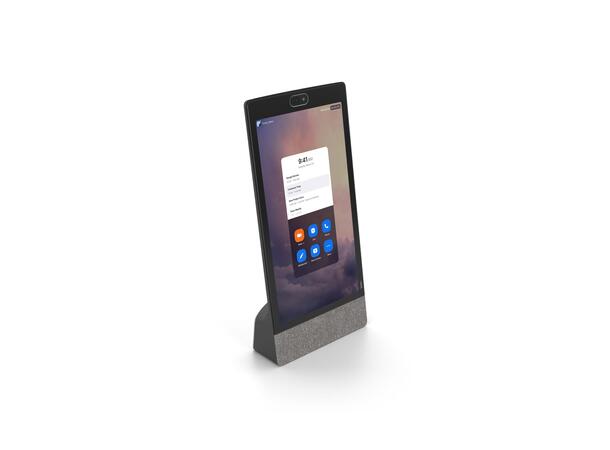

Neat Frame is a first of its kind portrait-oriented all-in-one
video device for Zoom and Microsoft Teams that fits
anywhere. Purposefully designed to cater for the
multiple new workstyles and spaces companies and
employees are now adopting, it's a super convenient
touch screen device not only attractive for working from
home or any office but also hot desking, jump rooms,
retail environments or as a virtual receptionist and all
manner of other new and exciting applications.
Neat Frame's incredibly simple to set up and use, offers
superior audio-visual quality and frees up your laptop or
desktop computer for work, making meetings feel like
less of a juggle between talking, listening and shuffling
windows of various content. In other words, it declutters
your PC layout, as well as your desk or similar work
surfaces.

General

15,6-inch capacitive multi-touch LED screen
450 NITS Screen
Resolution 1080x1920, 60Hz
9:16 aspect ratio
Anti-glare and anti-fingerprint coating
Camera LED
System LED
Ambient light sensor
Depth sensor (time-of-flight VGA 60° FOV)
Temperature sensor ^(*)
Humidity sensor ^(*)
Air Quality sensor ^(*)
Tripod mount (1/4-20 UNC threads)
Privacy shutter

Audio

Two-way loudspeaker system with minimal distortion
1 tracking mic
3 beamforming microphones angled in an end-fire array
Support for wired and wireless headphones
Hardware accelerated audio processing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation

Video

4x digital zoom
50MP capture resolution
113° horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30

Electrical and environmental requirements

100-240V ~ 50/60Hz 2.5A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Network standby: 8W
Built-in power supply

Power consumption
Idle: 10W
Idle screen off: 3,5W
In call: 14-16W

Networking & ports

WiFi
Bluetooth
AC Power (internal power supply)
USB-C
4-pin mini-jack

Privacy cover

Size & weight

Width: 8,8 inches (222,5 mm)
Height: 17,5 inches (445 mm)
Depth: 4,4 inches (111,2 mm)
Weight: 7,6 pounds (3,45 kg)

In the box

Neat Frame

Power cord (9.8 feet / 3 meters)

What you need

Internet connection
License for Zoom Rooms or Microsoft Teams ^(**)

Box weights and dimensions

Neat Frame
13.5 pounds / 6.1 kg
