| Model | iTrans DX-22-US |
| Name | XLR Dante Wallplate US version |
| Network Bandwidth | 100M |
| Control Method | Dante® Controller |
| Audio Latency | Configurable Dante® device latency
(Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Audio Formats | DANTE: Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit
LINE In: analog audio, Balanced/unbalanced connection, Max input level 24dBu MIC In: analog audio, Balanced/unbalanced connection, Max input level 50mVRMS
LINE Out: analog audio, Balanced/unbalanced connection, Max output level 18dBu |
| Output Impedance | 300 Ohm |
| Output Level (Maximum) | 18dBu (Maximum) |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Dynamic Range | > 90dB@0dBu, 1kHzA-weighted |
| Audio S/N Ratio | > 90dB@0dBu, 1kHzA-weighted |
| Audio THD+N | < 0.015% at +4dBu, 1KHz |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| ESD Protection | IEC 61000-4-2:±4kV (Contact discharge), ±8kV (Air-gap discharge) |

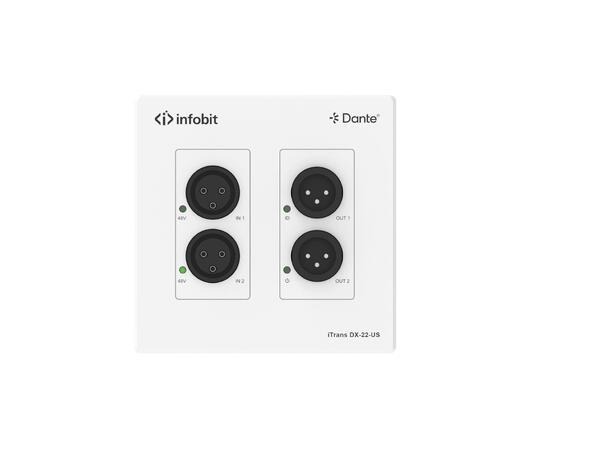

| Front Panel | 1x Power LED (Green Color)
1x ID LED (Green Color)
2x MIC Phantom Power 48V button with backlit LED (Green Color)
2x Audio In (3-pin XLR, Female)
LINE audio, Balanced/unbalanced connection, Max input level 24dBu]
[MIC audio, Balanced/unbalanced connection, Max input level 50mVRMS, 48V phantom power]
2x Audio Out [3-pin XLR, Male, analog audio, Balanced/unbalanced connection, Max output level 18dBu] |

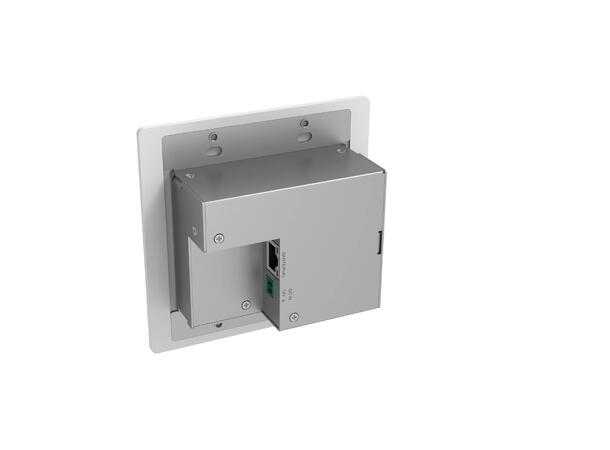

| Rear Panel | 1x DANTE [RJ45 connector, PoE] [Digital audio in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
1x DC/12V [2pin-3.5mm phoenix connector] [12VDC/ 500mA] |
| Housing | Aluminum panel + Iron chassis |
| Color | White panel + Silver chassis |

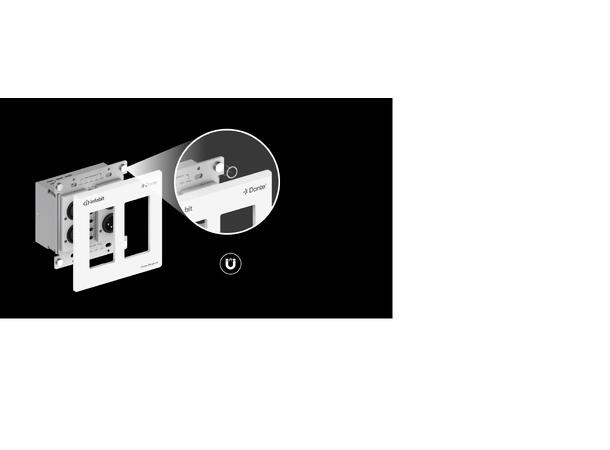

| Dimensions | Wall plate: 95mm [W] x 105mm [H] x 41.2mm [D]
Faceplate: 115mm [W] x 115mm [H] x 6mm [D] |
| Weight | Without faceplate: 359g
With faceplate: 452g |
| Power Supply | 1. PoE/PD (Class 1 IEEE 802.3af)
2. DC 12V (for the case that Switch does not support PoE) |
| Power Consumption | 3.6W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20% ~ 80% (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% (relative humidity, non-condensing) |
