Key Features

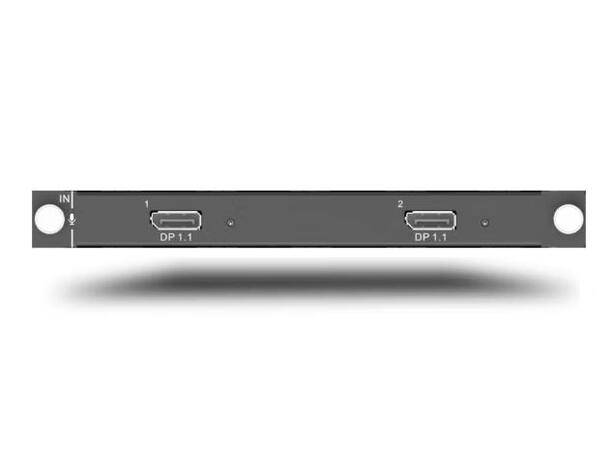

• 2x DP1.1
  • Each connector supports the maximum resolution of 3840×1080@60Hz or 3840×2160@30Hz.
  • Custom resolutions:
    • Max. width: 3840 pixels (3840×1124@60Hz)
    • Max. height: 4095 pixels (1014×4095@60Hz)
  • Supports 8-bit and 10-bit inputs.
  • HDCP 1.3 compliant.
  • Supports accompanied audio.
  • Supports 144Hz input.
  • Does not support interlaced signal input.
• Status LEDs:
  • On: The input source is accessed normally.
  • Off: No input source is accessed or the input source is abnormal.
• Specifications:
  • Weight: 550 g
  • Dimensions: 193 mm × 247.12 mm × 21.15 mm
  • Power consumption: 11.5 W
